Gira 5040 00 Manual

Switching actuator / blind actuator 16 A Standard & Komfort
Switching actuator, 6-gang / blind actuator, 3-gang Standard
Order no.: 5023 00
Switching actuator, 16-gang / blind actuator, 8-gang Standard
Order no.: 5028 00
Switching actuator, 24-gang / blind actuator, 12-gang Standard
Order no.: 5030 00
Switching actuator, 6-gang / blind actuator, 3-gang Komfort
Order no.: 5033 00
Switching actuator, 16-gang / blind actuator, 8-gang Komfort
Order no.: 5038 00
Switching actuator, 24-gang / blind actuator, 12-gang Komfort
Order no.: 5040 00
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
The device may not be opened or operated outside the technical specifications.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock on the SELV/PELV installation. Do not connect loads for mains voltage
and SELV/PELV together to the device.
For parallel connection of several motors to an output it is essential to observe the correspond-
ing instructions of the manufacturers, and to use a cut-off relay if necessary. The motors may be
destroyed.
Use only venetian blind motors with mechanical or electronic limit switches. Check the limit
switches for correct adjustment. Observe the specifications of the motor manufacturers. Device
can be damaged.
Do not connect any three-phase motors. Device can be damaged.
These instructions are an integral part of the product, and must remain with the end customer.
2 Device components
(1) Button field for manual operation
(2) Programming button and LED
(3) KNX connection
82402612

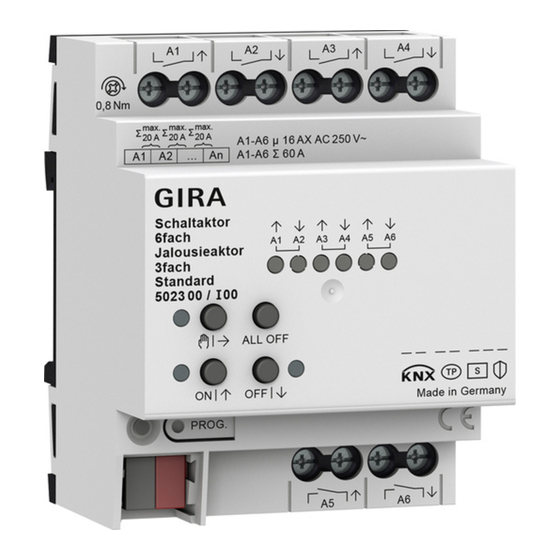

Figure 1: Device components
23.09.2020
1 / 9
