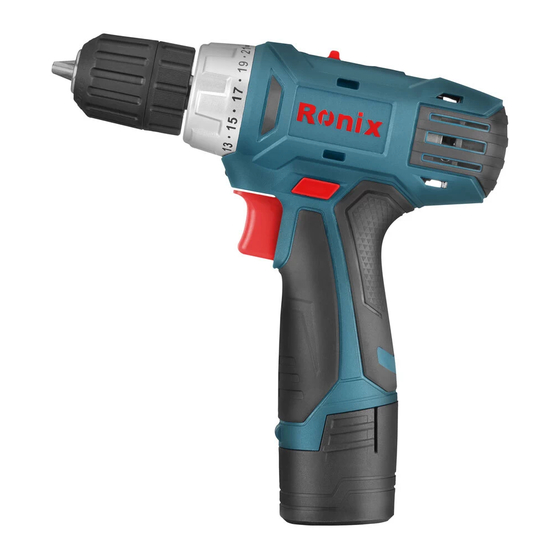

CORDLESS DRIVER DRILL
8012, 8012C, 8014, 8018

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8014 and is the answer not in the manual?

Questions and answers

Related Manuals for Ronix 8014

Summary of Contents for Ronix 8014

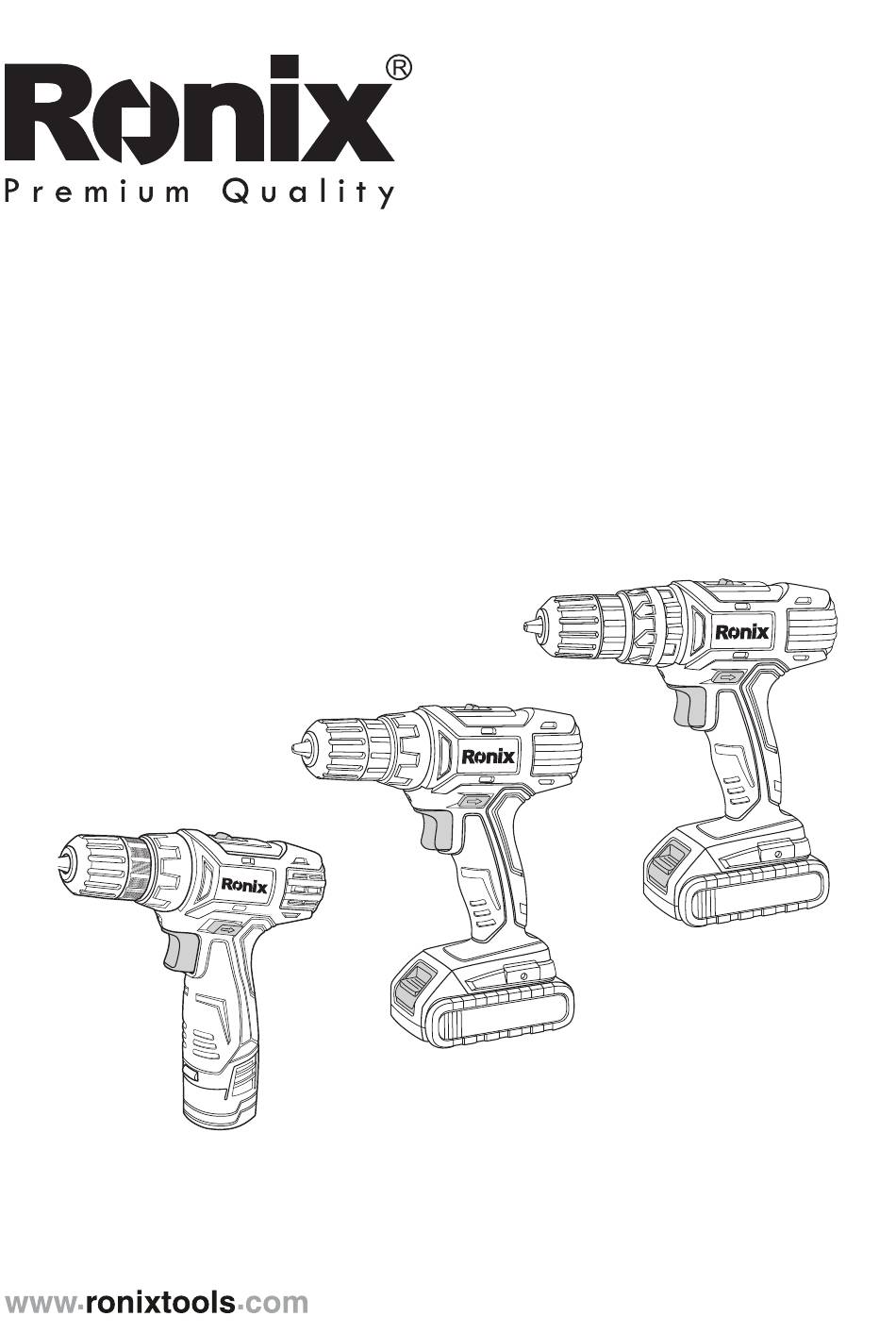

  • Page 1 CORDLESS DRIVER DRILL 8012, 8012C, 8014, 8018...

  • Page 3: Technical Specification

    TECHNICAL SPECIFICATION Model 8012 8012C 8014 8018 Battery voltage 14.4V Max. torque 21Nm 21Nm 26Nm 30Nm Net weight 1.2Kg 1.3Kg Torque setting 21+1 step 21+1step 21+1step 21+1step Chuck size 10mm No load speed 0-400/0-1350RPM Battery capacity 1.5Ah Charge time 1Hr30...
  • Page 4 dust. Power tools create sparks which may ignite the dust or fumes. -Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control. ECTRICAL SAFETY -Power tool plugs must match the outlet. Never modify the plug in any way.

  • Page 5: Personal Safety

    PERSONAL SAFETY -Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while op- erating power tools may result in serious personal injury.
  • Page 6 POWERTOOL USE AND CARE -Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. -Do not use the power tool if the switch does not turn it on and off.
  • Page 7 BATTERY USE AND CARE -Recharge only with the charger specified by the manufac- turer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. -Use power tools only with specifically designated battery packs.
  • Page 8 CORDLESS DRILL/SCREW DRIVER SAFETY WARNING! -Hold power tool by insulated gripping surfaces, when per- forming an operation where the fastener may contact hidden wiring or its own cord. Fasteners contacting a «live» wire may make exposed metal parts of the power tool live and could give the operator an electric shock.
  • Page 9 IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE -Before using battery cartridge, read all instructions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery. -Do not disassemble battery cartridge. -If operating time has become excessively shorter, stop op- erating immediately.

  • Page 10: Tips For Maintaining Maximum Battery Life

    TIPS FOR MAINTAINING MAXIMUM BATTERY LIFE -Charge the battery cartridge before completely discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power. -Never recharge a fully charged battery cartridge. Over- charging shortens the battery service life. -Charge the battery cartridge with room temperature at 10°C - 40°C (50°F - 104°F).

  • Page 11: Reversing Switch Action

    careful not to scratch the lens of lamp, or it may lower the illumination. REVERSING SWITCH ACTION This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the A side for clockwise rotation or from the B side for counter- clockwise rotation.
  • Page 12 INSTALLING OR REMOVING BATTERY CARTIRDGE -To remove the battery cartridge, withdraw it from the tool while sliding the button on the front of the cartridge. -To insert the battery cartridge, align the tongue on the battery cartridge with the groove in the housing and slip it into place.
  • Page 13 -When not operating the tool, always set the reversing switch lever to the neutral position. Switch trigger 1 SPEED CHANGE To change the speed, first switch off the tool and then slide the speed change lever to the «H» side for high speed or «L»...

  • Page 14: Adjusting The Fastening Torque

    Speed change lever ADJUSTING THE FASTENING TORQUE The fastening torque can be adjusted in 18 steps by turning the adjusting ring so that its graduations are aligned with the pointer on the tool body. The fastening torque is minimum when the number 1 is aligned with the pointer and maximum when the marking is aligned with the pointer.
  • Page 15 ADJUSTING THE FASTENING TORQUE ASSEMBLY CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. INSTALLING OR REMOVING DRIVER BIT OR DRILL Turn the sleeve counter clockwise to open the chuck jaws. Place the bit in the chuck as far as it will go.

  • Page 16: Drilling Operation

    Nominal diameter of wood screw Recommended size of pilot hole (mm) ( m m ) 2.0-2.2 2.2-2.5 2.5-2.8 2.9-3.2 3.1-3.4 3.3-3.6 3.7-3.9 4.0-4.2 4.2-4.4 OPERATION CAUTION: Always insert the battery cartridge all the way until it locks in place. If not, it may accidentally fall out of the tool, causing injury to you or someone around you.

  • Page 17: Screw Driving Operation

    an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indenta- tion and start drilling. Use a cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry.

  • Page 18: Maintenance

    switch to reverse rotation in order to back out. However, the tool may back out abruptly if you do not hold it firmly. -Always secure small work pieces in a vise or similar hold- down device. -If the tool is operated continuously until the battery car- tridge has discharged, allow the tool to rest for 15 minutes before proceeding with a fresh battery.
