Summary of Contents for Ronix 8105K

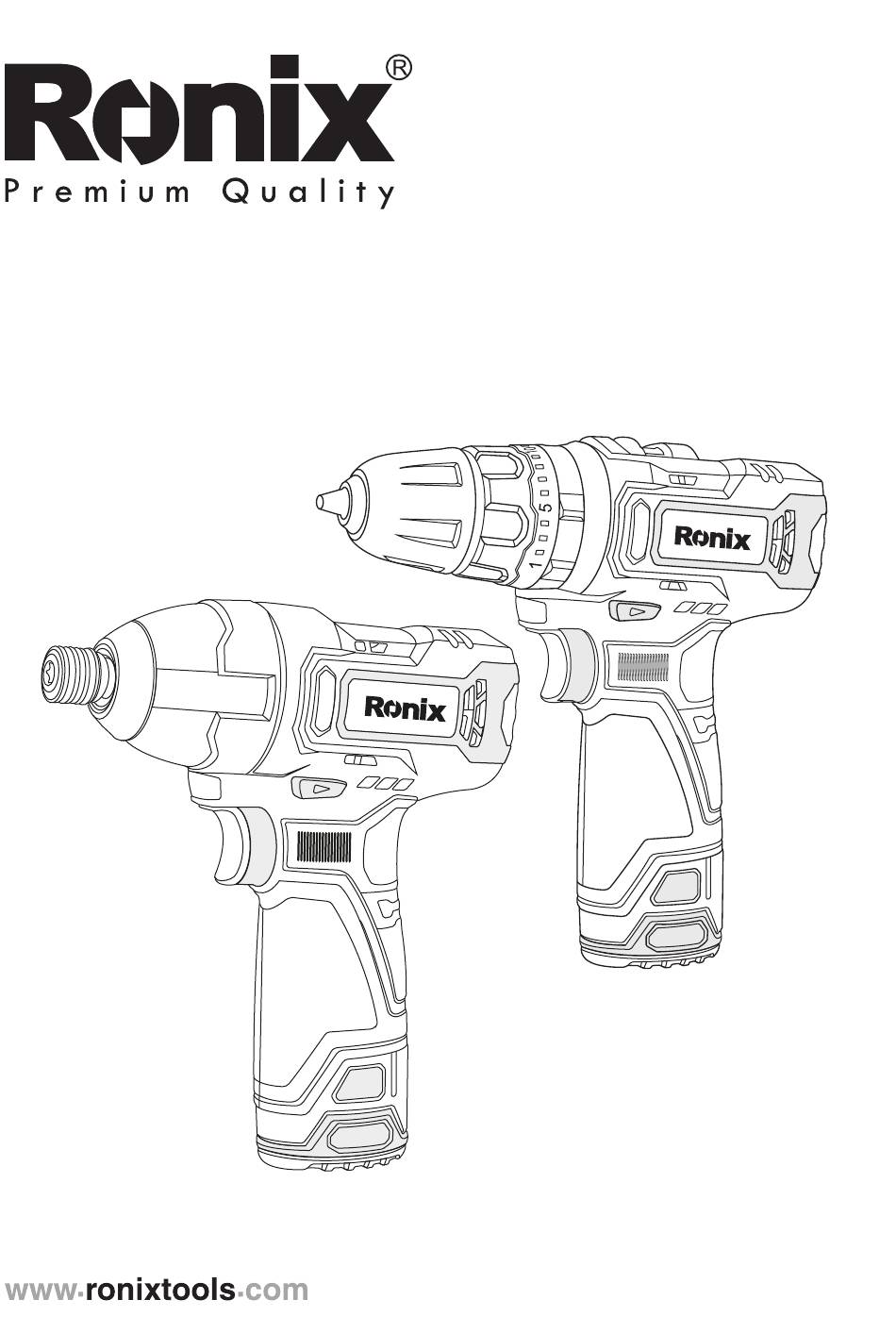

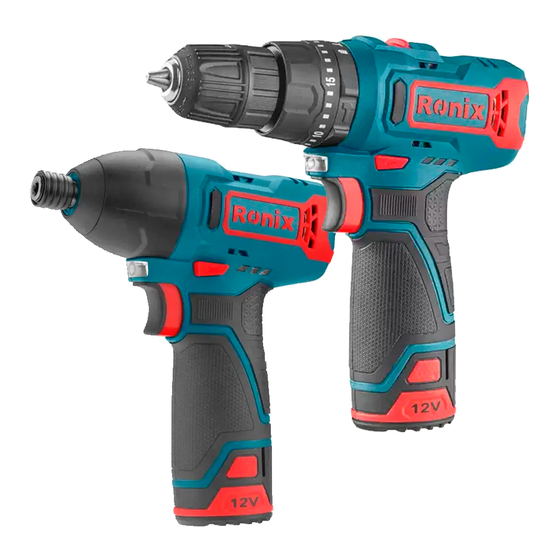

- Page 1 CORDLESS IMPACT DRILL DRIVER 12V CORDLESS SCREWDRIVER 8105K 8101K...
-
Page 2: Technical Specifications
TECHNICAL SPECIFICATIONS Model 8105K Weight 1.47Kg Battery Voltage Battery Chemistry Lithium-Ion Battery Capacity Weight (Cordless Impact Drill) 1.46Kg Chuck Capacity (Cordless Impact Drill) 1/4 inch Max Torque (Cordless Impact Drill): 120Nm No-load Speed (Cordless Impact Drill) 0-2700 RPM Model 8101K... -
Page 3: General Power Tool Safety Rules
Holder Cover Holder Charger Indica On/Off Switch Clockwise-AntiClockwise Button GENERAL POWER TOOL SAFETY RULES WARNING! -Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. -Save all warnings and instructions for future reference. -The term «power tool»... -
Page 4: Personal Safety
-Avoid body contact with earthed or grounded surfaces such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded. -Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock. - Page 5 POWER TOOL USE AND CARE -Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed. -Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
- Page 6 like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. -Under abusive conditions, liquid may be ejected from the battery; avoid contact.
-
Page 7: Tips For Maintaining Maximum Battery Life
WARNING! Do not let comfort or familiarity with product (gained from repeated use) replace strict adherence to safety rules for the subject product. Misuse or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. IMPORTANT SAFETY INSTRUCTIONS FOR BATTERY CARTRIDGE -Before using battery cartridge, read all instructions and cautionary markings... -
Page 8: Installing Or Removing Battery Cartridge
stop tool operation and charge the battery cartridge when you notice less tool power. -Never recharge a fully charged battery cartridge. Overcharging shortens the battery service life. -Charge the battery cartridge with room temperature at 100C - 400C (500F - 1040F). Let a hot battery cartridge cool down before charging it. INSTALLING OR REMOVING BATTERY CARTRIDGE -To remove the battery cartridge, withdraw it from the tool. -
Page 9: Reversing Switch Action
Use a dry cloth to wipe the dirt off the lens of lamp. Be careful not to scratch the lens of lamp, or it may lower the illumination. REVERSING SWITCH ACTION This tool has a reversing switch to change the direction of rotation. Depress the reversing switch lever from the Right side for clockwise rotation or from the Left side for counterclockwise rotation. -
Page 10: Adjusting The Fastening Torque
To change the speed, first switch off the tool and then slide the speed change lever to the «H» side for high speed or «L» side for low speed. Be sure that the speed change lever is set to the correct position before operation. -
Page 11: Installing Or Removing Driver Bit Or Drill Bit
ASSEMBLY CAUTION: Always be sure that the tool is switched off and the battery cartridge is removed before carrying out any work on the tool. INSTALLING OR REMOVING DRIVER BIT OR DRILL BIT Turn the sleeve counter clockwise to open the chuck jaws. Place the bit in the chuck as far as it will go. -
Page 12: Screw Driving Operation
When drilling in wood, the best results are obtained with wood drills equipped with a guide screw. The guide screw makes drilling easier by pulling the bit into the work piece. To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. -
Page 13: Maintenance
-Never use gasoline, benzene, thinner, alcohol or the like. Discoloration, deformation or cracks may result. NOTE: To maintain product safety and reliability repairs, any other maintenance or adjustment should be performed by Authorized Service Ronix Service Centers, always using replacement parts. RONIX CORDLESS IMPACT DRILL DRIVER...
