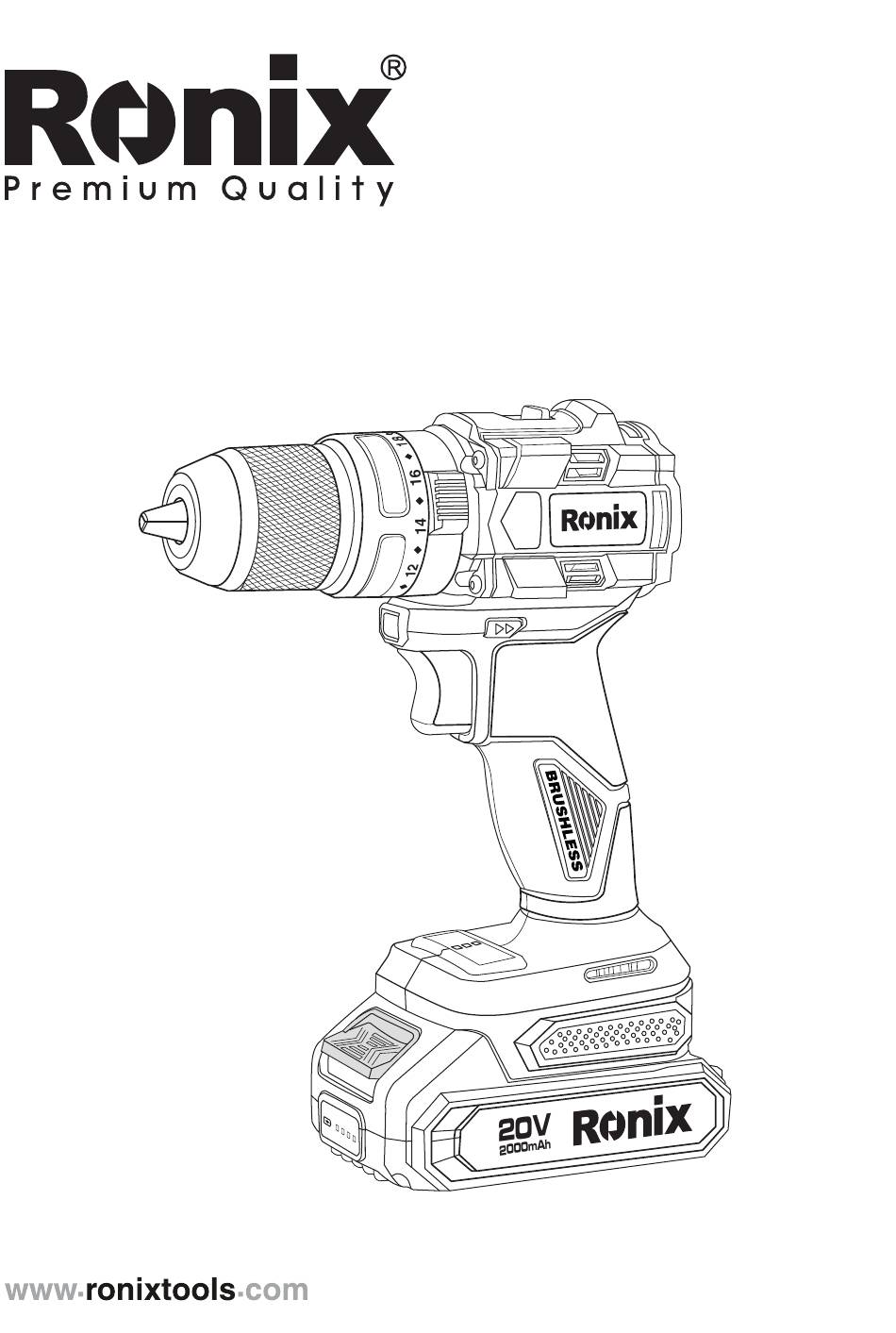

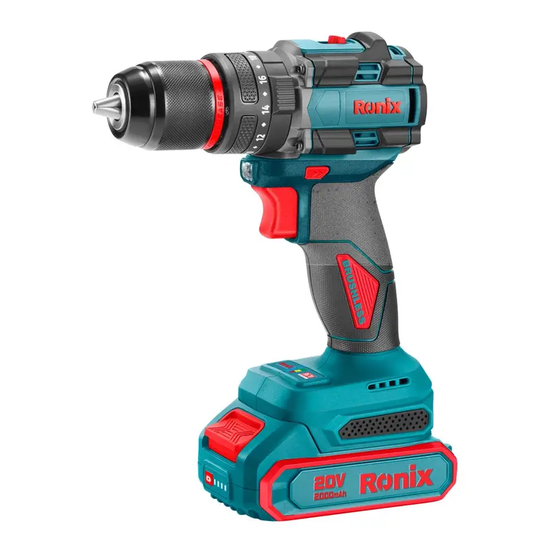

- Page 1 20V BRUSHLESS CORDLESS IMPACT DRILL 13mm 8670...
-
Page 3: Technical Specification
TECHNICAL SPECIFICATION 8670 Model Battery Type Lithium-ion Battery Voltage 20VDC Battery Capacity 2000 mAh 0-450RPM No-load Speed 0-2000RPM Impact Rate 0-30000BPM Chuck Type Keyless Chuck Chuck Size 13mm Max Torque 60N.m Wood: 35mm Max Capacity (Wood, Metal: 12mm Metal, Masonary) -
Page 4: Part List
PART LIST Chuck Function change Forward And Reverse Light Switch Button Swith Trigger Handle Indicator Button Battery Pack SAFETY WARNING GENERAL SAFETY WARNING FOR ELECTRIC TOOLS WARNING! Read all safety warnings, instructions, illustrations and regulations provided with the electric tool. failure to follow the instructions listed below may result in electric shock, fire and/or serious injury. -
Page 5: Electrical Safety
KEEP ALL WARNINGS AND INSTRUCTIONS FOR REFERENCE. The term “electric tool” in the warning refers to a commercially available (wired) electric tool or a battery-powered (wireless) electric tool. SAFETY OF THE WORKPLACE 1- keep the workplace clean and bright. Disordered and dark places can cause accidents. -
Page 6: Personal Safety
7- Electric tools will produce electromagnetic fields (EMF) that are harmless to users. However, users of pacemakers and other similar medical devices should consult the manufacturer and/or doctor of their devices for advice before operating this electric tool. PERSONAL SAFETY 1- Keep alert, pay attention to the operation and keep awake when operating electric tools. - Page 7 8- Don’t take it lightly because of the familiarity generated be frequent use of tools, and ignore the safety rules of tools. A careless action may cause serious injury in an instant. 9- Always wear goggles when using electric tools to avoid eye injury. USE AND PRECAUTIONS OF ELECTRIC TOOLS 1- Do not force the use of electric tools, but use appropriate electric tools according to the purpose.
- Page 8 stained with grease. In the event of an accident, the slippery handle does not guarantee a secure grip and control of the tool. 9- When using this tool, do not wear cloth work gloves that may tangle. Personal injury may result from cloth work gloves caught in moving parts. USE AND PRECAUTIONS OF BATTERY TOOLS 1- Only use the charger specified by the manufacturer for charging.
- Page 9 REPAIR 1- Let professional maintenance personnel use the same spare parts to repair electric tools. This will ensure the safety of the electric tools to be repaired. 2- Never repair a damaged battery pack. The battery pack can only be repaired by the manufacturer or its authorized service provider.
- Page 10 IMPORTANT SAFETY PRECAUTIONS FOR BATTERY PACK WARNING! 1- Before using the battery pack, please carefully read all the instructions and (1) the battery charger, (2) the battery, and (3) the warning sign on the products using the battery. 2- Do not disassemble or modify the battery pack. Otherwise, it may cause fire, overheating or explosion.
- Page 11 11- When discarding the battery pack, remove it from the tool and dispose it in a safe place. Please follow local regulations on how to dispose of waste batteries. 12- Use the battery only for the products specified by RONIX. Installing the battery to an incompatible product will cause fire, overheating, explosion or electrolyte leakage.
-
Page 12: Function Description
service life of the battery. 3- Please charge the battery pack at room temperature of 10 °C - 40 °C (50 °F - 104 °F). please recharge after the hot battery pack cools down. 4- Remove the battery pack from the tool or charger when not in use. 5- If the battery is not used for a long time (more than six months), please charge it. - Page 13 When removing the battery pack, press the button on the front side of the battery pack and pull the battery pack out of the tool at the same time. When installing the battery pack, align the tongue spring on the battery pack with the groove on the cover, and then push and slide it into place.
-
Page 14: Green Indicator
DISPLAYS THE REMAINING POWER OF THE BATTERY Press the stepless change switch to display the remaining battery power, and the indicator will light up for several seconds. 8670 M O D E L GREEN INDICATOR Indicator light on type... -
Page 15: Fault Prompt
FAULT PROMPT LED1 flash: undervoltage protection LED continuous full flash once: short circuit protection LED full flash for 2 consecutive times: battery pack over temperature protection. LED flashes three times continuously: controller MOS tube over temperature protection LED flashes four times continuously: motor locked rotor protection LED flashes continuously for 5 times: overcurrent protection LED continuously flashes for 6 times: protection against sudden power failure LED full flash for 8 consecutive times: overvoltage protection... - Page 16 OPERATION OF THE REVERSE SWITCH Forward and reverse switch button WARNING Be sure to confirm the rotation direction of the tool before operation. WARNING The reverse switch can only be used when the tool has completely stopped rotating. Changing the direction of rotation before the tool stops may damage the tool.
-
Page 17: Battery Pack
FREE SWITCHING OF THREE FUNCTIONS Screw out Function Horizontal drilling Function Impact Function BATTERY PACK HOW TO USE THE BATTERY PACK CORRECTLY TO PROTECT THE BATTERY PACK Protect the battery pack from moisture and moisture. The battery pack must be stored in an environment of 0 to 45 degrees Celsius. Do not leave the battery pack in the car in summer. -
Page 18: Continuous Use
is significantly shortened after charging, which means that the battery pack has been damaged and must be replaced with a new one. CONTINUOUS USE When the machine is continuously used until the battery power is exhausted, please allow the machine to cool for 15 minutes before replacing the new battery pack. - Page 19 3- The battery is only partially charged at the time of delivery. Before using electric tools for the first time, the battery must be fully charged to ensure the power of the battery. 4- The lithium battery can be charged at any time without shortening its service life.
