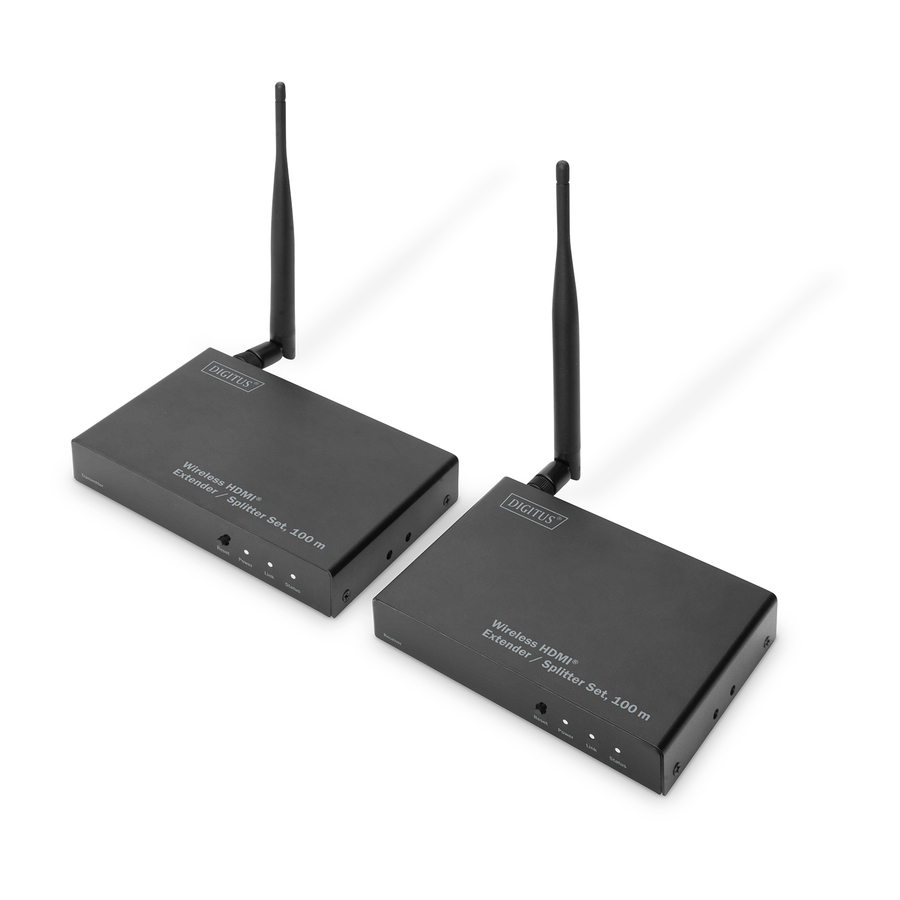

- Page 1 WIRELESS HDMI® EXTENDER / SPLITTER SET Manual DS-55314 – Set: 1x Sender Unit (TX), 1x Receiver Unit (RX) DS-55315 – 1x Receiver Unit (RX)
- Page 2 Package Content DS-55314: Main Units: 1x TX, 1x RX 2x Power Adapter (DC 5V/2A) 4x Mounting Bars 1x IR TX Cable, 1x IR RX Cable 1x 3.5 mm Male to Male Cable Introduction The Wireless HDMI® Extender / Splitter Set wirelessly transmits your high-resolution HDMI®...
- Page 3 Features Wireless transmission of HDMI® signals over a distance of up to 100 m (1:1 connection, unrestricted visibility) The set can be extended to up to 4 receiver units (DS-55315) and offers splitter functionality with additional receivers Supports point-to-point and multicast transfer ...
-
Page 4: Interfaces Introduction
Interfaces Introduction Receiver Unit: Sender Unit: Power indicator Wireless connection status Data transmission status Power supply Reset button Antenna... - Page 5 HDMI® In: Connect to input sources (PC, Notebook, Set-Top-Box, SAT Receiver, etc.) via HDMI® cable HDMI® Out: Connect to output devices (TV, monitor, etc.) via HDMI® Power Supply: DC 5V/2A In HDMI® Loop Out: HDMI® Loop Out port for local TV/display Reset: Settings reset button IR In: IR signal input port IR Out: IR signal output port...
- Page 6 Installation for DS-55314 (Set) Install mounting ears if needed Connect Sender (TX) unit with HDMI® source and IR TX cable Connect Receiver (RX) unit with HDMI® TV/display and IR RX cable Supply power to both Sender and Receiver units The Power LED on both sides will light on The Status LED flashes slowly and waiting for pairing Display of the receiver shows "Searching TX"...
-
Page 7: Connection Diagram
Connection Diagram Example 1:1 connection: Example 1:4 connection: HDMI® Cable Transmitter Receiver Distance Monitor / Beamer... -
Page 8: Specification
Make sure your input AC voltage is compliant to the adapter specifications. Only use the power adapters provided with the DS-55314, DS-55315. If you use your own adapter, make sure the power output is 5V DC, 2A... -
Page 9: Troubleshooting
Troubleshooting Problems Causes Solutions 1. No signal output after Maybe the sender and To rebuild Sender and Receiver correct connection in the receiver are not paired connection: Please follow the setup same room correctly procedure from “Installation for DS-55315 (receiver unit)” 2. - Page 10 The Adopted Trademarks HDMI®, HDMI High-Definition Multimedia Interface™, and the HDMI® logo are trademarks or registered trademarks of HDMI® Licensing Administrator, Inc. in the United States and other countries. All other trademarks, registered trademarks, or service marks are the property of their respective owners.
