Installation, Operation, Repair and Parts Manual
Hypro roller pumps are designed for agricultural and
industrial spraying and transfer of a variety fluids. These
include insecticides, herbicides, emulsives, aromatic
solvents, liquid fertilizers and many other liquids. The
economical rotary-action roller principle requires no check
valves while providing
characteristics with less friction and lower starting torque
than other pumps. Construction features include a cast-
SERIES 4001 & 4101
4-ROLLER PUMP
Max. Flow Rate: ......9 gpm (4001)
7 gpm (4101)
Max. Pressure: ..................150 psi
Max. RPM: ..........1800 rpm (4001)
2600 rpm (4101)
Ports: ........3/4" NPT Inlet & Outlet
Shaft: ....................5/8" Dia. (Solid)
1/2" Dia. (Hollow)
Continuous Operation........100 psi
Intermittent Operation........150 psi
SERIES 1700
5-ROLLER PUMP
Max. Flow Rate: ................45 gpm
Max. Pressure:.................. 200 psi
Max. RPM: ....................1000 rpm
Ports:............1" NPT Inlet & Outlet
............1-1/4" Hose Barb Included
Shaft: ................15/16" Dia. (Solid)
Continuous Operation........100 psi
Intermittent Operation........200 psi
ROLLER PUMPS
Description
positive displacement
SERIES 6500
6-ROLLER PUMP
Max. Flow Rate: ................22 gpm
Max. Pressure: ..................300 psi
Max. RPM: ....................1200 rpm
Ports: ........3/4" NPT Inlet & Outlet
..................1" Hose Barb Included
Shaft: ....................5/8" Dia. (Solid)
Continuous Op. ..........100-150 psi
Intermittent Operation........300 psi
SERIES 1500
6-ROLLER PUMP
Max. Flow Rate: ................62 gpm
Max. Pressure: ..................150 psi
Max. RPM: ....................1000 rpm
Ports: ....1-1/2" NPT Inlet & Outlet
Shaft: ................15/16" Dia. (Solid)
Continuous Operation........100 psi
Intermittent Operation........150 psi
iron, Ni-Resist or the new SilverCast™ body and rotor, 416
stainless steel shaft, sealed factor y-lubricated ball
bearings, cartridge-type lip seals of Viton, Buna-N or
leather, and versatile Super Rollers. (Super Rollers feature
the life of polypropylene and the chemical resistance of
nylon.) Rotation for all models is counterclockwise for easy
tractor PTO drive, except models 4001 and 4101 which are
clockwise. Pumps are available in reverse rotation.

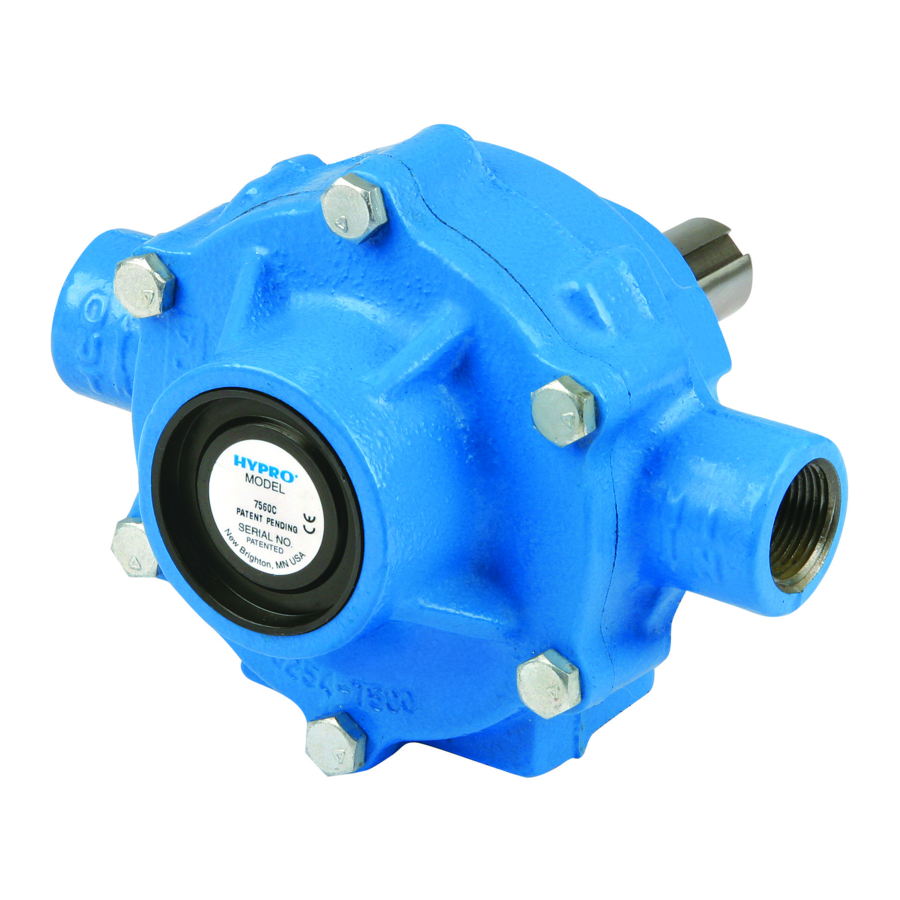

SERIES 7560
8-ROLLER PUMP
Max. Flow Rate: ................22 gpm
Max. Pressure: ..................300 psi
Max. RPM: ....................1000 rpm
Ports: ........3/4" NPT Inlet & Outlet
..................1" Hose Barb Included
Shaft: ................15/16" Dia. (Solid)
Continuous Operation........100 psi
Intermittent Operation........300 psi
Form L-0100R
SERIES 7700
7-ROLLER PUMP
Max. Flow Rate: ............22.4 gpm
Max.Pressure: ..................200 psi
Max. RPM: ......................800 rpm
Ports: ........3/4" NPT Inlet & Outlet
..................1" Hose Barb Included
Shaft: ................15/16" Dia. (Solid)
Continuous Operation........100 psi
Intermittent Operation........200 psi
SERIES 1200
4-ROLLER PUMP
Max. Flow Rate: ................74 gpm
Max. Pressure: ..................150 psi
Max. RPM: ......................800 rpm
Ports: ....1-1/2" NPT Inlet & Outlet
Shaft: ......................1" Dia. (Solid)
Continuous Operation........100 psi
Intermittent Operation........150 psi
10-04
