Installation, Operation, Repair Instructions
Hypro Centrifugal Pumps handle big, high-capacity
farm spraying jobs with ease. Use them for spraying
liquid fertilizers and other chemicals, including wettable
powder slurries for weed control. Make short work of
other farm jobs - filling nurse tanks, watering seed
beds, and transferring liquids.

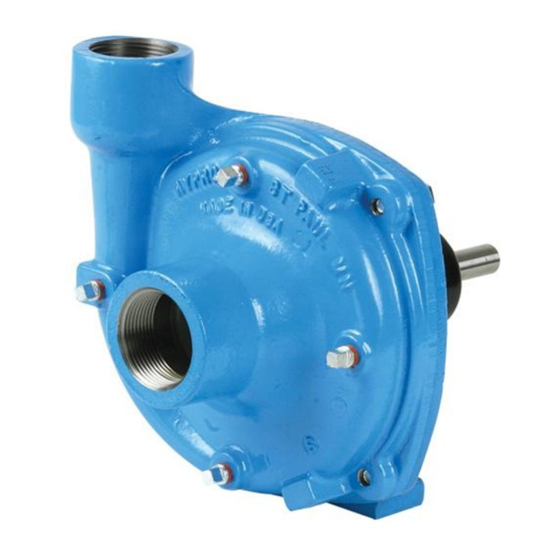

SERIES 9200
Cast Iron, Stainless Steel
Pedestal-Mount Centrifugal Pumps
SERIES 9500P
Polypropylene
Flange-Mount Centrifugal Pumps
SERIES 1500
Close-Coupled, Gas Engine-Driven
Centrifugal Pumps
Series 9200, 9500 and 1536 through 1551
Direct and Gas Engine-Driven Centrifugal Pumps
Description
Available in a variety of models, including lightweight
polypropylene (pump portion only) pumps for resistance
to corrosive liquids such as acid-based fertilizers.
This form replaces Form 300C. For individual parts
breakdowns, product outlines and performance
specifications, visit www.hypropumps.com.
See chart below for new form numbers.
Pump/Model
Number
All 9202 Series.......................300AG-1
All 9203 Series.......................300AG-2
9203C-SP
and 9263C-C-SP....................300AG-3
9203C-R-SP,
and 9263C-CR-SP .................300AG-4
9203P-S,
and 9253P-C..........................300AG-5
9204C ....................................300AG-6
9205C ....................................300AG-7
9205C-SP
and 9205C-BSP .....................300AG-8
9206C and 9206S ..................300AG-9
9510P and 9513P ................300AG-10
1536, 1537, 1538,
1539 and 1540 .....................300AG-11
1536-SP, 1537-SP,
1539-SP and 1540-SP .........300AG-12
1550, 1550-SP,
1550-BSP, 1551,
1551-SP and 1551-BSP ......300AG-13
Form 300AG
2-04
New Form
Number
Advertisement
Related Manuals for Hypro 1551-SP
Summary of Contents for Hypro 1551-SP
- Page 1 Direct and Gas Engine-Driven Centrifugal Pumps 2-04 Installation, Operation, Repair Instructions Description Hypro Centrifugal Pumps handle big, high-capacity Available in a variety of models, including lightweight farm spraying jobs with ease. Use them for spraying polypropylene (pump portion only) pumps for resistance liquid fertilizers and other chemicals, including wettable to corrosive liquids such as acid-based fertilizers.
-
Page 2: Safety Information
Protection Agency Licensing. Drive Source Installation This manual will cover the installation of the basic drive configurations available for Hypro direct-drive centrifugal pumps. Consult the manufacturer of your tractor, motor or engine for additional information. Read all instructions and general safety information before attempting to install or operate the pump. - Page 3 Belt/Pulley Drive Installation (cont'd) To figure proper diameter of pump pulley, multiply motor/engine rpm by diameter of the motor/engine pulley and divide that figure by desired pump speed. Push the belt midway between the pulleys, check the deflection Pump Motor RPM x Motor Pulley Size (d) and adjust: Pulley Size Desired Pump Speed...
-
Page 4: Operation And Maintenance
Direct Drive - Flange Mount Installation GAS ENGINE MOUNT — Models 9510P & 9513P 9510P fits most 8 hp gas engines with flange mount and 1" shafts; 9513P fits most 5 hp gas engines with flange mount and 3/4" shaft. To install pump onto gas engine, first apply anti-seize compound to gas engine shaft and to inside of pump hollow shaft. -
Page 5: Repair Instructions
Repair Instructions Recommended repair tools for use with these instructions: Always flush pump with water, or neutralizing agent, Clean-Up Of Pump Housing before servicing. 1. Using the circular bottle-type wire brush with air or hand Pump Housing Disassembly (All Models) drill, clean the discharge port, suction port and the sealing areas of the o-ring on the pump casing and mounting In most cases, seal replacement requires disassembly of only... -
Page 6: Plumbing Installation
Plumbing Installation Centrifugal Plumbing Hook-up REF. DESCRIPTION Tank Lid Vent Line #3430-0456 Jet Agitator Shut-off Ball Valves Centrifugal Pump Centrifugal Pump Control Spray Control Console Manifold Boom Valve Electromagnetic Flowmeter Compact Jet Turret Nozzle Body - 6 -... - Page 7 In addition to the proper suction plumbing, a vent line For rapid response and reliability, we recommend should be installed to assist in priming. Use a Hypro electric plunger valves be used for boom control. Vent Line Kit 3430-0456. The vent line will help to The valves should be sized accordingly to minimize prevent air locks and allows air to bleed off to the tank.
- Page 8 9202 Cast Iron and Stainless Steel Series Note: When ordering parts, give Seal Kit for Cast Iron series: Seal Kit for Stainless series: quantity, part number, description No. 3430-0332 consists of: No. 3430-0589 consists of: and complete model number. (1) Ref. 5 O-Ring (1) Ref.
- Page 9 GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP 10 PSI 20 PSI 40 PSI 60 PSI 80 PSI 100 PSI 120 PSI 140 PSI 2400 3600 4200...
- Page 10 9203 Cast Iron and Stainless Steel Series REVERSE ROTATION Note: When ordering parts, give Seal Kit for Stainless Series: Seal Kit for Cast Iron Series quantity, part number, description No. 3430-0589 consists of: No. 3430-0332 consists of: and complete model number. (1) Ref.
- Page 11 GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at 10 PSI 20 PSI 40 PSI 60 PSI 80 PSI 100 PSI 120 PSI 140 PSI 2400 3600 4200 5000...
- Page 12 Model 9203C-SP and 9263C-C-SP 20 20 Silicon Carbide Seal Kit Note: When ordering parts, give Standard Seal Kit Number quantity, part number, description No 3430-0332 consists of: No. 3430-0589 consists of: and complete model number. (1) Ref. 6 Mechanical seal (1) Ref.
- Page 13 GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI 70 PSI 80 PSI 90 PSI 100 PSI 110 PSI 120 PSI 3600 4200 5000...
- Page 14 Model 9203C-R-SP and 9263C-CR-SP Note: When ordering parts, give Standard Seal Kit Silicon Carbide Seal Kit quantity, part number, description No. 3430-0332 consists of: No. 3430-0589 consists of: and complete model number. (1) Ref. 5 Gasket (1) Ref. 6 Mechanical seal Reference numbers are used (1) Ref.
- Page 15 GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI 70 PSI 80 PSI 90 PSI 100 PSI 110 PSI 120 PSI 3600 4200 5000...
- Page 16 Models 9203P-S, 9253P-C, 9500P-S and 9553P-C Note: When ordering parts, give SEAL KIT FOR ALL MODELS No. 3430-0333 consists of: quantity, part number, description and complete model number. (1) Ref. 3 Gasket Reference numbers are used (1) Ref. 4 Mechanical Seal ONLY to identify parts in the (1) Ref.
- Page 17 GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP 10 PSI 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI 70 PSI 80 PSI 2400 3600 4200...
- Page 18 Model 9204C Note: When ordering parts, give Seal Kit (Silicon Carbide) Seal Kit for 9204C (STD) quantity, part number, description No. 3430-0589 consists of: No. 3430-0332 consists of: and complete model number. (1) Ref. 7 O-Ring (1) Ref. 6 Gasket Reference numbers are used (1) Ref.
- Page 19 GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP 10 PSI 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI 70 PSI 2400 3600 10.5 10.0 4200 10.0 10.4 LPM at...
- Page 20 Model 9205C Note: When ordering parts, give Seal Kit for 9205C quantity, part number, description No. 3430-0537 consists of: and complete model number. (1) Ref. 6 Gasket Reference numbers are used (1) Ref. 7 Mechanical seal ONLY to identify parts in the (1) Ref.
- Page 21 GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP 20 PSI 40 PSI 60 PSI 80 PSI 100 PSI 120 PSI 140 PSI 160 PSI 3000 11.4 11.7...
- Page 22 Model 9205C-SP and 9205C-BSP Note: When ordering parts, give Seal and O-ring Repair Kit quantity, part number, description No. 3430-0537 consists of: and complete model number. (1) Ref. 6 Gasket Reference numbers are used (1) Ref. 7 O-Ring ONLY to identify parts in the drawing and NOT to be used as (1) Ref.
- Page 23 GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at GPM at 40 PSI 50 PSI 60 PSI 70 PSI 80 PSI 90 PSI 100 PSI 110 PSI 120 PSI 130 PSI 140 PSI 3400 3600...
- Page 24 Model 9206C and 9206S Seal Kit for 9206C Note: When ordering parts, give Seal Kit for 9206S quantity, part number, description No. 3430-0332 consists of: No. 3430-0589 consists of: and complete model number. (1) Ref. 5 Gasket (1) Ref. 6 Mechanical seal Reference numbers are used (1) Ref.
- Page 25 GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP 10 PSI 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI 70 PSI 80 PSI 10.7 11.0 11.3...
- Page 26 Models 9510P and 9513P (CW Rotation when viewed from shaft end) 11 12 25 26 Note: When ordering parts, give Seal Kit for 9510P, 9513P quantity, part number, description No. 3430-0333 consists of: and complete model number. (1) Ref. 3 Gasket Reference numbers are used (1) Ref.
- Page 27 GPMat HP GPMat HP GPMat HP GPMat HP GPMat HP GPMat 0 PSI 10 PSI 20 PSI 30 PSI 40 PSI 50 PSI 2400 3000 3450 3600 LPMat HP LPMat HP LPMat HP LPMat HP LPMat HP LPMat 0.0 BAR 0.7 BAR 1.4 BAR 2.1 BAR...
- Page 28 Models 1536, 1537, 1538, 1539 and 1540 1538 Unassembled pump kit Pump portion only Note: When ordering parts, give Seal Kit for 1536 thru 1540 (Std.) Seal Kit for 1536 thru 1540 (Opt.) quantity, part number, description No. 3430-0332 consists of: No.
- Page 29 GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP GPM at HP 10 PSI 20 PSI 30 PSI 40 PSI 50 PSI 60 PSI LPM at HP LPM at HP LPM at HP LPM at HP LPM at HP LPM at 0.7 BAR...
- Page 30 Models 1536-SP, 1537-SP, 1538-SP,1539-SP, and 1540-SP 1538-SP Pump kit less gas engine Note: When ordering parts, give Seal Kit for 1536 thru 1540 Seal Kit for 1536 thru 1540 quantity, part number, description (Std.) No. 3430-0332 (Opt.) No. 3430-0589 and complete model number. consists of: (silicon carbide) consists of: Reference numbers are used...
- Page 31 1536-SP, 1539-SP 5.5 HP Briggs & Stratton English Standard GPM at GPM at GPM at GPM at GPM at GPM at GPM at 10 PSI 20PSI 30 PSI 40 PSI 50 PSI 60 PSI 70 PSI 1536-SP, 1539-SP Metric 5.5 HP Briggs & Stratton LPM at LPM at LPM at...
- Page 32 Models 1550,1550-SP, 1550-BSP, 1551, 1551-SP, 1551-BSP 1551-SP, 1551-BSP Self Priming pump kit less gas engine 1551 Pump kit less gas engine Note: When ordering parts, give Seal Kit for 1550 and 1551 quantity, part number, description No. 3430-0464 consists of: and complete model number.
- Page 33 1550 Based on 9.0 HP Honda English Standard GPM at GPM at GPM at GPM at GPM at GPM at GPM at 20 PSI 40 PSI 60 PSI 80 PSI 100 PSI 120 PSI 140 PSI 1550 Based on 9.0 HP Honda Metric LPM at LPM at...
- Page 34 LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Hypro’s obligation under this warranty is, at Hypro’s option, to either repair or replace the product upon return of the entire product to the Hypro factory in accordance with the return procedures set forth below. THIS IS THE EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
