Installation, Operation, Repair and Parts Manual
Hypro roller pumps are designed for agricultural and
industrial spraying and transfer of a variety fluids. These
include insecticides, herbicides, emulsives, aromatic
solvents, liquid fertilizers and many other liquids. The
economical rotary-action roller principle requires no check
valves
while
providing
characteristics with less friction and lower starting torque
than other pumps. Construction features include a Cast
Iron, Ni-Resist or Silver Cast

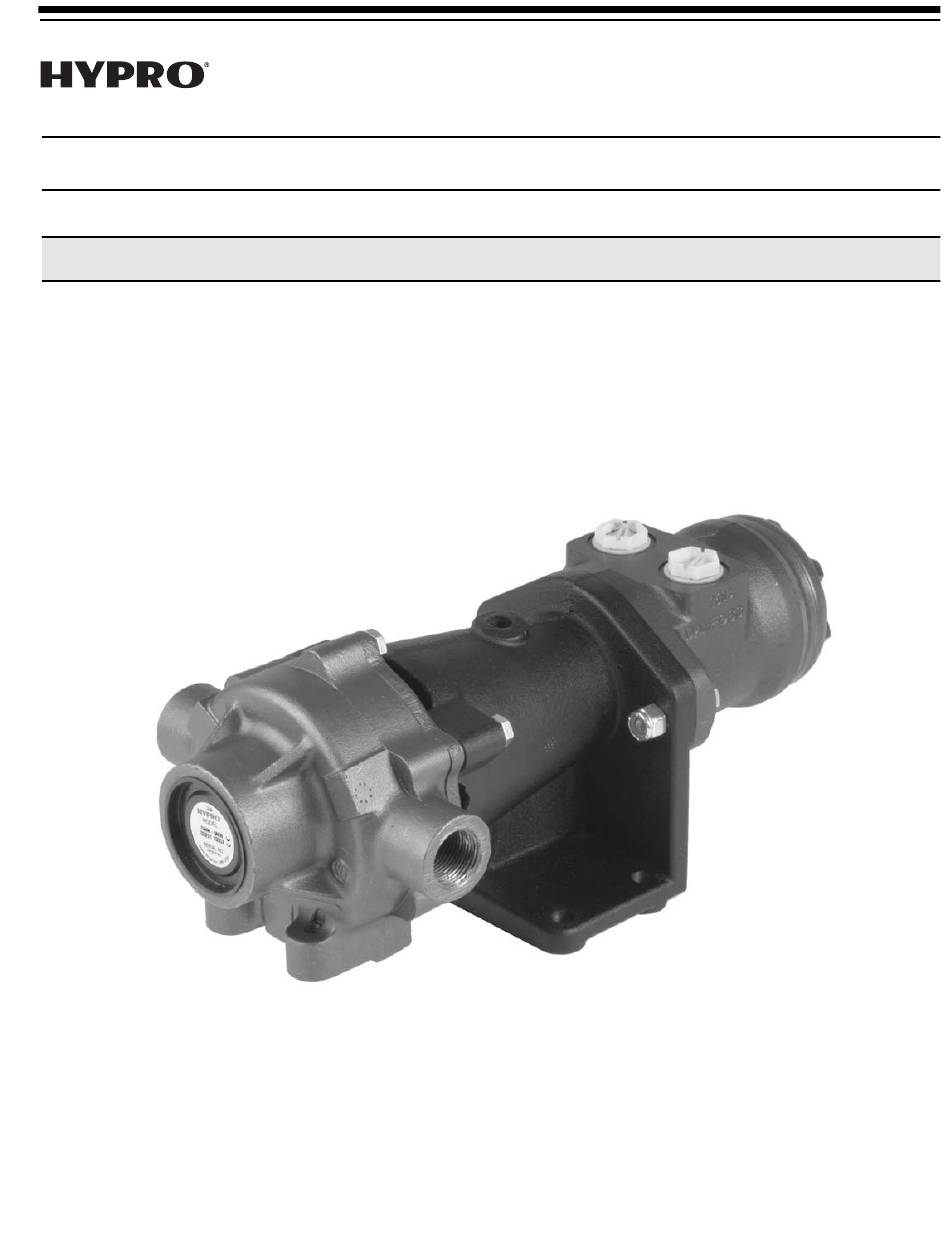

Hydraulically-Driven Roller Pumps
positive
displacement
body, Super Rotor, 416
TM
Max. Flow Rate: ..........................................20 gpm
Max. Continuous Pressure: .........................100 psi
Max. Intermittent Pressure: .........................300 psi
Max. Hydraulic Flow: ..................................12 gpm
Max. Hydraulic Pressure: .........................3000 psi
Ports: ..................................3/4" NPT Inlet & Outlet
Hydraulic Ports: ..........7/8"-14 O-ring Inlet & Outlet
Series 7560
Description
stainless steel shaft, sealed factory-lubricated ball bearings,
cartridge-type lip seals of Viton or Buna-N, and versatile
Super Rollers. (Super Rollers feature the life of
polypropylene and the chemical resistance of nylon.) The
hydraulically-driven roller pump can be conveniently
mounted anywhere and hooked up to system hydraulics,
eliminating the need for a PTO or a gas engine to drive the
pump.
SERIES 7560
8-ROLLER PUMP
Form L-1488
1/07
Advertisement
Table of Contents
Related Manuals for Hypro 7560 Series
Summary of Contents for Hypro 7560 Series
- Page 1 Hydraulically-Driven Roller Pumps Installation, Operation, Repair and Parts Manual Description Hypro roller pumps are designed for agricultural and stainless steel shaft, sealed factory-lubricated ball bearings, industrial spraying and transfer of a variety fluids. These cartridge-type lip seals of Viton or Buna-N, and versatile include insecticides, herbicides, emulsives, aromatic Super Rollers.
-
Page 2: General Safety Information
Do not pump flammable or explosive fluids such as recommends only the Silver Series castings and gasoline, fuel oil, kerosene, etc. Do not use in explosive Teflon rollers, or use one of Hypro's poly centrifugal atmospheres. The pump should be used only with fluids pumps. -
Page 3: System Information
Plug ports or seal port connections. Care of the Pump Hypro roller pumps are all carefully machined to close tolerance - high pressure operation depends on close- Rotation fitting parts. -
Page 4: Repair Instructions
Repair Instructions To Take the Pump Apart 1. Remove the mounting flange and hydraulic motor from the pump shaft. 2. File off any burrs on the pump shaft. 3. Using a screwdriver, pry off the bearing cover on the End plate and pump body 4. - Page 5 Re-Assembly Do not machine the body casting clean. A more satisfactory job can be done by hand cleaning with an Replace Seals and Bearings emery cloth. Wettable talc powder mixture (5 lbs. powder to 5 gallons water) may be used for breaking in a Carefully place the seal in the pump body with crimped side repaired pump, if pump appears to be binding.
-
Page 6: Troubleshooting
Troubleshooting Symptom Probable Cause(s) Corrective Action Pump does not prime. Leak in suction line. Check hose and fittings for leaks, and correct. Obstruction in suction line. Inspect hose for obstruction such as debris or loose inner liner. Suction hose sucked to bottom Cut a notch or “V”... - Page 7 Models 7560C-GM30, 7560N-GM30 and 7560XL-GM30 Ref. Qty. Part Ref. Qty. Part No. Req'd. Number Description No. Req'd. Number Description 1410-0111 Spacer 0154-7500C Body (Cast Iron) 1610-0005 0154-7500N Body (Ni-Resist) 0750-7500C Mounting Flange 0154-7500X Body(SilverCast) 2500-0028 Hydraulic Motor 0510-7500 Shaft 0524-2500 Coupler 1005-0004 Super Roller (Standard)
- Page 8 LIMITED TO ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Hypro’s obligation under this warranty is, at Hypro’s option, to either repair or replace the product upon return of the entire product to the Hypro factory in accordance with the return procedures set forth below. THIS IS THE EXCLUSIVE REMEDY FOR ANY BREACH OF WARRANTY.
