Guldmann GL2 Manual

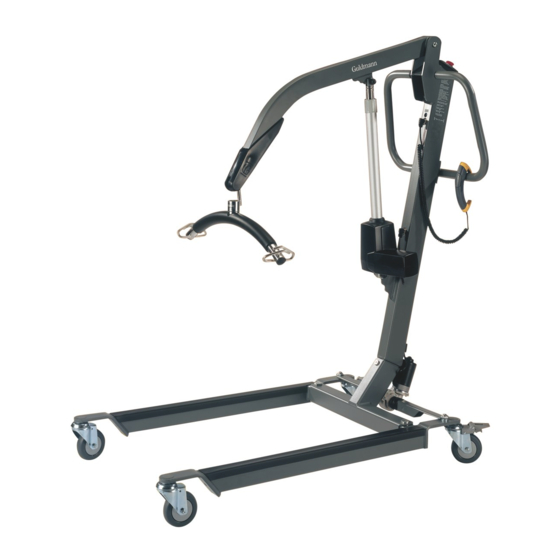

Mobile lifter
Hide thumbs
Table of Contents

Advertisement

Quick Links

GB . . . . . . . Guldmann mobile lifter
Vers . 2 .00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL2 and is the answer not in the manual?

Questions and answers

Related Manuals for Guldmann GL2

Summary of Contents for Guldmann GL2

  • Page 1 GB . . . . . . . Guldmann mobile lifter Vers . 2 .00...

  • Page 2: Table Of Contents

    Guldmann mobile lifter Item nos: 11220-xxx 11230-xxx 1 .00 . . . . . . . . . Purpose and Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.01 .

  • Page 3: Purpose And Use

    It can be used wherever elderly and handicapped people have to be lifted or moved. The hoist is equipped with Guldmann’s padded lifting hanger made of rustproof materials. It should be used at an approximate maximum of walking speed.
  • Page 4 All four straps are now ready to be mounted onto the lifting hanger. If in doubt about how to use the sling, please contact your supplier. Guldmann cannot be held responsible for any faults or accidents that may occur due to incorrect positioning of the lifting hanger, or for reasons of inade-...

  • Page 5: Important/Warning

    Exchange of lifting motor/actuator according to the manufacturer’s instruc- tions. See section 5.04, point 2 • In case of damage, do not use the hoist until authorised by qualified service staff or the Guldmann service team. 1 .04 Unpacking and preparation of the hoist Visual check of hoist Should the packaging be damaged on receipt, each part of the hoist must be carefully examined for visible defects or deficiencies.

  • Page 6: Assembling Hoist Before Use

    1 .05 Assembling hoist before use Assembling mast/chassis – electrical Loosen screw fi tted to mast. Position mast in base. When mast is in as far as it will go, tighten screw using an M5 Allen key. To dismantle, remove screw to pull mast out of base.

  • Page 7: Description Of Functions

    • Press to open legs • Press to close legs NB! Adjustment of legs is manual on Guldmann Mobile Hoist 2. BRAKES • Do not apply brakes when lifting and lowering. • Always apply brakes when parking and lifting from a...
  • Page 8 Example of a serial number label No. 11xxx-xxxx-xxxx 11220, 11230, 11240: Mobile lifter V. Guldmann A/S, Graham Bells Vej 21-23A DK-8200 Århus N, Tel. +45 8741 3100 Warning label PRIOR TO USE PLEASE READ INSTRUCTIONS FOR PRECAUTIONARY STATEMENTS AND DIRECTIONS FOR INSTALLATION AND USE.

  • Page 9: Operating Mobile Hoist Gl2 And Gl3

    2 .02 Operating mobile hoist GL2 and GL3 Hand control and indicator lamp The hoist switches on automatically when pressing the hand control, and the green indicator lamp will light up when hoist is switched on (see illustration in “Rechar- ging”...

  • Page 10: Recharging/Connecting The Hoist

    Activating the emergency lowering function Should the hoist not lower - press emergency lowering. Continuous pressure on the red button “emergency lowering” ensures that the lifting boom is lowered even though the emergency stop is activated After having applied the emergency stop or the emergency lowering functions, the fault must be rectifi ed prior to using the hoist again.

  • Page 11: Connection Of Charger

    3 .02 How to transport the hoist? The hoist can be dismantled for transport and storage, see section 3.1. 3 .03 How to package the hoist for transport? Guldmann recommends that the dismantled hoist is always transported in its original packaging.

  • Page 12: Maintenance And Storage

    The hoist should not be stored at temperatures between 15 and 25 C due to the risk of running the batteries down. These can, however, be recharged. Guldmann Service Team recommends that the hoist is connected to the char- ger during long-term storage. 4.04...

  • Page 13: Service And Life Span

    Spare parts lists and drawings are available from manufacturer or supplier. 5 .02 Battery and fuses Change of batteries and fuses should be carried out by a service engineer or by the Guldmann Service Team.

  • Page 14: Troubleshooting

    Yes recharge hoist replace charging unit and batteries if necessary If the fault cannot be corrected using the information above, please call the Guldmann Service Team. 5 .04 Service check of the mobile hoist – Allround During the inspection a service report shall be made, describing what has been checked and exchanged.
  • Page 15 2 Lifting motor/actuator • Check spline ring integrity, lifting the boom gently until end stop is detected. • According to the manufacturer’s instructions the lifting motor/actuator shall be exchanged after 11.000 cycles or at least every 5 years. 3 Test of the product, as during normal use •...

  • Page 16: Technical Specifications

    6.00 Technical Specifications A ..... 75 mm * I....1085 mm B .
  • Page 17 Lifting capacity GLHD ........

  • Page 18: Ec-Declaration Of Conformity

    Country Phone Hereby declare that Product Guldmann Mobile Hoist GL2, GL3 & GLHD Type No. XXXXX-YYYY-ZZZZ XXXXX: Reference No. of the product, YYYY: Serial No. of the product in the production year, ZZZZ: Production year was manufactured in conformity with the provisions in according to the Council Directive 93/42/EEC of 14.
  • Page 20 V . Guldmann A/S Corporate Office: Graham Bells Vej 21-23A DK-8200 Århus N Tlf. +45 8741 3100 Fax +45 8741 3131 info@guldmann.com www.guldmann.dk Guldmann Inc . 5525 Johns Road Suite 905 Tampa, FL 33634 Tel. 800 664 8834 Tel. 813 880 0619 Fax 813 880 9558 info@guldmann.net...
