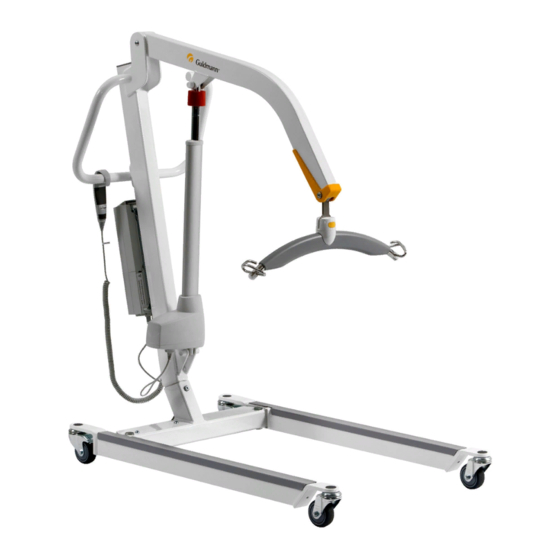

Guldmann GL5.1 Quick Manual

5
8
4
3
10
Operators check list before use
• Make sure the lifter is moving freely on its castors.
• Operate the brakes (10) to make sure they are
working.
• Lift & lower the lifting boom (2) via the control
buttons (14) on the hand control (8).
• Check that the base adjustment (15) is opening
and closing, via the hand control (8).
• Check the emergency function by pressing the
buttons (16) on the control box (3). Check the
manual function by turning the knob (7) in the
direction of the arrow.
• Check that the emergency stop button (6) is work-
ing – depress and try hand control – turn in the
direction of the arrow to release.

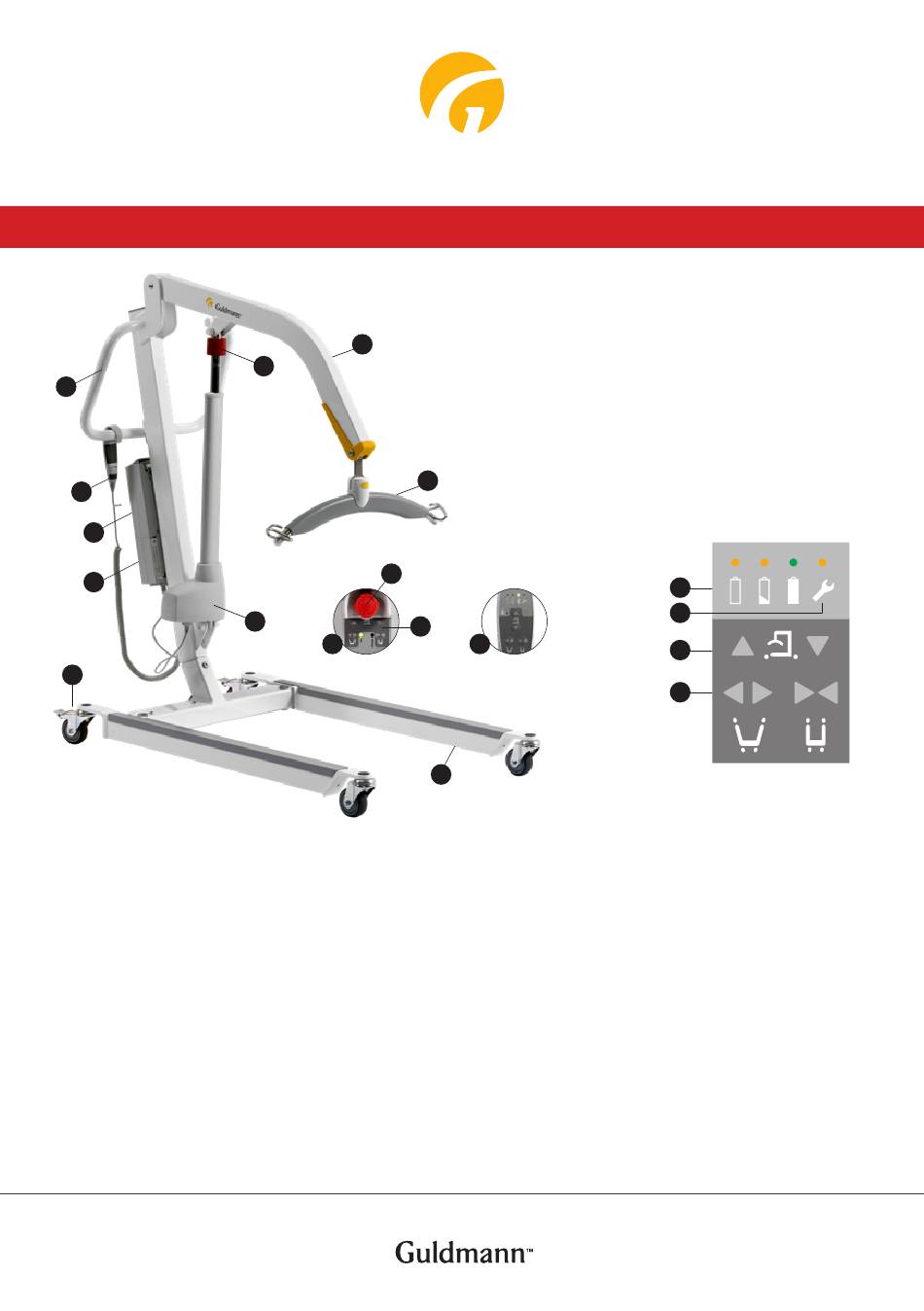

Quick Guide - GL5.1 Mobile Lifter
2
7
1
6
9
16
3
1. Hanger
2. Lifting boom
3. Control box
4. Battery
5. Push handle
6. Emergency stop
7. Emergency lowering
manual (option)
8. Hand control
8
11
• Make sure the hanger bar is free to rotate and
swing (1), and check that the hanger bar is firmly
attached to the boom (2).
Charging options
• Charger integrated in control box - plug net cable
into power socket.
• When the power is plugged in, the green LED light
on the control box lights up.
• The green and yellow diode on the control box (3)
illuminates during charging, when fully charged the
yellow diode turns off.
9. Lifting actuator
10. Brake/release
11. Chassis leg
12. Battery indicator
13. Service indicator
14. Lifting boom up/down
15. Base adjustment
16. Emergency function
up/down and base
adjustment
12
13
14
15
