Guldmann Stepless LP1 Manual

Lifting platform
Hide thumbs
Table of Contents

Advertisement

Quick Links

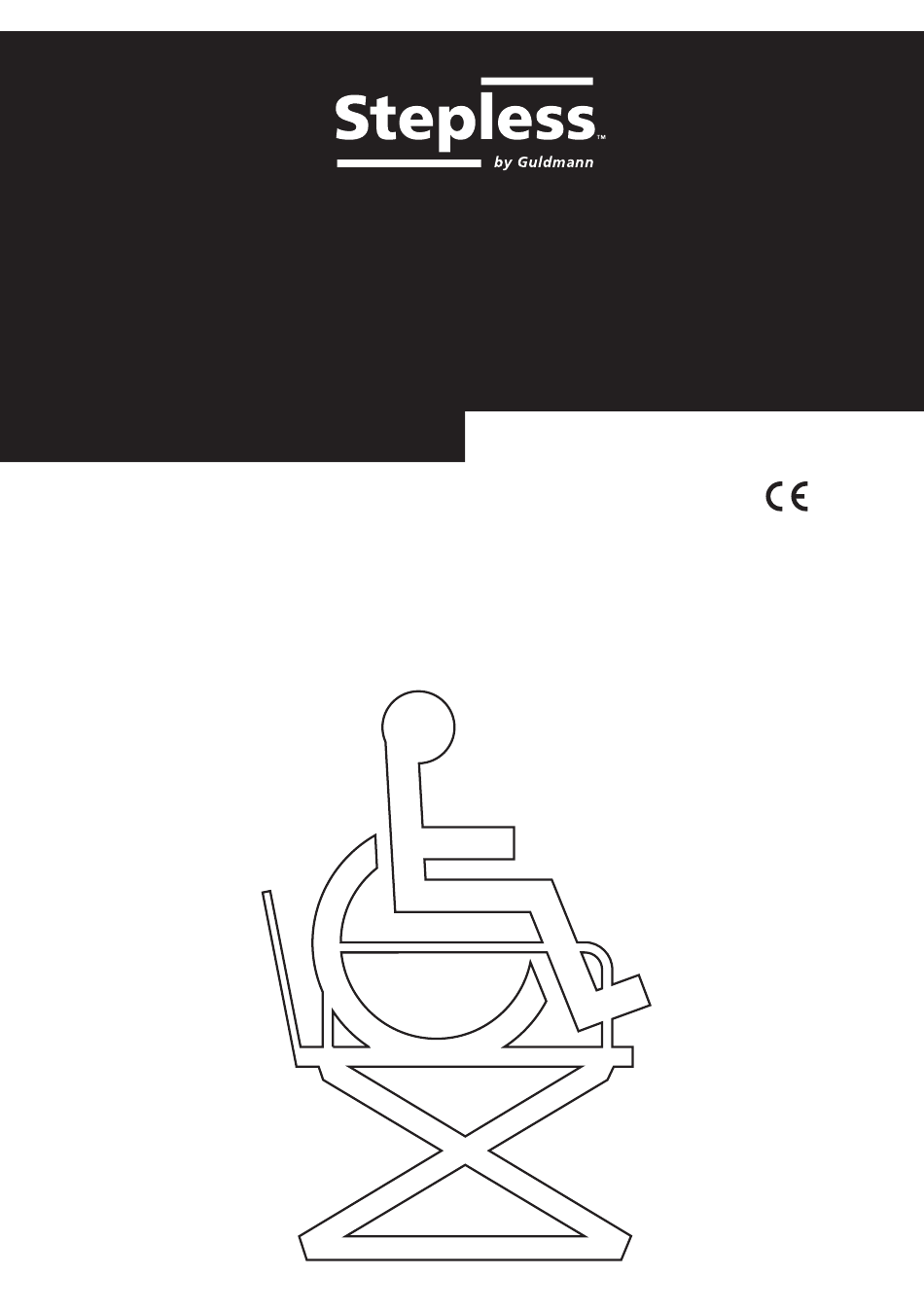

GB/US . . . . LP1 Lifting platform
Vers . 6 .00
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Stepless LP1 and is the answer not in the manual?

Questions and answers

Related Manuals for Guldmann Stepless LP1

Summary of Contents for Guldmann Stepless LP1

  • Page 1 GB/US . . . . LP1 Lifting platform Vers . 6 .00...

  • Page 2: Table Of Contents

    LP1 Lifting platform Item number: 13015-xxx 1 .00 . . . . . . . . . Purpose and Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3 1.01 .

  • Page 3: Purpose And Use

    1 .00 Purpose and Use 1 .01 Manufacturer V. Guldmann A/S Graham Bells Vej 21-23A DK-8200 Aarhus N Denmark Tel. + 45 8741 3100 Fax + 45 8741 3131 1 .02 Purpose and Use The Purpose of This Manual This manual describes the standard models with a lifting height of 580 mm.

  • Page 4: Important/Warnings

    • All the operating instructions must be read before using the product. • LP1 must be assembled by the Guldmann Service Team, or by an engineer authorised by Guldmann. • LP1 is controlled by a microprocessor pc board, which can be damaged by static electricity if touched without the necessary precautions.

  • Page 5: Safety Rules When Assembling/Servicing The Lifting Platform

    1 .05 Safety rules when assembling/servicing the lifting platform There is a danger of being crushed between the platform”s movable parts when working under the platform. Therefore, the following safety rules MUST be followed: 1. The safety chain/strap must always be used when working under the plat- form.
  • Page 6 Access ramp, fixing to the lifting platform 1. Take off all screws, washers, bushings, and nuts which are mounted on the hinges of the access ramp. 2. Place a washer and a lubricated bushing on the screw and place it in the left hinge.

  • Page 7: Assembly - Recessed Lifting Platform

    1 .07 Assembly – Recessed Lifting Platform If the lifting platform is recessed, it must be assembled by the Guldmann Service Team or by an engineer authorised/instructed by Guldmann. The assembly must follow the mounting drawings/assembly instructions. The assembly instructions shall be given to the engineer by the manufacturer...

  • Page 8: Description Of Functions

    2 .00 Description of Functions 2 .01 Labels Lifting Platform LP1 max 180 kg / 400 lbs V. Guldmann A/S Part no. 13015-xxx Graham Bells Vej 21-23A Serial no. x x x x xx x x x x DK-8200 Aarhus N 230V, 0.5A...

  • Page 9: Safety Functions

    2 .03 Safety Functions Important! Individual and specific consideration should be given to how an emergency summoning system should work. One or more persons should be appointed to be responsible for helping with the correct use of the lifting platform. The person(s) responsible should always be able to be summoned in the event of an emergency and the users should be informed of who is responsible.

  • Page 10: Accessories

    2 .04 Accessories Battery Backup Guldmann recommends a battery backup if the area is subject to losses of power. The battery backup ensures that the lifting platform can work even if the supply voltage fails. In the event of a power failure, the battery backup will provide the supply voltage, and all functions will be active/serviceable as long as there is power in the batteries.

  • Page 11: Dismantling And Transportation

    The lifting platform can be taken apart for ease of transportation and storage; lifting platform, railing and access ramp. 3 .02 Packaging During Transportation Guldmann recommends that the lifting platform always be transported in its original packaging – when taken apart. 4 .00 Maintenance and Storage 4 .01...

  • Page 12: Service And Useful Life

    This calculation of useful life is based on the correct use, cleaning and maintenance of the lifting platform, as well as an annual inspection and main- tenance by qualified personnel or by the Guldmann Service Team. After this period, the lifting platform should be assessed by qualified personnel before further use.

  • Page 13: Trouble Shooting

    Connect the plugs. 7. Is the platform overloaded? • Remove some of the load from the lifting platform. • Observe the maximum load indication of the platform. If the above points do not solve the problem, please contact the Guldmann Service Team.

  • Page 14: Technical Specifications

    6.00 Technical Specifications Dimensions LP1 outside dimensions (length/width/height) ..1167x883x480 (999) mm LP1 inside dimensions (length/width) ....1167x719 mm Lifting height .

  • Page 15: Usa And Countries Outside The Eu

    (the “Warranty Period”). If a valid claim is made during the Warranty Period for malfunction or equipment defect, Guldmann will repair or replace the equipment at no additional cost to you. Guldmann retains sole discretion as to whether the equipment will be repaired or replaced.
  • Page 16 V . Guldmann A/S Tel. +45 8741 3100 +45 8741 3131 E-mail info@guldmann.com www.stepless.com...
