Guldmann GL5 Manual

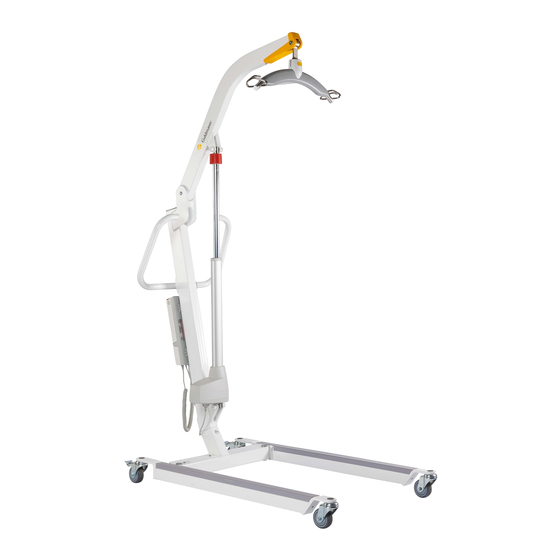

Mobile lifter
Hide thumbs Also See for GL5:
Table of Contents

Advertisement

Quick Links

See also: User Manual
GB/US . . . . . GL5 .mobile .lifter
Vers . .4 .01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GL5 and is the answer not in the manual?

Questions and answers

Related Manuals for Guldmann GL5

Summary of Contents for Guldmann GL5

  • Page 1 GB/US . . . . . GL5 .mobile .lifter Vers . .4 .01...

  • Page 2: Table Of Contents

    2.02 ..Operating GL5 mobile lifter ......

  • Page 3: Purpose .And .Use

    It can be used indoor whenever elderly and handicapped people have to be lifted or moved. The lifter is equipped with Guldmann’s lifting hanger or with another suitable hanger. It should be used at an approximate maximum of walking speed.
  • Page 4 All four straps are now ready to be mounted onto the lifting hanger. If in doubt about how to use the sling, please contact your supplier. Guldmann cannot be held responsible for any faults or accidents that may occur due to incorrect positioning of the lifting hanger, or for reasons of inade-...

  • Page 5: Important/Warning

    See section 5.04, point 2 • In case of damage, do not use the lifter until authorised by qualified service staff or the Guldmann service team. 1 .04 . Unpacking .and .preparation .of .the .lifter . Visual .check .of .lifter...

  • Page 6: Assembling Lifter Before Use

    1 .05 . Assembling .lifter .before .use Assembling .mast/chassis .– .electrical Loosen screw fitted to mast. Position mast in base. When mast is in as far as it will go, tighten screw using an M5 Allen key. To dismantle, remove screw to pull mast out of base.
  • Page 7 Lifting .hanger The lifting hanger can be mounted on the mobile lifter without the use of any tools. 1. Hold the lifting hanger in the right hand and press the yellow button using the thumb as shown. The slot on the lifting hanger’s top cover must face up.

  • Page 8: Description .Of .Functions

    2 .00 . Description .of .Functions 2 .01 . Pictograms/labels Label .on .mast .of .lifter Labels .in .addition .to .that .shown: • Max. load...
  • Page 9 Example .of .a .serial .number .label Mobile Lifter GL5 Part no. xxxxxx Prod. date yyyy-mm-dd Serial no. xxxx x IP32 Lifter IP44 Handcontrol Duty Cycle max: 10% 2 min/18 min Barcode 128C www.guldmann.com Warning .label PRIOR TO USE PLEASE READ INSTRUCTIONS FOR PRECAUTIONARY STATEMENTS AND DIRECTIONS FOR INSTALLATION AND USE.

  • Page 10: Operating Gl5 Mobile Lifter

    Adjustment .of .chassis/width .adjustment • On GL5 mobile lifter the width adjustment of the chassis is operated via the hand control. • Use max. width setting when lifting to/from wide chairs, or as necessary when lifting to/from bed, toilet and floor.

  • Page 11: Recharging/Connecting The Lifter

    After having applied the emergency stop or the emergency lowering functions, the fault must be rectified prior to using the lifter again. 2 .04 . Recharging/connecting .the .lifter Recharging . • Recharge by using the accompanying charging unit. • Recharge lifter every night or when it is not in use. This maintains the batteries well and ensures a long life span.

  • Page 12: Accessories For The Lifter

    The lifter can be dismantled for transport and storage, see section 3.1. 3 .03 . How .to .package .the .lifter .for .transport? Guldmann recommends that the dismantled lifter is always transported in its original packaging. 4 .00 . Maintenance .and .storage 4 .01 .

  • Page 13: Long-Term Storage

    4 .05 . Maintenance .which .should .be .carried .out .by .the .owner? The pivot points on the width adjustment mechanism on GL5 mobile lifter should be lubricated using thin lubricating oil every six months or as required. 5 .00 .

  • Page 14: Battery And Fuses

    5 .02 . Battery .and .fuses Change of batteries and fuses should be carried out by a service engineer or by the Guldmann Service Team. 5 .03 . Troubleshooting 1 . Does .the .green .lamp .on .the .lifter .light .up .when .the .hand .control .is . .
  • Page 15 1 . Visual .check .of .the .product • Check the product for wear and tear • Check the product for any deformity • Check that the product does not show any other dificiencies. 2 . Lifting .motor/actuator • Check the lifting motor/actuator for visible outer damage and leaking oil as well as any abnormal sound during operation.

  • Page 16: Technical .Specifications

    6 .00 . Technical .Specifications A ..... 64 mm * H min/max ..664/1967 mm * B .

  • Page 17: Ec-Declaration .Of .Conformity

    GL5 mobile lifter — chassis ........

  • Page 18: Usa .And .Countries .Outside .The .Eu

    (the “Warranty Period”). If a valid claim is made during the Warranty Period for malfunction or equipment defect, Guldmann will repair or replace the equipment at no additional cost to you. Guldmann retains sole discretion as to whether the equipment will be repaired or repla- ced.
  • Page 19 If mailing the item, pack it carefully in a sturdy carton to prevent damage. Include your Return Authorization Number, a brief description of the problem and your return address and phone number. Guldmann does not assume the risk of loss or damage while in transit, so it is recommended you insure the...
  • Page 20 V . .Guldmann .A/S Corporate Office: Graham Bells Vej 21-23A DK-8200 Aarhus N Tlf. +45 8741 3100 Fax +45 8741 3131 info@guldmann.com www.guldmann.dk Guldmann .Inc . 5525 Johns Road Suite 905 Tampa, FL 33634 Tel. 800 664 8834 Tel. 813 880 0619 Fax 813 880 9558 info@guldmann.net...
