Guldmann GLS5.1 Quick Manual

5
8
4
3
10

Operators check list before use

• Make sure the lifter is moving freely on its castors.
• Operate the brakes (10) to make sure they are
w orking.
• Lift & lower the lifting boom (2) via the control
buttons (15) on the hand control (8).
• Check that the base adjustment (16) is opening
and closing, via the hand control (8).
• Check the emergency function by pressing the
buttons (17) on the control box (3). Check the
manual function by turning the knob (7) in the
direction of the arrow.
• Check that the emergency stop button (6) is work-
ing – depress and try hand control – turn in the
direction of the arrow to release.

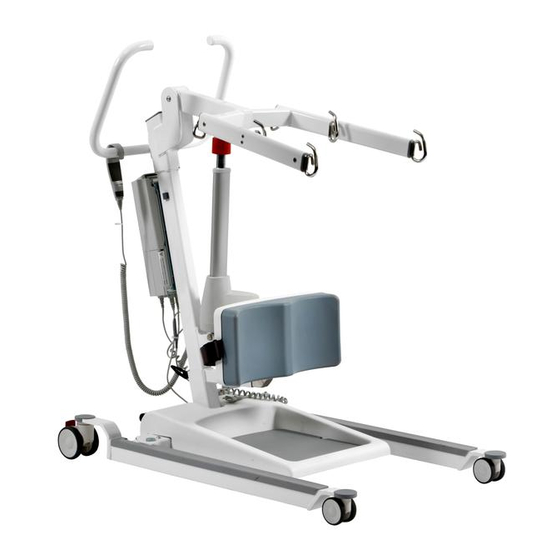

Quick Guide - GLS5.1 Active Lifter

2
1
7
9 12
3
11
1. Sling attachment
hooks
2. Lifting boom
3. Control box
4. Battery
5. Push handle
6. Emergency stop
7. Emergency lowering
manual
8. Hand control
9. Actuator
6
17
8
• Release Knee pad adjustment knobs x 2 (12)
the pad should move up / down and slide in / out,
tighten to lock.
• Make sure footplate (11) is secure and clean.

Charging options

• Charger integrated in control box - plug net cable
into power socket.
• When the power is plugged in, the green LED light
on the control box lights up.
• The green and yellow diode on the control box (3)
illuminates during charging, when fully charged the
yellow diode turns off.
10. Rear braked castor
11. Foot plate
12. Knee pad & adjust-
ment knobs x 2
13. Battery indicator
14. Service indicator
15. Lifting boom up/down
16. Base adjustment
17. Emergency function
up/down and base
adjustment
13
