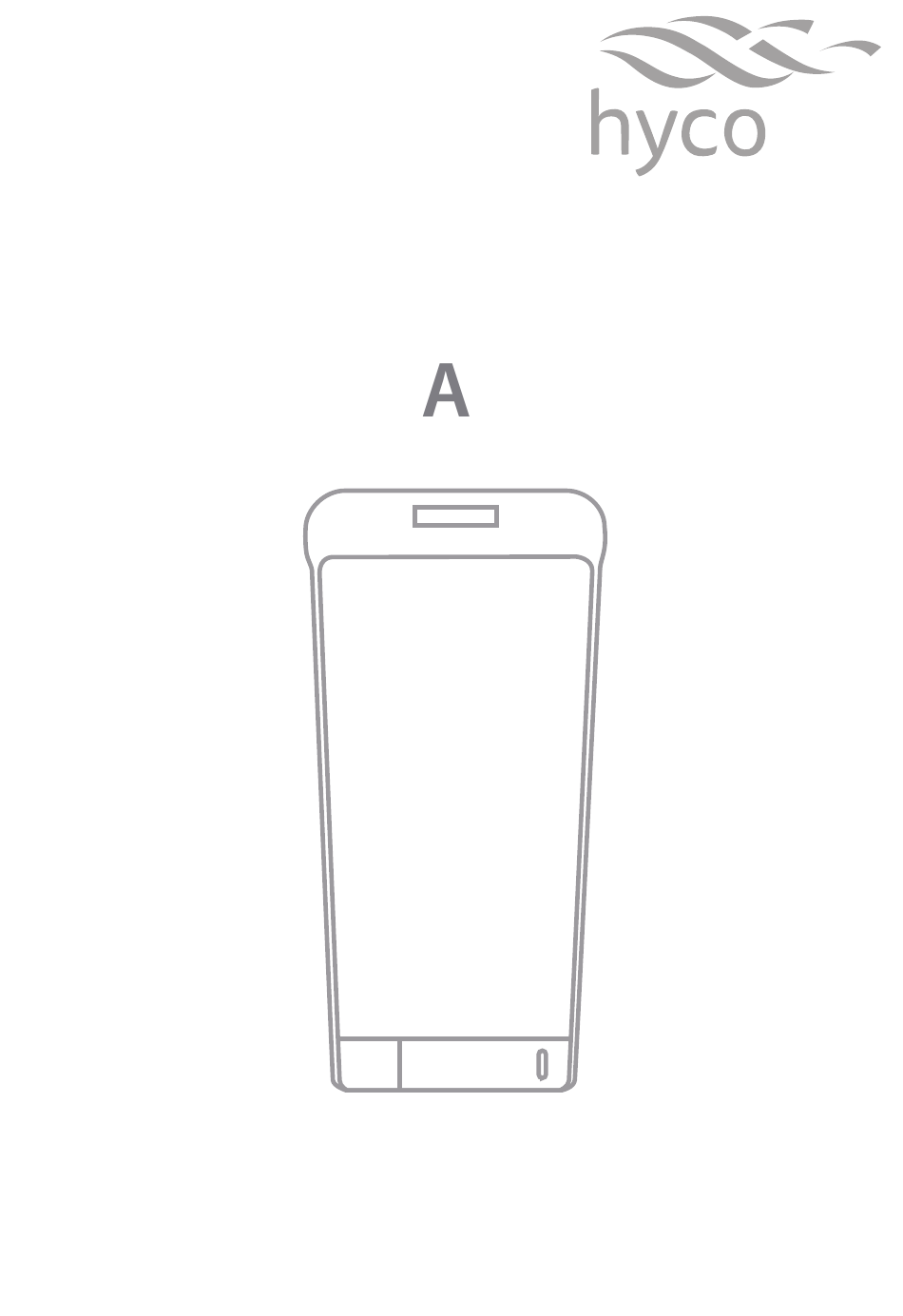

- Page 1 Product Instruction Manual BL DE BLADEW, BLADES Hand Dryer Version 3.2 Jan 2015 v17.8,1...
-
Page 2: Important Safety Points
Thank you for purchasing a Hyco Blade hand dryer. Please ensure you read and understand these instructions to ensure safe installation and operation. The Blade is a hands in, high speed, automatic hand dryer that is suitable for a variety of public washroom applications. -
Page 3: Installation
2. Installation To avoid malfunction, do not install the appliance in the following environments: Temperatures below -10 C or above 40 C. Locations exposed to direct sunlight or strong light. • Select a suitable position to mount the dryer. • Decide the height of the mounting bracket install. Recommended heights from the floor to the top of the mounting bracket are: •... - Page 4 • Make provisions for the electrical wiring (if required) prior to hanging the appliance onto the mounting bracket. • Make electrical connection as follows: Green/Yellow earth wire to the terminal marked “ E” or Brown/Red live wire to the terminal marked “L” Blue/Black neutral wire to the terminal marked “N”...
- Page 5 • When electrical connection is complete, ensure the power cable is held firmly by the cable clamp and refit the terminal block cover. figure 3 Power Cable supply clamp Terminal block Earth wire Empty product • Before mounting the dryer onto the mounting bracket, remove the air filter and drain tank (see figure 4) figure 4 Drain tank...
- Page 6 • Offer the dryer up to the mounting bracket and ensure it engages into the slots correctly. • Secure the dryer in its final mounting position using the two locking screw holes located at the base of the appliance (see figure 5). •...
-
Page 7: Operating The Dryer
3. Operating the dryer Settings selection • The heater has two settings which should be decided on installation: • Hi or Low speed airflow • Heating element On/Off • The switches are located behind a door at the lower left corner of the dryer. The drain tank must be removed to gain access. -
Page 8: Maintenance
Hand dryer usage Shake of excess water from hands into the sink/basin prior to inserting them into the dryer. figure 7 Stretch out both Pull them back Repeat as required hands and insert them slowly. until hands are dry. all the way in. The dryer will stop working after 25seconds of continuous operation. - Page 9 • Routinely check the level of the drain tank and empty as often as required. figure 8 Fill level Cover Drain tank Drain tank • To clean the drain hole, pour a small figure 9 amount of water down it and clean with the pipe cleaner provided.
-
Page 10: Specifications
5. Specifications BLADEW BLADES Voltage 220-240V ac 220-240V ac Power 1650-2050W 1650-2050W Ingress rating IPX4 IPX4 Finish 73db White Silver Weight 9.1kg 9.1kg 215mm 300mm 90mm 700mm 638mm 170mm 278mm... - Page 11 6. Guarantee and service policy This product is covered by a standard parts or replacement warranty for a period of three years from the date of purchase. If there is a manufacturing defect within the warranty period we will send spare parts, repair and return the unit or, at our discretion, supply a replacement product.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
