Summary of Contents for Hyco Jetstream Blade JETB190W

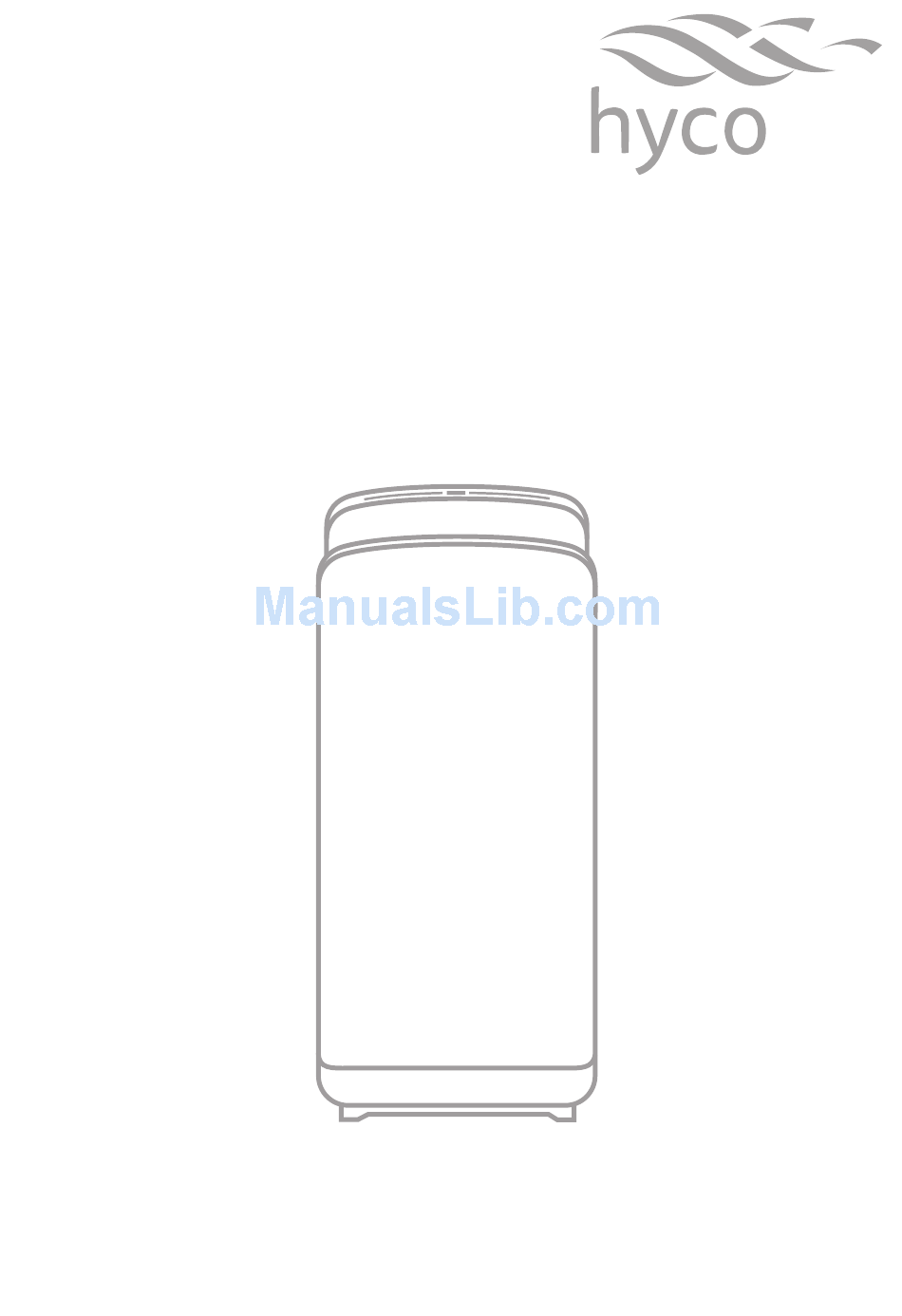

- Page 1 Product Instruction Manual Jetstream Blade JETB190W 1.9kW Automatic Hand Dryer V16.4/2 Version 3.2 Jan 2015...
- Page 2 Please read these instructions before commencing installation. Upon completion of installation ensure the instructions are left with the user/maintainer of the product. The Jetstream Blade features a modern stylish design and offers ultra-fast hand drying performance whilst saving energy through fast drying times. The Jetstream Blade features: •...
-
Page 3: Important Safety Points
1. Important safety points • Do not proceed with installation if there is any sign of damage to the product. • The product should only be connected to a supply that meets the specifications detailed on the rating label. • Electrical installation should be carried out by a qualified electrician in accordance with the latest edition of the IEE wiring regulations. -
Page 4: Installation
2. Installation Wall mounting • Ensure that the surface selected for mounting the hand dryer is suitable for the weight of the product. Select a suitable location for the hand dryer; ensure minimum distances from any surfaces are observed as shown in the diagram below. 100mm 200mm... - Page 5 150mm min 750mm min Ensuring the bracket is level and adheres to the parameters shown above. Mark the five holes as per the diagram. The two hanging lugs should be presented at the top of the bracket when fixed to the mounting surface. Always ensure there are no hidden cables or pipes before commencement of drilling.
- Page 6 Electrical • The product should only be connected to a supply that meets the specifications detailed on the rating label. • Connection to the fixed wiring of the property should be made by means of a double poled switch rated for 13amps. Electrical connections should be made as follows: Green/Yellow earth wire to the terminal marked ‘E’...
-
Page 7: Operation
3. Operation The hand dryer has a number of parameters that can be fixed on installation. To access the controls open the panel located on the left hand upper corner of the heater. The hand dryer can operate at two power outputs: •... - Page 8 The heater will display the current temperature of the room when in standby mode. When operated a 10 second count down will be displayed. Shake off excess water from wet hands. Place hands into the hand dryer to activate the sensor and start the motor Slowly raise hands out of the dryer to expel water from the finger tips Repeat until hands are dry.
-
Page 9: Maintenance
4. Maintenance • Always isolate the hand dryer from the mains supply before commencing any cleaning or maintenance. • Do not use abrasive chemicals or materials to clean the hand dryer. • Cleaning and maintenance should not be undertaken by children •... -
Page 10: Specifications
5. Specifications JET190W Voltage/Frequency 230v ~50Hz Water proof rating IPX1 Total Power 1900W Current Weight 8.2kg Dimensions H687 x W300 x D225mm Air speed 85-95m/s Dry time 5-10seconds Motor power 800W Heating element power 1100W Sound level 70dB... - Page 11 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
