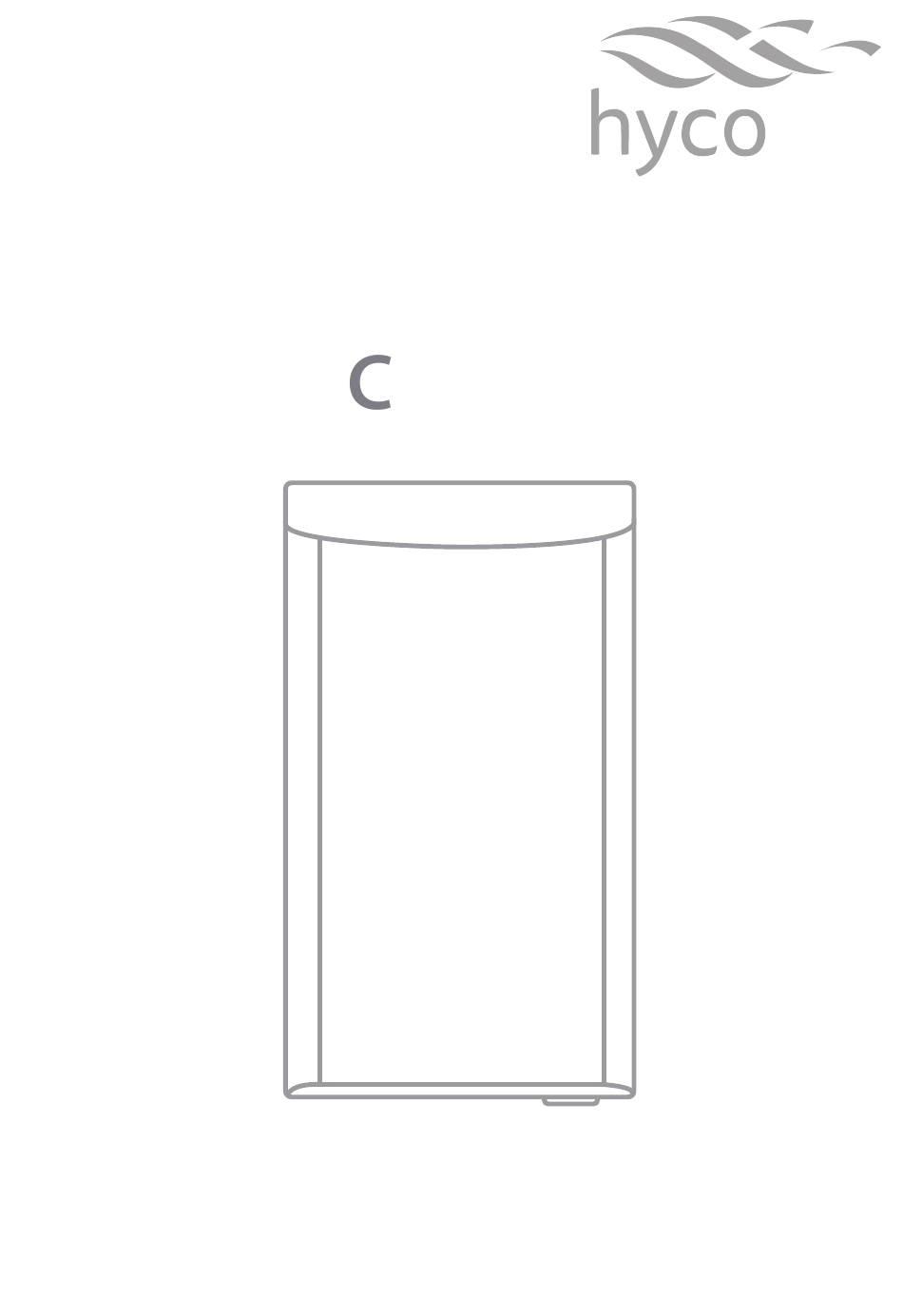

- Page 1 Product Instruction Manual urve CURVEW (white) & CURVEBSS (brushed stainless steel) 0.9kW Automatic Hand Dryer Version 3.2 Jan 2015 V17.9/1...

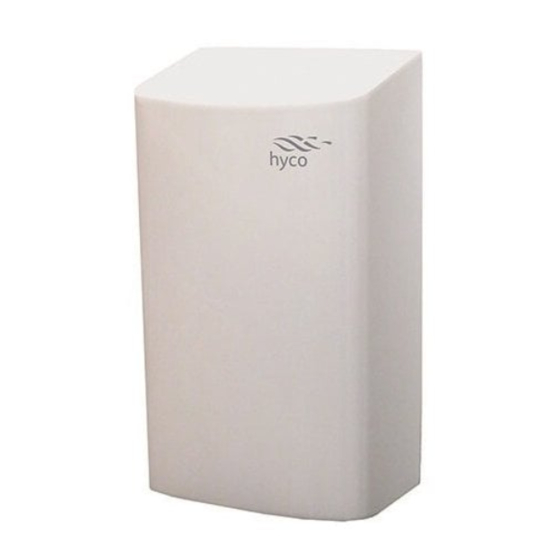

- Page 2 Thank you for purchasing a Hyco Curve hand dryer. Please ensure you read and understand these instructions to ensure safe installation and operation. The Curve is a modern, slimline hand dryer that is suitable for a variety of washroom applications.
- Page 3 2. Installation To avoid malfunction do not install the appliance in the following environments: Temperatures below -10 C or above 40 C. Places in direct sunlight or strong light. Within 40cm of any surface beneath the air outlet. • When selecting a suitable location and surface for installation of the dryer, consider the following: •...
- Page 4 • Make provision for the electrical wiring at this stage, the template details the position for concealed wiring entry into the dryer. • Using the supplied tool, remove the two security screws located at the base of the dryer. • Lift the cover away from the dryer by first pulling the cover down, to release from the lugs located at the top, and then away from the main body of the dryer.
- Page 5 • If the electrical connection is surface mounted, ensure the cable is secured to the body of the dryer using the supplied cable clamp and then exits the dryer via the outlet at the bottom right corner of the dryer. Fit the supplied rubber grommet to protect the cable from being damaged by the edges of the cover.
- Page 6 4. Dryer adjustments and Maintenance Always disconnect the electrical power supply before commencing maintenance or adjustment. • It is possible to adjust both the sensing range of the dryer and the motor speed. • Using a small cross headed screwdriver, locate the small blue and yellow cross head screw components as shown below, via the two small holes beneath the air outlet of the dryer.
- Page 7 5. Specifications CURVEW CURVEBSS Voltage/frequency 230V~/50Hz 230V~/50Hz Power 0.9 kW 0.9 kW Ingress Protection Finish White Brushed Stainless Steel Weight 3.3kg 3.3kg 268mm 100mm 152mm...
- Page 8 If you experience a problem with this product you should first contact our service department on 01924 225 200 before taking any further action. Experience has shown that issues can often be resolved without the need to return or uninstall the product. Hyco Manufacturing Ltd Normandy Court Express Way...
