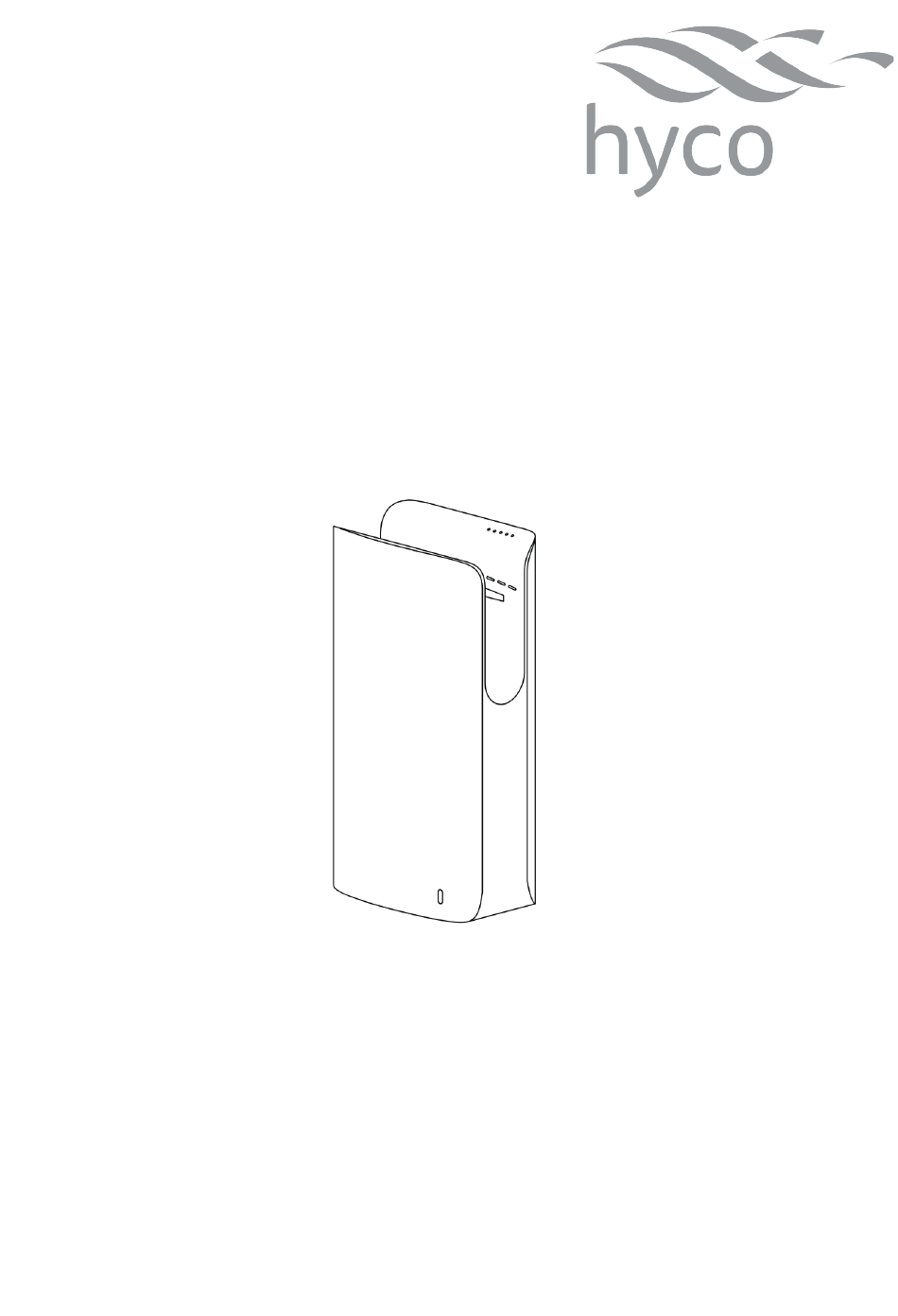

- Page 1 Product Instruction Manual Blade BLADESL , BLADEWH (Silver) (White) Automatic Hand Dryer v23.1.1...
-
Page 2: Important Safety Points

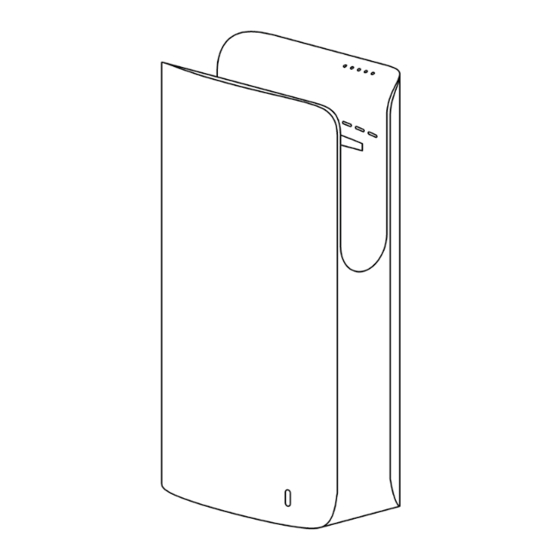

Overview Thank you for purchasing a Hyco Blade hand dryer. The Blade is a hands in, high speed, automatic hand dryer that is suitable for a variety of public washroom applications. It gives fast dry times, low sound levels and the integral HEPA filter ensures hygienic operation. - Page 3 The appliance is intended for drying hands only; it should not be used for any other purpose. To avoid malfunction, do not install the appliance in the following environments: -Temperatures below -10° C or above 40°C. -Locations exposed to direct sunlight or strong light. Ensure the mounting surface is suitable for the weight of the product.
-
Page 4: Prepare For Mounting
1. Installation Preparation Select Mounting Position To avoid malfunction, do not install the appliance in the following environments: - Temperatures below -10 ˚C or above 40˚C. - Locations exposed to direct sunlight or strong light. Ensure there are no hidden cables or pipework before commencing any drilling. •... -
Page 5: Electrical Connection
2. Electrical Connection This appliance should only be installed and maintained by a competent person in accordance with any local electrical regulations. The appliance must be permanently connected to the electrical supply through an appropriately rated isolating switch with a contact separation in all poles. •... -
Page 6: Installation
3. Installation • Before mounting the appliance onto the mounting bracket, remove the air filter and drain tank (see Diagram 2). • Offer the appliance up to the mounting bracket and ensure it engages into the slots correctly. • Secure the appliance in its final mounting position using the two locking screw holes located at the base of the appliance. -
Page 7: Operation
4. Operation • Remove the drain tank to access the power switch which is located at the front, bottom left of the hand dryer. Ensure power switch is on. • The appliance has intelligent temperature control - heating element switches off when ambient room temperature is above 25°C. -
Page 8: Cleaning And Maintenance
5. Cleaning and Maintenance This appliance should only be installed and maintained by a competent person in accordance with any local electrical regulations. Isolate the electrical supply before undertaking any maintenance work. Allow the appliance to cool down before undertaking any maintenance. Do not use abrasive materials or chemicals to clean this appliance. -
Page 9: Advanced Information
6. Advanced Information This appliance should only be installed and maintained by a competent person in accordance with any local electrical regulations. The appliance must be permanently connected to the electrical supply through an appropriately rated isolating switch with a contact separation in all poles. •... -
Page 10: Specification
7. Specification Model BLADESL BLADEWH Power 1.6kW 1.6kW Voltage 230V~ 230V~ Electrical connection Class II Class II IP rating IP24 IP24 Finish Silver White Weight 5.8kg 5.8kg Dimensions (h x w x d) 556 x 296 x 175 mm 556 x 296 x 175 mm 8. - Page 11 9. Guarantee and Service Policy This product is covered by a standard parts or replacement warranty for a period of three years from the date of purchase. If there is a manufacturing defect within the warranty period we will send spare parts, repair and return the unit or, at our discretion, supply a replacement product.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
