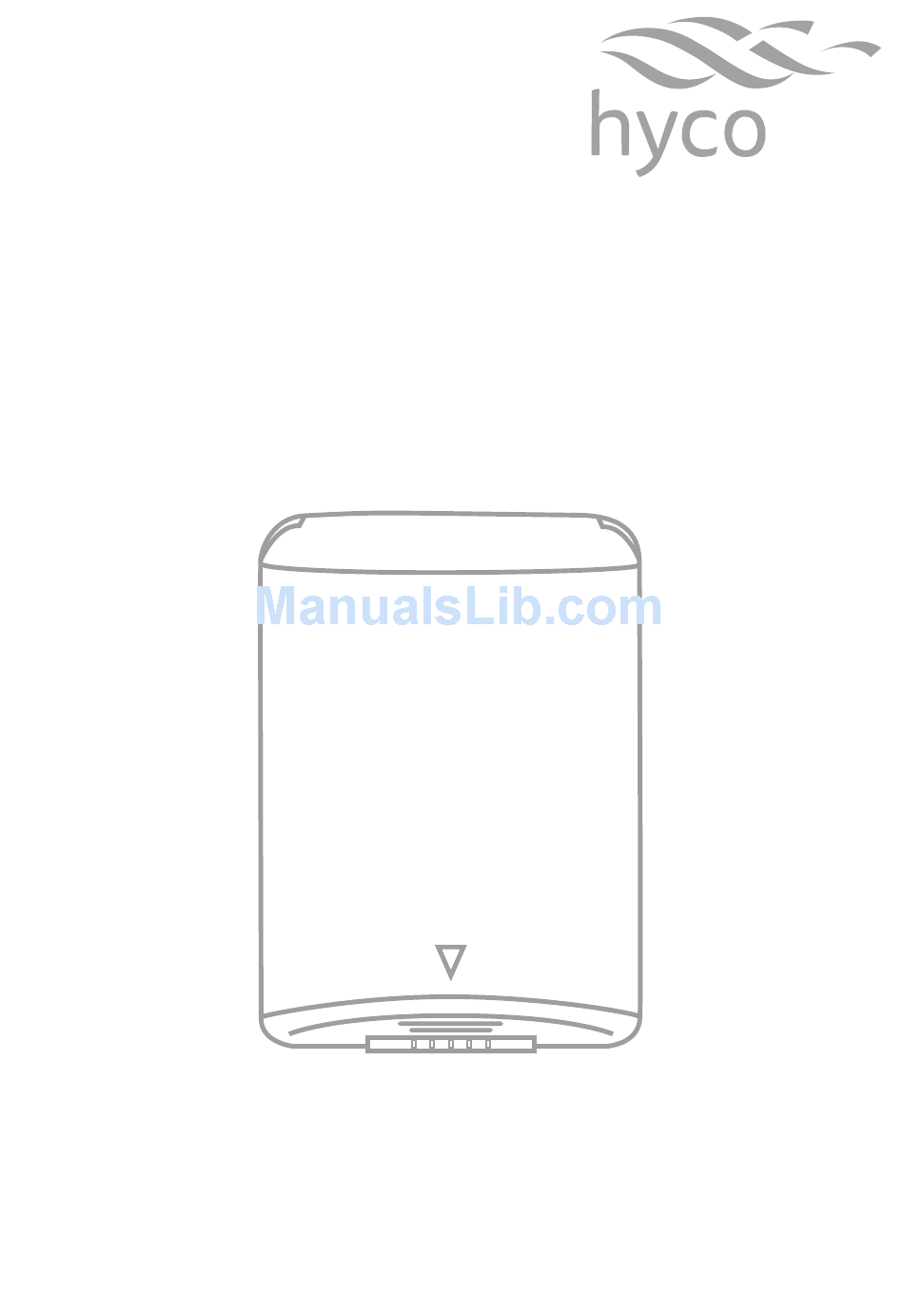

- Page 1 Product Instruction Manual Jetstream 1600 JET1600 (white) & JET1600BSS (brushed stainless steel) 1.6 kW automatic hand dryer Version 3.2 Jan 2015 V15.6/2...
-
Page 2: Important Safety Points
Thank you for purchasing the Hyco Jetstream hand dryer. The JET1600 is suitable for many public washroom applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. Please read and understand these instructions before commencing installation, and leave them with the user when installation is complete. -
Page 3: Installation
2. Installation Wall Mounting The hand dryer must be fixed out of reach of a person taking a bath or shower. • Place the supplied template against the wall at the desired height (see mounting height recommendations) and mark locations of 4 mounting holes and cable entry at knockout (KO) location. -
Page 4: Operation
3. Operation • Shake excess water from hands. • To activate the hand dryer, place your hands underneath the air outlet to operate the sensor. • Rub hands together lightly and rapidly. • The dryer will stop automatically 1 second after removing hands. •... -
Page 5: Maintenance
4. Maintenance Periodic cleaning of the unit is recommended to ensure optimum performance. • Disconnect the electrical supply. • Remove the two cover-mounting screws. • Remove the cover. • Clean all dust lint from the interior of the dryer. • Clean the exterior of the unit using a soft, damp cloth. Do not soak; never use abrasives to clean the cover. -
Page 6: Specifications
5. Specifications Voltage 230V~50Hz Power 1.6kW Air speed (adjustable) 75 - 100m/s Air volume (adjustable) 87 - 116m3/h Sound level 77dB IP Rating IPX1 Weight 5.8kg 287mm 205mm 180mm... -
Page 7: Troubleshooting
6. Troubleshooting Symptom Corrective action - Failure on installation The dryer will not run Ensure that the breaker supplying the dryer is operational. If it is, disconnect the power and remove the dryer cover. Taking suitable precautions to avoid electric shock, reconnect the power and check for voltage at the terminal block. - Page 8 Symptom Corrective action - In service failure The dryer will not run Ensure that the breaker supplying the dryer is operational. If it is, disconnect the power and remove the dryer cover. Taking suitable precautions to avoid electric shock, reconnect the power and check for voltage at the terminal block.
- Page 9 Repair parts list Part Description Steel - White porcelain enamelled - JET1600 C0109-4024 Stainless steel - Satin finished - JET1600BSS C0109-4025 D0109-0005 Security hex screw (2 reqd.) G0309-0005 Shock absorber A0110-0001 Blower housing - Top G0109-0002 Motor rubber - Large E0109-0002 Motor 700W G0109-0004...
- Page 11 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
- Page 12 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
