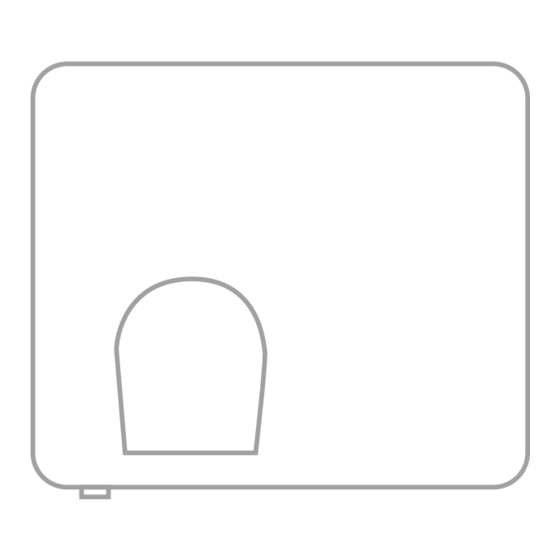

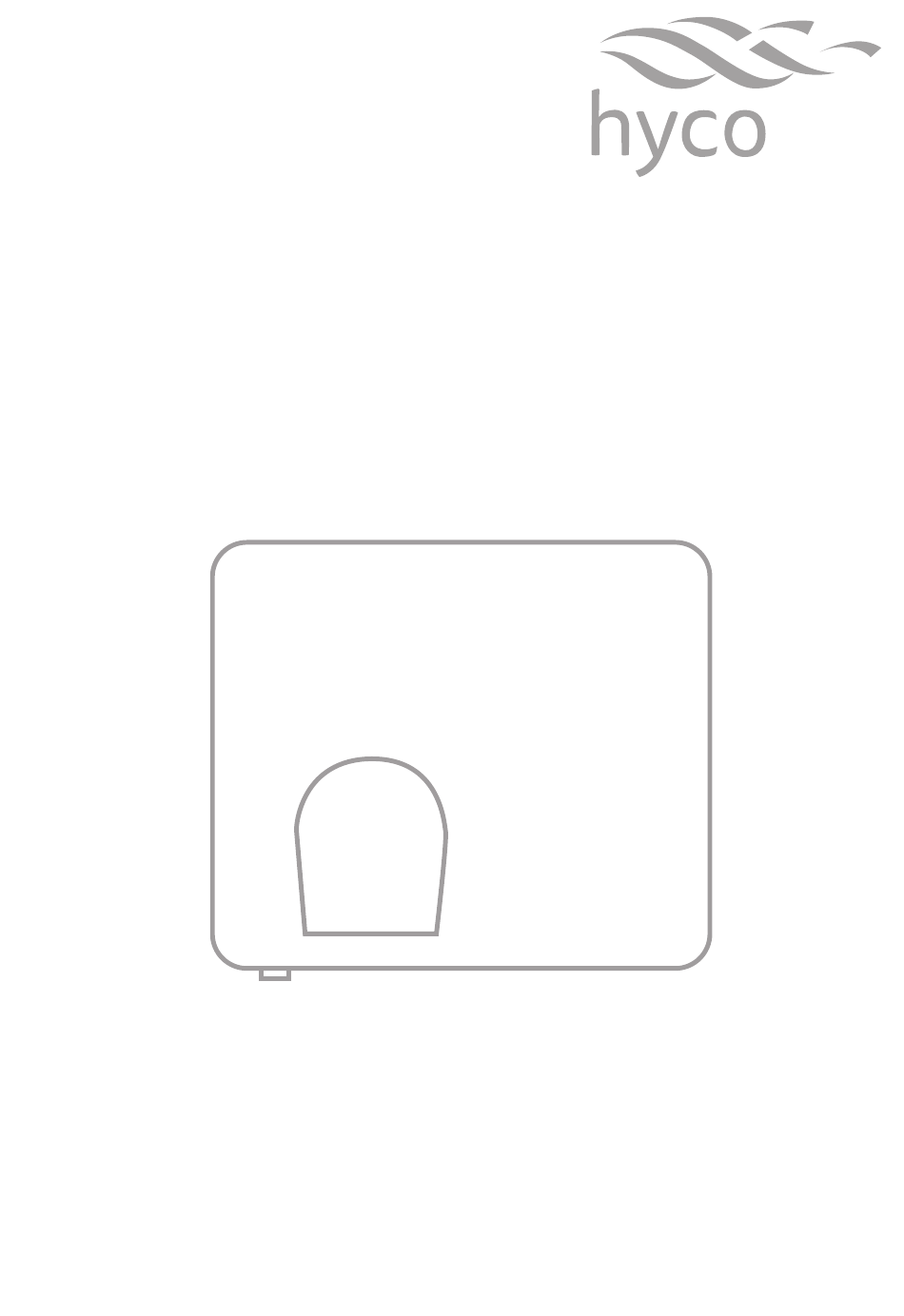

- Page 1 Product Instruction Manual Tornado TOR25W (white), TOR25BSS (brushed stainless steel) 2.5kW automatic hand dryer Version 3.2 Jan 2015 V18.6/2...
- Page 2 Thank you for purchasing the Hyco Tornado hand dryer. The Tornado is a traditional high powered hand and face dryer suitable for a wide range of applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. Please read and understand these instructions before commencing installation, and leave them with the user when installation is complete.
- Page 3 2. Installation Wall Mounting The hand dryer must be fixed out of reach of a person taking a bath or shower. Ensure that the surface selected for mounting the hand dryer is suitable for the weight of the product. Ensure nothing is located within a minimum of 40cm below the air outlet. •...
- Page 4 • Remove the two screws located at the bottom of the unit with the Allen key provided. • Carefully uncouple the sensor wire before removing the front cover completely. • Mark and drill the four holes to a depth of at least 40mm. Insert the four wall plugs provided.
- Page 5 3. Operation • Shake excess water from hands. • To activate the hand dryer, place your hands underneath the air outlet to operate the sensor. • Rub hands together lightly and rapidly. • The dryer will stop automatically after removing hands. •...
- Page 6 5. Specifications Voltage 230V~50Hz Power 2.5kW Air speed 30m/s Sound level 75dB IP Rating IPX1 Weight 6.0kg 235mm 275mm 210mm...
- Page 7 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
- Page 8 In order to underline the duty to dispose of this equipment separately, the product is marked with a crossed out dustbin. Hyco Manufacturing Ltd Normandy Court Express Way...
