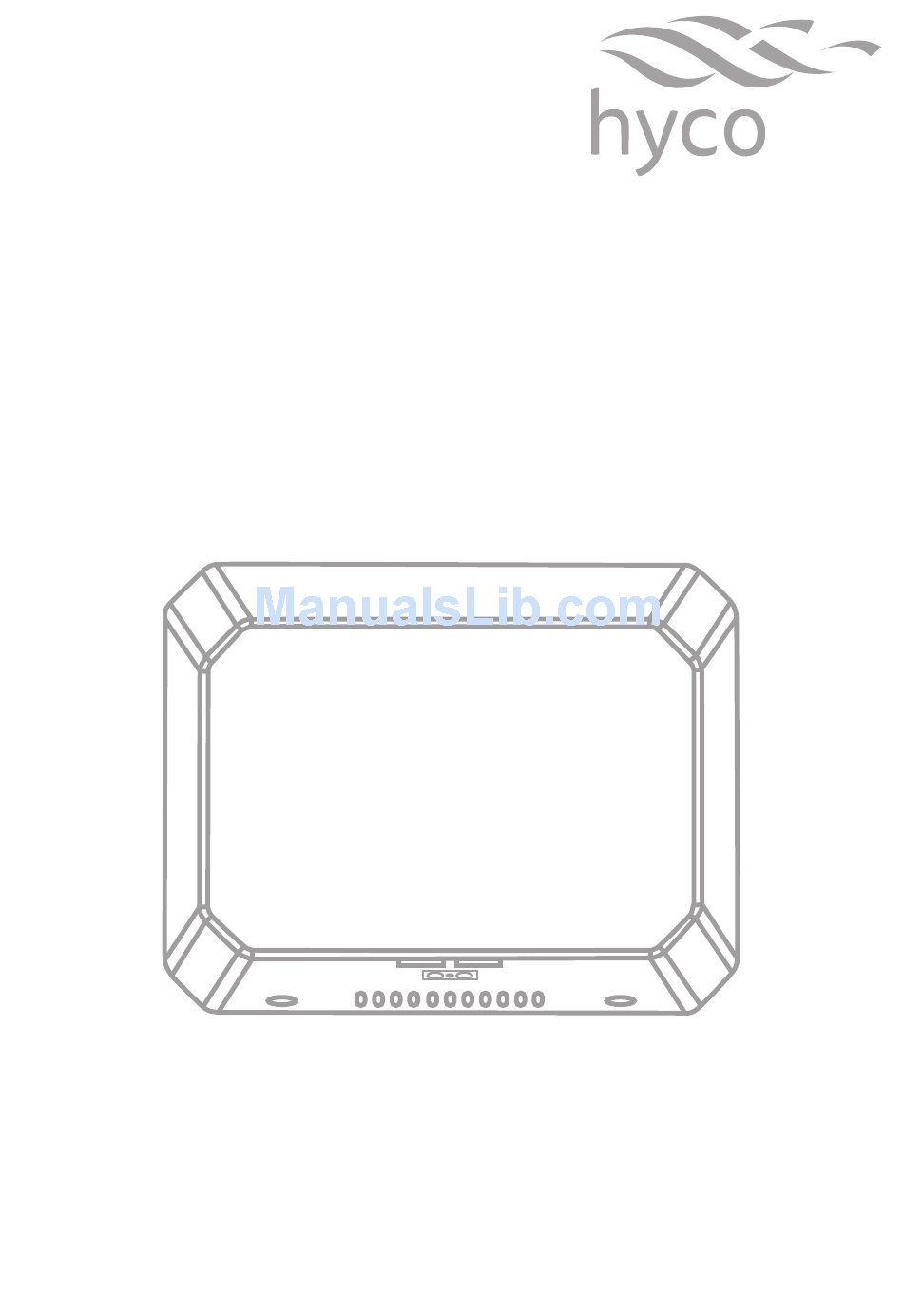

- Page 1 Product Instruction Manual Jetstream Slimline JETS10W 1.0 kW automatic hand dryer Version 3.2 Jan 2015 15.6/2...
-
Page 2: Important Safety Points
Thank you for purchasing the Hyco Jetstream Slimline hand dryer. The JETS10W is an energy efficient hand dryer suitable for many public washroom applications including restaurants, shops and shopping centres, office buildings, pubs, motorway services, factories and supermarkets. The slimline profile makes this hand dryer particularly suitable for restricted space applications such as portable buildings. -
Page 3: Installation
2. Installation Wall Mounting The hand dryer must be fixed out of reach of a person taking a bath or shower. • Place the supplied template against the wall at the desired height (see mounting height recommendations) and mark locations of 4 mounting holes and cable entry at knockout (KO) location. -
Page 4: Operation
Electrical This appliance must be earthed. Means for electrical disconnection must be incorporated in the fixed wiring in accordance with the wiring rules. • The power cord should be connected following the colour coding below: ➢ Brown: L ➢ Blue: N ➢... - Page 5 Air speed adjustment SW.FOR HEATER 1. switch off the power, loosen the cover screws and remove the cover. SW.FOR HEATER VR.FOR SENSOR 2. Use small Philips head screwdriver or plastic flat blade probe to turn VR shaft. VR.FOR SENSOR Clock-wise (CW) to increase power to maximum (+) turn tool gently (CCW) to reduce power as VR.FOR AIR SPEED...
-
Page 6: Maintenance
4. Maintenance Periodic cleaning of the unit is recommended to ensure optimum performance. • Disconnect the electrical supply. • Remove the two cover-mounting screws. • Remove the cover. • Clean all dust lint from the interior of the dryer. • Clean the exterior of the unit using a soft, damp cloth. Do not soak; never use abrasives to clean the cover. -
Page 7: Specifications
5. Specifications Voltage 230v~50Hz Power 1.0kW Air speed (adjustable) 45 - 70m/s Hand Air volume (adjustable) 71 - 102m3/h Dryer Sound level 78dB IP Rating IP23 Weight 3.8kg 216mm 276mm 100mm... -
Page 8: Troubleshooting
6. Troubleshooting Symptom Corrective action - Failure on installation The dryer will not run Ensure that the breaker supplying the dryer is operational. If it is, disconnect the power and remove the dryer cover. Taking suitable precautions to avoid electric shock, reconnect the power and check for voltage at the terminal block. - Page 9 Symptom Corrective action - In service failure The dryer will not run Ensure that the breaker supplying the dryer is operational. If it is, disconnect the power and remove the dryer cover. Taking suitable precautions to avoid electric shock, reconnect the power and check for voltage at the terminal block.
- Page 12 This product is guaranteed against faulty materials and manufacture for a period of one year from the date of purchase. Hyco will in its sole discretion replace, repair or refund any faulty unit. Incorrect installation and failure to follow correct operating instructions are excluded.
