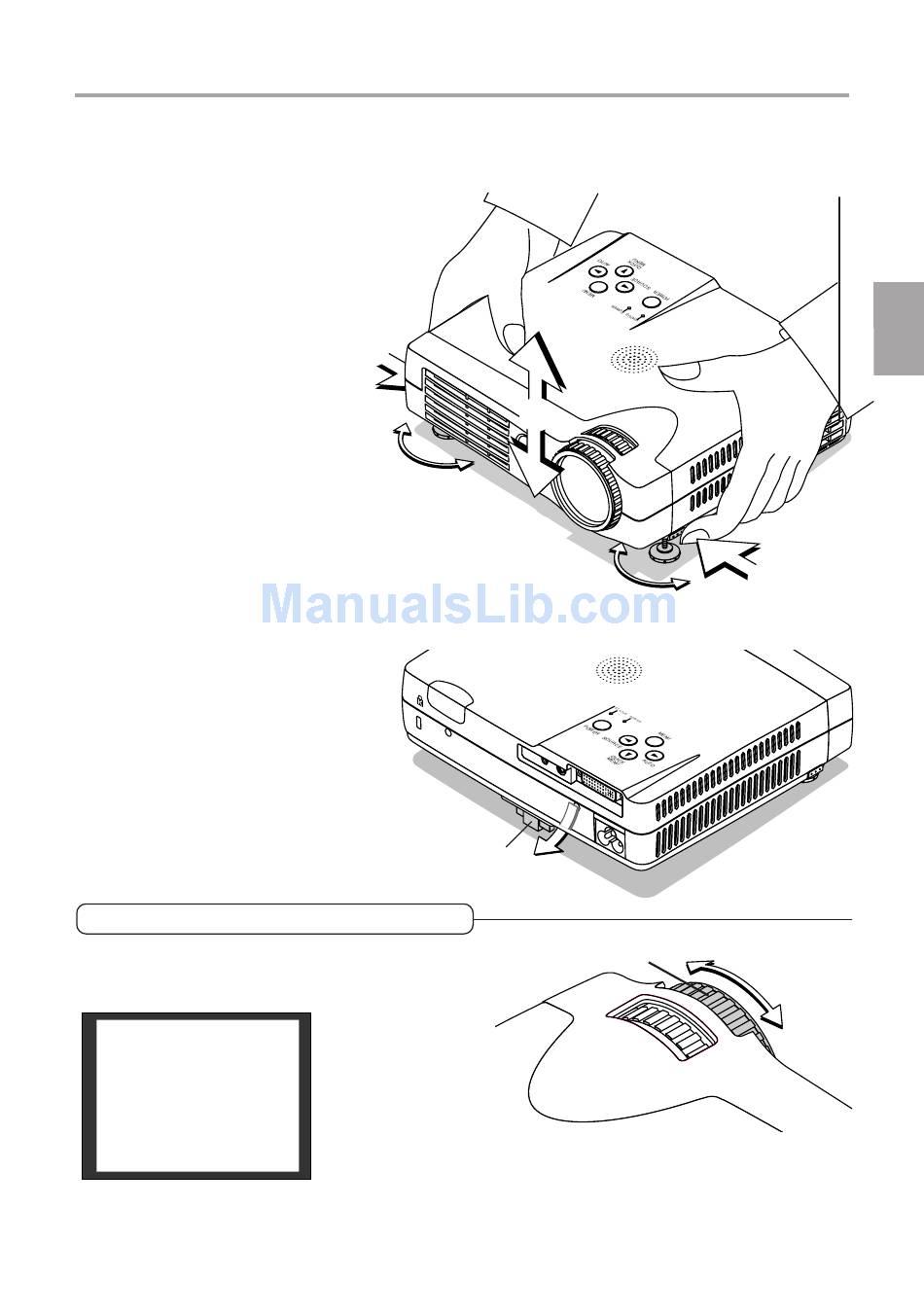

Using the Adjusters

Raising the projection image
While viewing the projection im-
age, press and hold the front ad-
juster buttons located at the left
and right (1) and, raise the projec-
tor to align the image with the
screen, then release your fingers
(2).
Turn the left and right front adjust-
ers for fine adjustment.
Adjust so that there is no shaking
of the projector.
Lowering the projection image
Lower the front adjusters using the
operation described above.
Raise the rear adjuster. Turn the
left and right front adjusters to
make fine adjustments.
Adjust so that there is no shaking
of the projector.

Focus Adjustment

Turn the focus ring to the right or left and adjust
the focus.
ABC
( 1 )
( 2 )
Rear adjuster
E-19
Adjustment of the Projection Screen
Care must be taken not to come into
contact with the ventilation slots which
discharge the heat of the lamp.
A U
D I O
V I D
E O
P C
Focus ring
( 1 )
