Connecting Personal Computers and Video Equipment
Connections with Video and Audio Connectors

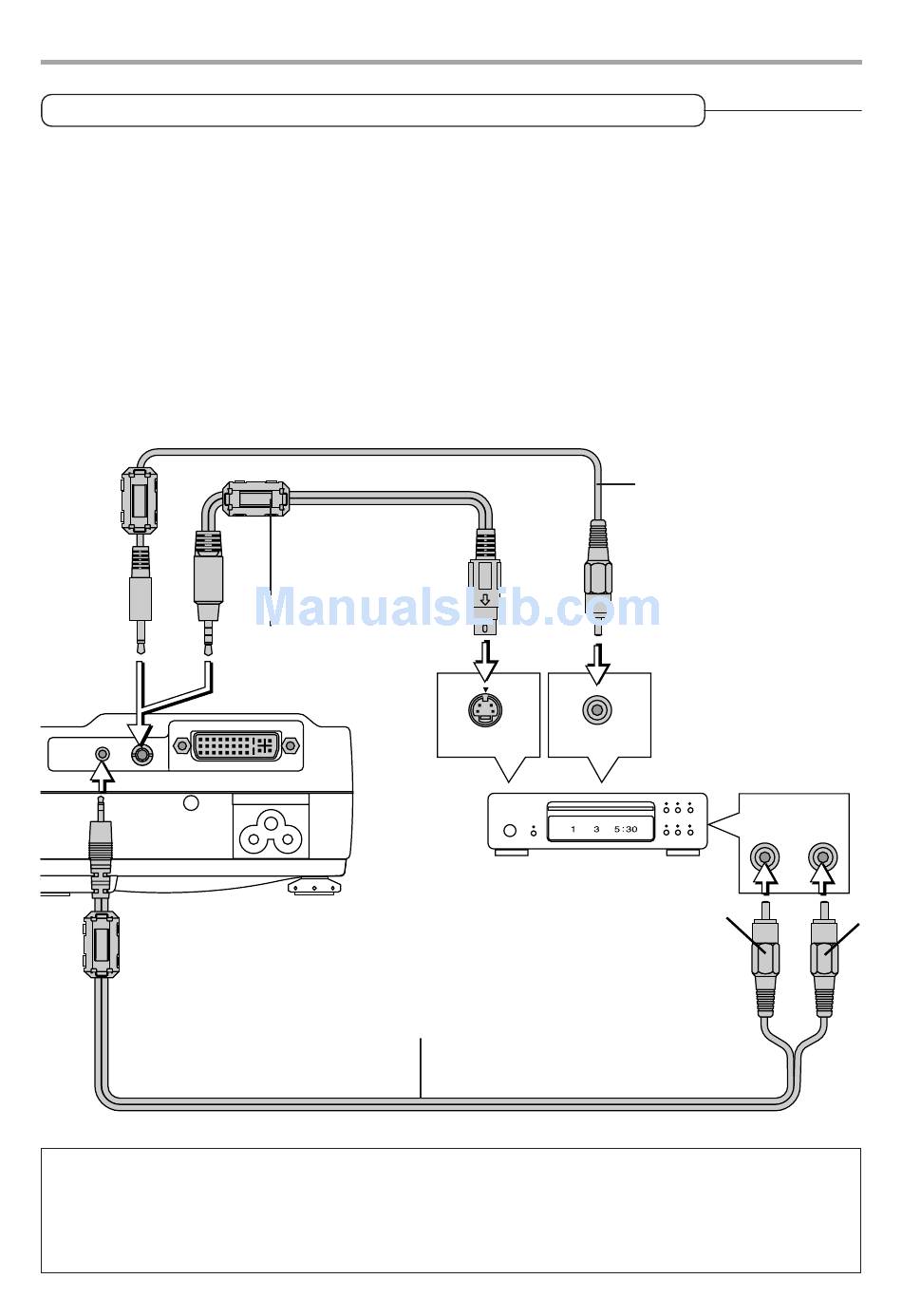

Video Equipment with VIDEO Connectors
* Make the connection to the VIDEO connector of the projector using a video cable.

Video Equipment with S-VIDEO Connectors

* Make the connection to the VIDEO connector of the projector using an S-video cable.

Audio Connectors

* Make the connection to the projector's AUDIO jack using an audio cable.
* The built-in speaker of the projector provides monaural audio.
* To enjoy convincing audio reproduction, please connect the audio output of the video equipment to
your audio system.
AUDIO
VIDEO
Note
* Please see Page E-20(S) "Input Selection" for information about making input selections.
* The AUDIO jack of the projector is a 2.5 mm diameter stereo mini jack. Connection is not possible using the
common (3.5 mm diameter) stereo mini jack cable from the headphone jack of the personal computer or
video equipment.
S-Video cable (Supplied item)
PC
Audio cable (Supplied item)
S-Video Video
E-14
Video cable (Supplied item)
Audio output
Left Right
White
Red
