Connections with Component Video Sources

When the Video Connectors are Y, Cb, and Cr Connectors
* Make the connection to the projector's VIDEO connector using a component cable (which is avail-
able as an option).
AUDIO VIDEO
Note
* Please see Page E-20(S) "Input Selection" for information about making input selections.
* YCbCr cannot accept the input of signals other than NTSC 3.58 and PAL.
* When the video connectors are Y,Pb,and Pr connectors, please contact Olympus Digital Technical Support.
Connecting Personal Computers and Video Equipment

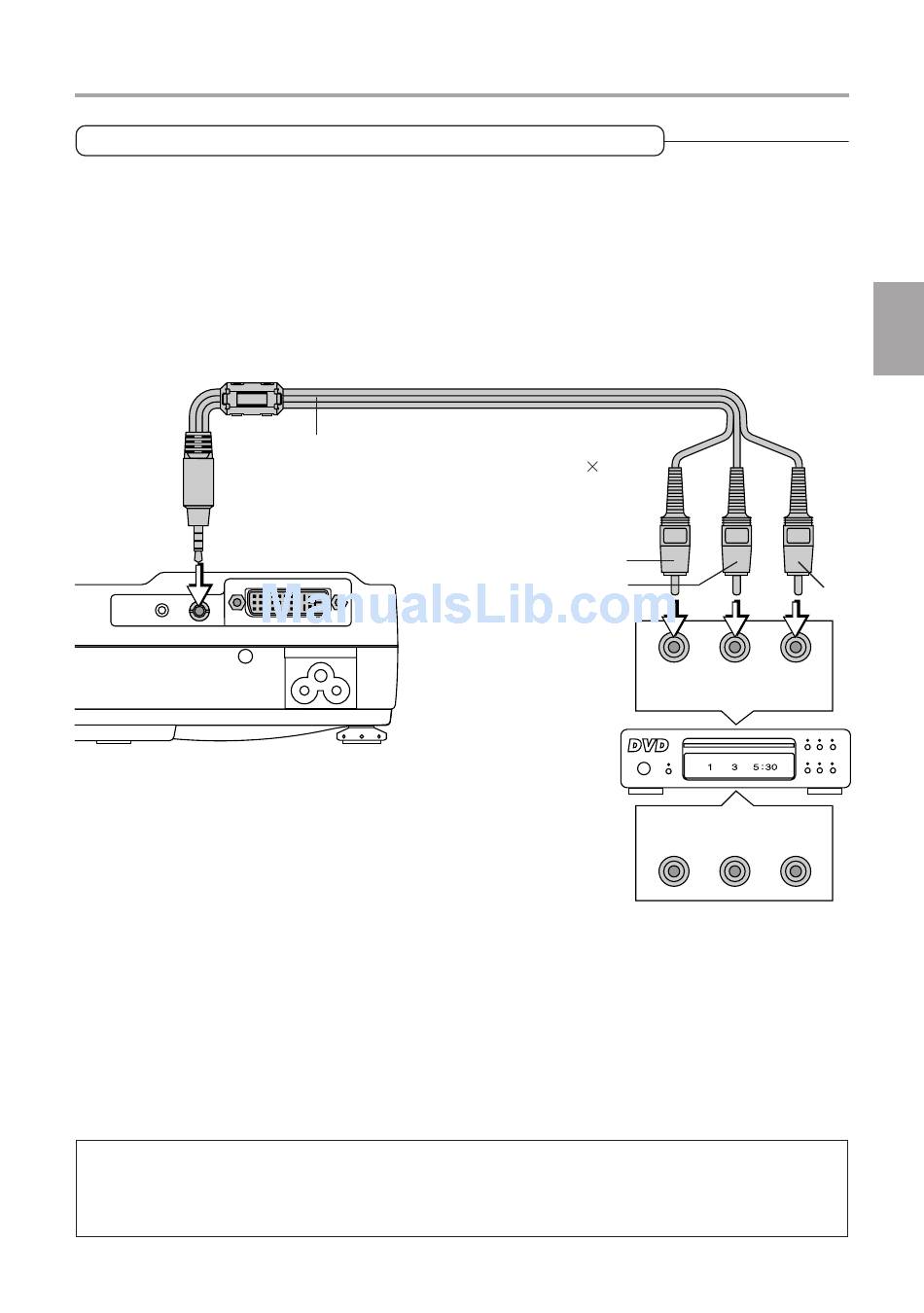

Component cable (Available as an option)
(3.5 mm diameter, 4 Pde, Plug to RCA 3)
(Stock No. 205203)
PC
DVD player, HD video
deck, etc.
E-15
Green
Blue
Y Cb
COMPONENT
COMPONENT
Y Pb
Red
Cr
Pr
