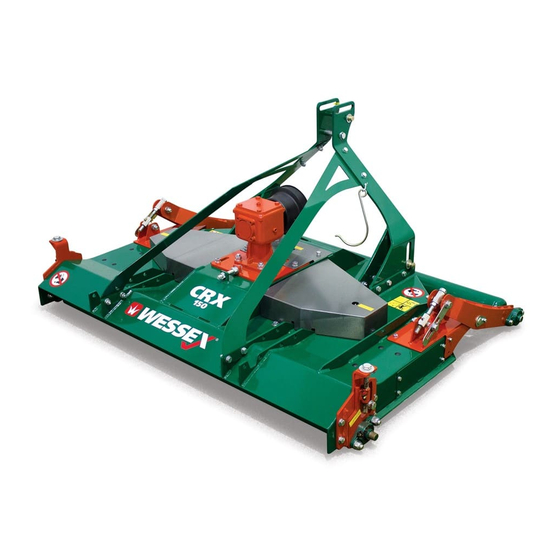

- Page 1 Operation Manual and Parts Book Wessex CRX150/180/240 Multicut Mowers Product Code: L2051 Issue November 2015...
-
Page 3: Table Of Contents
Welcome to your new Wessex Product ........ -
Page 4: Welcome To Your New Wessex Product
WELCOME TO YOUR NEW WESSEX PRODUCT Thank you for purchasing a Wessex product. As a Wessex customer, you now number among the most important people of our business and we will endeavour to give you the best service available through our dealer network. -
Page 5: Safety Decals
SAFETY DECALS GB ATTENTION Description of pictograms. ATTENTION Description des pictogrames. VORSICH Beschreigung der piktogramme. GB Read Operating manual before use. Lisez Manual D’Opéreration avant l’utilisation. Vor der Benutzung, Betriebshandbuch lesen. GB Ear defenders must be worn. Défenseurs des oreilles doivent être portés. Gehörschutz getragen werden. -
Page 6: Safety Decals
P.T.O. Shaft. Ensure that the shaft and guard is regulary greased to avoid overheating and to give lubrication. Important: Thoroughly read through the manufacturers instruction book before using the P.T.O. Shaft. P.T.O.Shafts are not covered by the Wessex Warranty. -
Page 7: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Wessex machines are guarded for your protection, but you must always observe certain elementary precautions. Machines are potentially dangerous and should be used with the greatest respect and ALL OPERATORS MUST read this manual and be are aware of all safety precautions. -
Page 8: Warranty
WARRANTY Your Wessex product or equipment is warranted free from defect in workmanship or manufacture for one year from date of purchase. Any parts which appear to us to be defective, either in material or workmanship shall be replaced or repaired at no cost to the purchaser, subject to the following... -
Page 9: Linking Up To The Tractor
LINKING UP TO THE TRACTOR 1. Reverse your tractor up to the machine and connect the lower links, left hand first to the link pins on the machine, securing with lynchpins. Adjust the right hand tractor lift arm to ensure that the mower is level from side to side. -
Page 10: Altering The Cutting Height / Maintenance
ALTERING THE CUTTING HEIGHT (Rollers) 1. Lift the mower slightly off the ground on the hydraulic linkage and switch off the tractor. 2. Loosen, but do not remove the fixing bolts (A). There are two each side of the main deck. 3. -
Page 11: Lubrication / Belt Adjustment
At the end of the grass cutting season always clean the CRX thoroughly and grease before winter storage. Only use genuine Wessex parts in the event of replacing worn parts. This will ensure the continued safe use of your CRX Roller Mower and the validity of your warranty. -
Page 12: Troubleshooting / Winter Storage
TROUBLESHOOTING FAULT CAUSE REMEDY Leaving wheel track uncut 1. Forward speed too fast Reduce forward speed 2. Cutting height too high Lower cutting height Bad quality of cut 1. Forward speed too fast Reduce forward speed 2. Excessive blade wear Replace blades 3. -
Page 13: Cutting Blades / Specifications
Always lift machine and prop the machine up with axle stands. Never get underneath an unsupported machine. Replace blade tips using new nylock locking nuts every time. SPECIFICATIONS Wessex Proline CRX Multicut Mowers Model: CRX 150 CRX 180 CRX 240 Cutting Width: 1.5m... -
Page 14: Part Illustration - Crx Mainframe
PARTS ILLUSTRATION - CRX MAINFRAME PLATE 1 18,23 6,7,8 20,21 16,17 15,16 12,13... -
Page 15: Parts List - Crx Mainframe
PARTS LIST - CRX MAINFRAME Item CRX150 CRX180 CRX240 Description Part No. Part No. Part No. WX-0426 WX-0426 WX-0426 Top Link Pin WX-0127 WX-0127 WX-0127 Linch Pin WX-34680 WX-34680 WX-34680 Linkage Tube WX-1001 WX-1001 WX-1001 Fastening Set WX-19579 WX-19579 WX-19579... -
Page 16: Parts Illustration - Crx Drive And Baffles
PARTS ILLUSTRATION - CRX DRIVE AND BAFFLES PLATE 2... -
Page 17: Parts List - Crx Drive And Baffles
PARTS LIST - CRX DRIVE AND BAFFLES Item CRX150 CRX180 CRX240 Description Part No. Part No. Part No. WX-5257 WX-5257 WX-5257 Gearbox CR/CRX WX-0547 WX-0547 WX-0547 WX-5103 WX-5103 WX-5103 Fastening Set WX-5177 WX-5177 WX-5177 Bucket Guard WX-27976 WX-27976 WX-27976 Gearbox Adjuster Plate... -
Page 18: Parts Illustration Crx Rollers
PARTS ILLUSTRATION - CRX ROLLERS PLATE 3... -
Page 19: Parts List - Crx Rollers
PARTS LIST - CRX ROLLERS Item CRX150 CRX180 CRX240 Description Part No. Part No. Part No. WX-8055 WX-8055 WX-8055 Rear Roller Fixed Plate - Left Hand WX-8155 WX-8155 WX-8155 Rear Roller Sliding Plate - Left Hand WX-10555 WX-9455 WX-10755 Front Roller Base - Left Hand... -
Page 20: Parts Illustration - Crx Wheel Assembly
PARTS ILLUSTRATION - CRX WHEEL ASEMBLY PLATE 4... -
Page 21: Parts List - Crx Wheel Assembly
PARTS LIST - CRX WHEEL ASSEMBLY Item CRX150 CRX180 CRX240 Description Part No. Part No. Part No. WX-0627 WX-0627 WX-0627 Linch Pin WX-18051 WX-18051 WX-18051 12.5mm Spacer WX-17851 WX-17851 WX-17851 25mm Spacer WX-1550 WX-1550 WX-1550 Wheel Fork WX-4652 WX-4652 WX-4652... -
Page 22: Parts Illustration - Crx Spindle And Blade Assembly
PARTS ILLUSTRATION - CRX SPINDLE & BLADE ASEMBLY PLATE 5 4 → 8... -
Page 23: Parts List - Crx Spindle And Blade Assembly
PARTS LIST - CRX SPINDLE & BLADE ASEMBLY Item CRX150 CRX180 CRX240 Description Part No. Part No. Part No. WX-0246 WX-0246 WX-0246 Grease Nipple WX-5303 WX-5303 WX-5303 Pulley Fastening Set WX-18166 WX-18166 WX-18166 Pulley Spacer WX-1722 WX-1722 WX-1722 Circlip WX-0838... -
Page 24: Parts Illustration - Gearbox
PARTS ILLUSTRATION - CRX GEARBOX - PART No. WX-5257 PLATE 6... -
Page 25: Parts List - Gearbox
PARTS LIST - CRX GEARBOX PART No. WX-5257 Item No. Part No. Description GXS-0.141.2100.00 Input Shaft GXS-8.7.0.00744 Oil Cap GXS-8.0.1.00870 Bearing GXS-0.259.7500.00 Shim Kit GXS-8.4.1.00993 GXS-0.133.5000.00 Crown Gear Z34 GXS-8.6.5.00006 Plug GXS-8.5.2.00648 Snap Ring GXS-0.113.7500.00 Shim Kit GXS-8.1.1.00054 Bolt GXS-0.205.1300.00 Cover GXS-8.0.1.00000 Ball Bearing... -
Page 26: Parts Illustration - Pto Shaft
PARTS ILLUSTRATION / PARTS LIST - PTO SHAFT - PART No. WX-2481 PLATE 7... -
Page 27: Parts List - Pto Shaft
PARTS ILLUSTRATION / PARTS LIST - PTO SHAFT - PART No. WX-2481 Item No. Part No. Description PTO-1.08.25 Push Pin Set PTO-2.05.07 Push Pin Yoke PTO-2.41 Cross Journal Set PTO-2.06 Outer Yoke PTO-1.12 Pin-Outer Tube PTO-2.03.10 Outer Tube PTO-2.04.10 Inner Tube PTO-4.13 Pin-Inner Tube PTO-2.07... -
Page 28: Pto Shaft Operation And Maintenance
PTO SHAFT OPERATION AND MAINTENANCE IMPORTANT! P.T.O. drive shafts must only be used for their intended purpose. P.T.O. drive shafts are designed for specific machine types and power requirements. They must not be replaced by other models. Ensure that the P.T.O. drive shaft is securely connected. Only use a completely protected drive system: P.T.O. -
Page 29: Pto Shaft - Operation And Maintenance
PTO SHAFT OPERATION AND MAINTENANCE LENGTH ADJUSTMENT To adjust the length, hold the half-shafts next to each other in the shortest working position and mark them. Shorten inner and outer guard tubes equally. Shorten inner and outer sliding profiles by the same length as the guard tubes. -
Page 30: Safety Training Induction
SAFETY TRAINING INDUCTION The undersigned personnel have been trained in the safe use of this Wessex machine and have understood the contents of the Operator’s Manual. OPERATOR INSTRUCTOR/TRAINER Date Name Signature Name Signature... -
Page 31: Daily Inspection Record
Spindle Rotor, remove tangled objects Inspect condition of Blades All bolts and nuts, re-tighten if req’d. Grease Rotor Bearings Grease Roller Bearings Check Gearbox Oil Level Inspect Roller Scraper Wire Inspect condition of Belts Inspect tension of Belts... -
Page 32: Notes
NOTES... -
Page 33: Ce Certificate
CRX150 / 180 / 240 MULTICUT MOWER MARCH 2015... - Page 34 Wessex International Charlton House, Caxton Close, East Portway Industrial Estate, Andover Hampshire. SP10 3QN Telephone: 01264 345870 Fax 01264 345880 e-mail: sales@wessexintl.com www.wessexintl.com...
