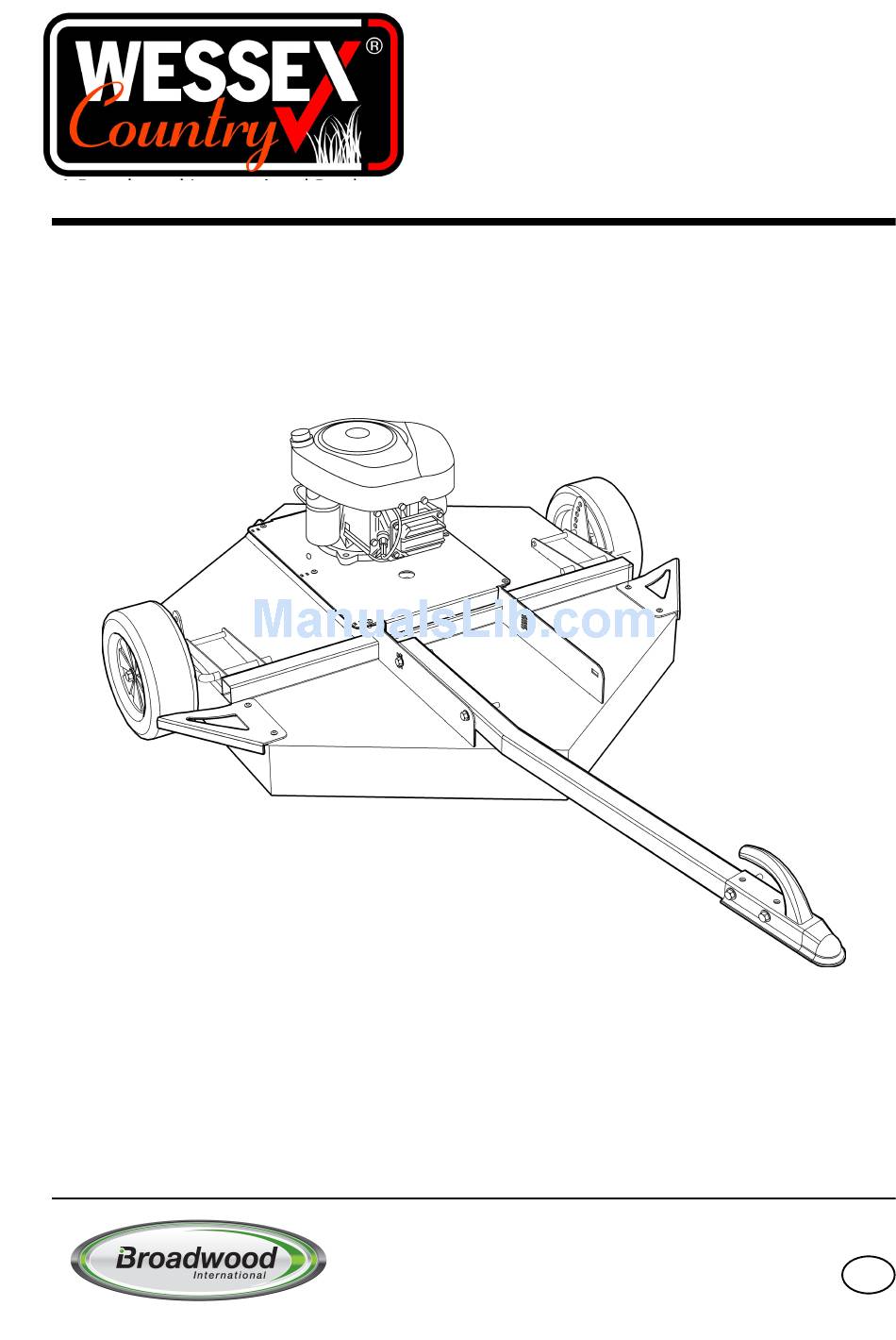

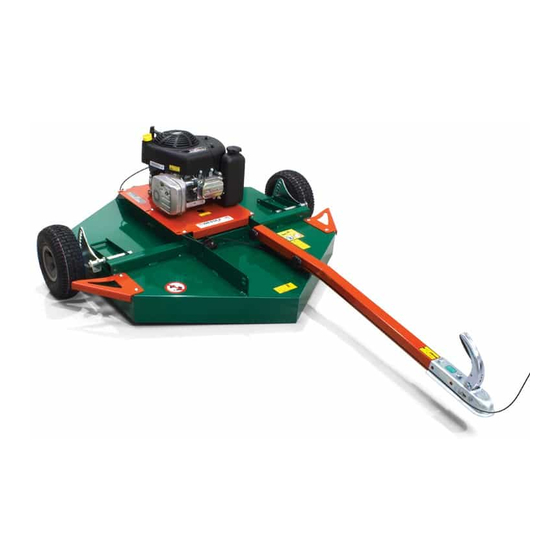

A Broadwood International Product
Operation Manual and Parts Book
Wessex AT110Trailed Rotary Mowers
Serial Numbers after 110778
Product Code: L2017
GB
Issue May 2011
Manufacturers and Distributors of Quality Equipment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AT110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Wessex AT110

Summary of Contents for Wessex AT110

  • Page 1 A Broadwood International Product Operation Manual and Parts Book Wessex AT110Trailed Rotary Mowers Serial Numbers after 110778 Product Code: L2017 Issue May 2011 Manufacturers and Distributors of Quality Equipment...

  • Page 3: Table Of Contents

    Parts Illustration - AT110 Mainframe Assembly ........14...

  • Page 4: Welcome To Your New Wessex Product

    WELCOME TO YOUR NEW WESSEX PRODUCT Thank you for purchasing a Wessex product. As a Broadwood customer, you now number among the most important people of our business and we will endeavour to give you the best service available through our dealer network.

  • Page 5: Safety Decals

    SAFETY DECALS GB ATTENTION Description of pictograms. ATTENTION Description des pictogrames. VORSICH Beschreigung der piktogramme. GB Read Operating manual before use. Lisez Manual D’Opéreration avant l’utilisation. Vor der Benutzung, Betriebshandbuch lesen. GB Ear defenders must be worn. Défenseurs des oreilles doivent être portés. Gehörschutz getragen werden.
  • Page 6 SAFETY DECALS GB It is the operators responsibility to ensure that the machine is compatible with the load- ing capacity of the towing vehicle. Il est de la responsabilité des opérateurs afin de s’assurer que la machine est compati- ble avec la capacité de chargement du véhicule tracteur. Es ist den Betreibern dafür zu sorgen, dass die Maschine mit der Belastbarkeit des Zugfahrzeugs ist.

  • Page 7: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS Wessex machines are guarded for your protection, but you must always observe certain elementary precautions. Machines are potentially dangerous and should be used with the greatest respect and ALL OPERATORS MUST read this manual and be are aware of all safety precautions.

  • Page 8: Important Safety Warnings

    IMPORTANT ATV SAFETY WARNINGS READ THE FOLLOWING CAREFULLY IMPORTANT SAFETY INSTRUCTIONS ON COUPLING IMPLEMENTS AND ATTACHMENTS TO ATV’S TRAINING It is most essential that all operators of ATV’s are trained by a certified training organisation. It is strictly forbidden that any person under 16 years of age should ride an ATV. Any person 17 years of age must have had training before towing a trailer with an ATV.
  • Page 9 IMPORTANT ATV SAFETY WARNINGS TOWING Never tow loads larger or heavier than recommended for your ATV. (See ATV hand book). Never tow or turn across a slope. Never tow down a steep slope with a large or heavy load. When towing heavy loads there is a significant risk of jack-knifing or overturning. ROUGH TERRAIN Always take care when operating implements on rough terrain or uneven ground.

  • Page 10: Warranty

    WARRANTY Your Broadwood product or equipment is warranted free from defect in workmanship or manufacture for one year from date of purchase. Any parts which appear to us to be defective, either in material or workmanship shall be replaced or repaired at no cost to the purchaser, subject to the following conditions: The registration card enclosed with this booklet must be returned to us within seven days of purchase.

  • Page 11: Setting Up Your Wesex Country Mower

    SETTING UP YOUR WESSEX COUNTRY MOWER 1. Attach the towbar to the mower as shown below using the supplied bolts and knobs. The mower can be pulled directly behind your ATV or it can be offset to either side by changing the position of the towbar.

  • Page 12: Using Your Wesex Mower / Cutting Height Adjustment

    USING YOUR WESSEX MOWER 1. The engine on your mower can be started either with the throttle set at high or low revs, but always ensure that the revs are immediately adjusted so that the centrifugal clutch is either completely disengaged or completely engaged. Running the machine with the clutch partially engaged will rapidly cause wear to the clutch.

  • Page 13: Maintenance / Belt Tension / Belt Change / Blades

    MAINTENANCE BELT TENSION Check belt tension after the first hour of work and then after every 20 hours of work. The correct belt tension is approximately 12-15mm of deflection under thumb pressure halfway between the pulleys. To tighten the belts simply loosen off the four engine mounting bolts. Then adjust by pulling the engine back with the adjusting bolt situated in the centre at the rear of the engine mounting bracket.

  • Page 14: Lubrication / General

    LUBRICATION Check engine oil (See Engine Manual). Follow the recommended service intervals from the Engine Manual. Grease the ball hitch periodically. Grease the main cutter spindle every 20 hours. The grease nipple is on top of the main spindle underneath the front of the engine. GENERAL Periodically check all nutsand bolts are tight.

  • Page 15: Troubleshooting

    1. Cutting height too low Raise cutting height WINTER STORAGE Before winter storage, the AT110 Rotary Mower should be thoroughly inspected:- Repair or replace any worn or broken parts. Take special care to look at the flail blades, rotor and the bearings.

  • Page 16: Parts Illustration - At110 Mainframe Assembly

    PARTS ILLUSTRATION - AT110 MAINFRAME ASSEMBLY - PLATE 1 PLATE 1...

  • Page 17: Parts List - At110 Mainframe Assembly

    PARTS LIST - AT110 MAINFRAME ASSEMBLY - PLATE 1 Item No. Part No. Description Qty. per Machine WX-0106 Blade Fastening Set WX-10770 Blade WX-0220 Fibre Washer WX-5966B Spindle Assembly WX-18879 Mower Deck WX-0527 Linch Pin WX-6052 Wheel WX-32501 Wheel Fastening Set...

  • Page 18: Parts Illustration - Spindle Assembly

    PARTS ILLUSTRATION - SPINDLE ASSEMBLY - PLATE 2 PLATE 2 PARTS LIST - SPINDLE ASSEMBLY - PLATE 2 Item No. Part No. Description Qty. per Machine WX-1722 Circlip WX-0838 Spindle Top Bearing WX-5966 Spindle Housing WX-0938 Spindle Bottom Bearing WX-0147 WX-6066 Spindle WX-10770...

  • Page 19: Ce Certificate

    AT110 Rotary Mower August 2011...
  • Page 20 Manufacturers and Distributors of Quality Equipment Broadwood International Trading Estate, Oakhanger Road, Bordon, Hampshire. GU35 9HH Telephone: 01420 478111 Fax 01420 483000 e-mail: sales@broadwoodintl.co.uk www.broadwoodintl.co.uk...
