Wessex CRX-320 Operations Manual And Parts Book

Tri-deck roller mowers
Hide thumbs
Table of Contents

Advertisement

Quick Links

Operation Manual and Parts Book

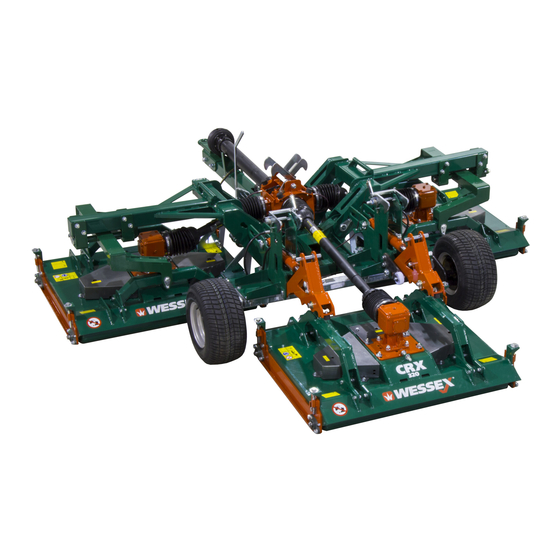

Wessex CRX-320 Tri-Deck Roller Mowers
Product Code: L2064
GB
Issue March 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CRX-320 and is the answer not in the manual?

Questions and answers

Related Manuals for Wessex CRX-320

Summary of Contents for Wessex CRX-320

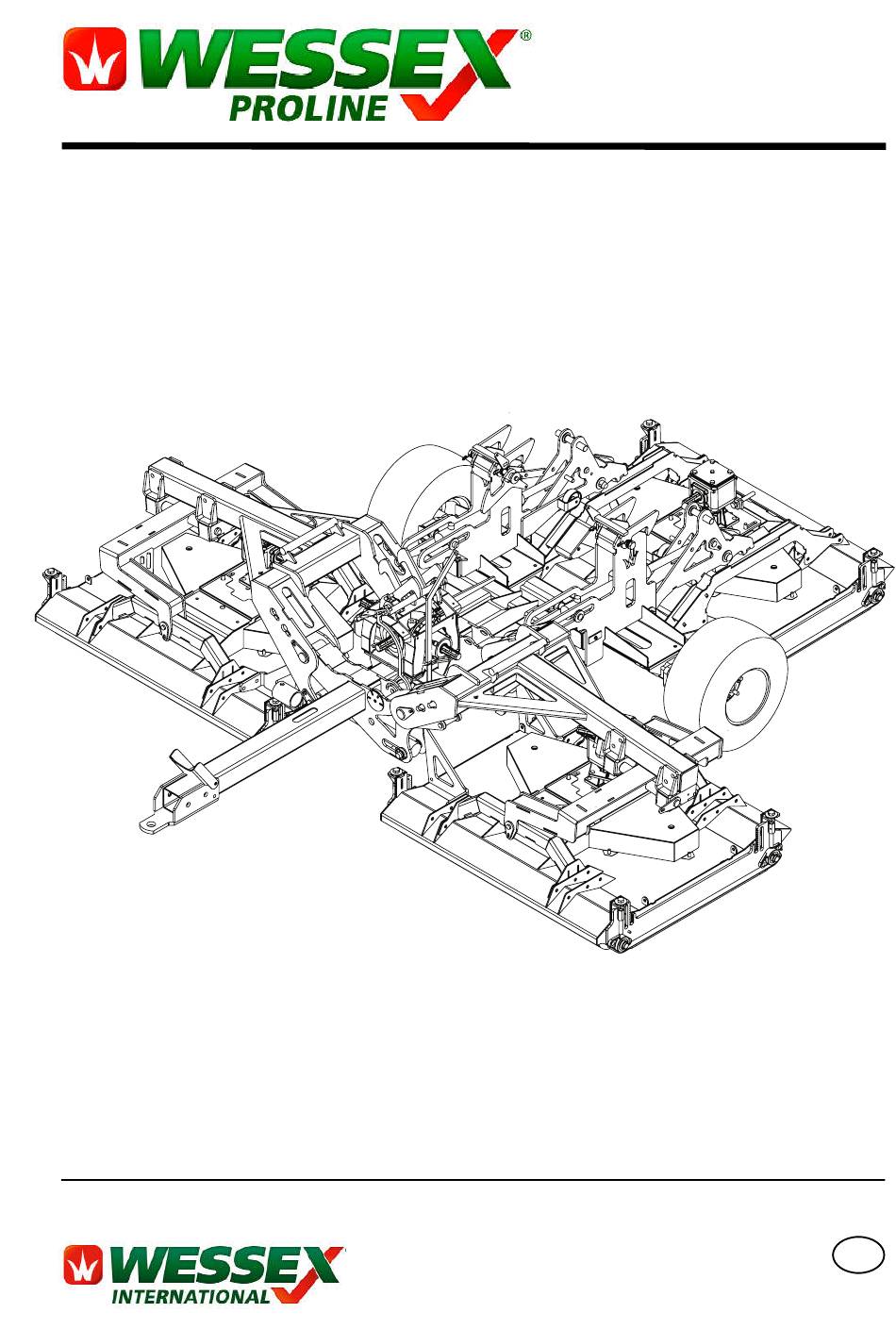

  • Page 1 Operation Manual and Parts Book Wessex CRX-320 Tri-Deck Roller Mowers Product Code: L2064 Issue March 2019...

  • Page 3: Table Of Contents

    Welcome to your new Wessex Product ........

  • Page 5: Welcome To Your New Wessex Product

    WELCOME TO YOUR NEW WESSEX PRODUCT Thank you for purchasing a Wessex product. As a Wessex customer, you now number among the most important people of our business and we will endeavour to give you the best service available through our dealer network.

  • Page 6: Safety Decals

    SAFETY DECALS GB ATTENTION Description of pictograms. ATTENTION Description des pictogrames. VORSICH Beschreigung der piktogramme. GB Read Operating manual before use. Lisez Manual D’Opéreration avant l’utilisation. Vor der Benutzung, Betriebshandbuch lesen. GB Ear defenders must be worn. Défenseurs des oreilles doivent être portés. Gehörschutz getragen werden.
  • Page 7 Ensure that the shafts and guards are regulary greased to avoid overheating and to give lubrication. Important: Thoroughly read through the P.T.O. manufacturers instruction book provided with the CRX before using the P.T.O. Shaft. P.T.O. Shafts are not covered by the Wessex Warranty.

  • Page 8: Important Safety Warnings

    IMPORTANT SAFETY WARNINGS Wessex machines are guarded for your protection, but you must always observe certain elementary precautions. Machines are potentially dangerous and should be used with the greatest respect and ALL OPERATORS MUST read this manual and be are aware of all safety precautions.

  • Page 9: Warranty

    WARRANTY Your Wessex product or equipment is warranted free from defect in workmanship or manufacture for one year from date of purchase. Any parts which appear to us to be defective, either in material or workmanship shall be replaced or repaired at no cost to the purchaser, subject to the following...

  • Page 10: Linking Up To The Tractor

    LINKING UP TO THE TRACTOR 1. Always hitch and unhitch on level ground for safety reasons. 2. When hitching up, never allow anyone to stand between the tractor and the implement. 3. Reverse the tractor up to the CRX Tri-deck and hitch up to the towing hitch. When using a drawbar pin ensure that it is secured with a lynch pin.

  • Page 11: Altering The Cutting Height / Belt Adjustment

    ALTERING THE CUTTING HEIGHT (Rollers) 1. Loosen, but do not remove the fixing bolts (A). There are two on each side of the main deck. 2. Turn the adjusting screws (B) clockwise to lower the rollers, thus increasing the cutting height, or anticlockwise to raise the rollers, thus reducing the height of cut.

  • Page 12: Maintenance / Lubrication

    At the end of the grass cutting season always clean the CRX Tri-deck thoroughly and grease before winter storage. Only use genuine Wessex parts in the event of replacing worn parts. This will ensure the continued safe use of your CRX Tri-deck and the validity of your warranty.

  • Page 13: Troubleshooting / Winter Storage

    TROUBLESHOOTING FAULT CAUSE REMEDY Leaving wheel track uncut 1. Forward speed too fast Reduce forward speed 2. Cutting height too high Lower cutting height 3. Excessive blade wear Replace blades Bad quality of cut 1. Forward speed too fast Reduce forward speed 2.

  • Page 14: Cutting Blades / Specifications

    Always replace blades on both ends of bars to avoid imbalance. Always lift machine and prop the machine up with axle stands. Never get underneath an unsupported machine. Replace blade tips using new nylock locking nuts every time. SPECIFICATIONS Wessex Proline CRX Multicut Mowers Model: CRX-320 Cutting Width: 3.2m Overall Width: 3.35m...

  • Page 15: Crx Trideck Hitch Guide

    CRX Trideck Hitch Guide Standard drawbar hitch for compact tractor Double clevis jaw for single clevis drawbar double clevis towing jaw. use (USA) Two height adjustments. Part number:- WX-47080 Part number:- WX-49080 Ring hitch and removable nylon puck Ring hitch for tractor pick-up hitch. for double clevis drawbar use.

  • Page 16: Pto Shaft Operation And Maintenance

    PTO SHAFT OPERATION AND MAINTENANCE IMPORTANT! P.T.O. drive shafts must only be used for their intended purpose. P.T.O. drive shafts are designed for specific machine types and power requirements. They must not be replaced by other models. Ensure that the P.T.O. drive shaft is securely connected. Only use a completely protected drive system: P.T.O.
  • Page 17 PTO SHAFT OPERATION AND MAINTENANCE LENGTH ADJUSTMENT To adjust the length, hold the half-shafts next to each other in the shortest working position and mark them. Shorten inner and outer guard tubes equally. Shorten inner and outer sliding profiles by the same length as the guard tubes.

  • Page 18: Parts Illustration And Parts List - Crx120 Drive Assembly

    PARTS ILLUSTRATION - CRX120 DRIVE ASSEMBLY PARTS LIST - CRX120 DRIVE ASSEMBLY Item No. Part No. Description Qty. WX-21077 Left Hand Belt Guard WX-16503 Belt Guard Fastening Set WX-5257 Gearbox - Cutting Deck WX-8481 PTO Cover Adapter WX-4603 Gearbox Adjuster Plate Fastening Set WX-18877 Gearbox Plate Cover WX-16503...

  • Page 19: Parts Illustration And Parts List - Crx 120 Rollers

    PARTS ILLUSTRATION - CRX120 ROLLERS PARTS LIST - CRX120 ROLLERS Item No. Part No. Description Qty. WX-43676 CRX 120 - Adjustable Side Plate - Left Hand WX-21077 CRX120 - Left Hand Belt Guard WX-11355 CRX120 - Roller Assembly WX-0541 Bearing Unit WX-6501 Bearing Unit Fastening Set WX-43776...

  • Page 20: Parts Illustration - Spindle And Blade Assembly

    PARTS ILLUSTRATION - SPINDLE & BLADE ASSEMBLY 4 → 8...

  • Page 21: Parts List - Spindle And Blade Assembly

    PARTS LIST - SPINDLE & BLADE ASSEMBLY Item Part No. Description per spindle WX-0246 Grease Nipple WX-0814 Pulley Fastening Set WX-18166 Pulley Spacer for non Taper-Lock pulleys WX-1722 Circlip WX-0838 Bearing WX-5966 Spindle Bearing Housing WX-0938 Bearing WX-6066 Cutter Spindle WX-5966B Spindle Assembly WX-3503...

  • Page 22: Parts Illustration - Mainframe

    PARTS ILLUSTRATION - MAINFRAME...

  • Page 23: Parts List - Mainframe

    PARTS LIST - MAINFRAME Item Part No. Description WX-17403 Rear Deck Latch Fastening Set WX-46780 Latch Release Lever WX-5803 Latch Release Lever Fastening Set WX-19501 Latch Stop Bolt WX-19601 Spring Retainer Bolt F-XNN220 Nylock WX-5803 ProLift Slide Fastening Set WX-36001 Pin Fastening Set WX-20101 Ram Pin Securing Set...
  • Page 24 PARTS ILLUSTRATION - MAINFRAME...
  • Page 25 PARTS LIST - MAINFRAME Item Part No. Description WX-47780 Wing ProLift Hook - Left Hand WX-47880 Wing ProLift Hook - Right Hand WX-47980 Rear Kerb Tie Rod WX-48180 Rear ProLift Arm - Right Hand WX-9038 Bush WX-0246 Grease Nipple (Straight) WX-34976 Pull Plate Front WX-36501...

  • Page 26: Parts Illustration - Wing Frame Assembly

    PARTS ILLUSTRATION - WING FRAME ASSEMBLY...

  • Page 27: Parts List - Wing Frame Assembly

    PARTS LIST - WING FRAME ASSEMBLY Item No. Part No. Description Qty. WX-5091 Wing Arm Assembly WX-11528 Lower Gimbal Pin WX-42280 Gimbal - Right Hand Side WX-42380 Gimbal - Left Hand Side WX-49380 Wing Gimbal Mount Bracket WX-11428 CRX - Gimbal to Wing Pin WX-45480 Gimbal Lower WX-35003...

  • Page 28: Parts Illustration - Rear Chassis

    PARTS ILLUSTRATION - REAR CHASSIS 28 29...

  • Page 29: Parts List - Rear Chassis

    PARTS LIST - REAR CHASSIS Item No. Part No. Description Qty. WX-6752 Wheel and Tyre Assembly (5 Stud) WX-6752A Tyre Only (5 Stud Wheel) WX-5291 Chassis WX-14128 Ram Pin WX-13128 Top Hat Bush for Float Pins WX-19501 Latch Stop Bolt WX-0127 Lynch Pin WX-20001...

  • Page 30: Parts Illustration And Parts List - Centre Latch Assembly

    PARTS ILLUSTRATION - CENTRE LATCH ASSEMBLY PARTS LIST - CENTRE LATCH ASSEMBLY Item No. Part No. Description Qty. F-XBM20260 Bolt WX-48380 Central Latch Hook - Outer F-XWF220 Washer WX-38780 Central Catch Tube - Long WX-6325 Left Hand Torsion Spring WX-36480 Wing Latch - Central Hook Spacer Tube WX-6425 Right Hand Torsion Spring...

  • Page 31: Parts Illustration And Parts List - Rear Latch Assembly

    PARTS ILLUSTRATION - REAR LATCH ASSEMBLY PARTS LIST - REAR LATCH ASSEMBLY Item No. Part No. Description Qty. F-XNN220 Nylock F-XWF220 Washer WX-6125 Left Hand Torsion Spring WX-48080 Rear ProLift Arm - Left Hand (Shown) WX-48180 Rear ProLift Arm - Right Hand WX-47980 Rear Kerb Tie Rod WX-5803...

  • Page 32: Parts Illustration - Crx Central Gearbox

    PARTS ILLUSTRATION - CRX CENTRAL GEARBOX CAUTION! ALIGN THE YOKES ‘A’ & ‘B’ IN THE ORIENTATION SHOWN WHEN CONNECTING THE WING DECK PTO SHAFTS TO THE GEARBOX. THIS IS TO ALLOW THE WINGS TO FOLD UP AND PREVENT SERIOUS DAMAGE TO THE GEARBOX AND PTO SHAFT. WHEN CONNECTING THE PTO SHAFTS, MOUNT ONE SIDE FIRST WITH THE YOKE LAYING FLAT AS SHOWN.

  • Page 33: Parts List - Crx Central Gearbox

    PARTS LIST - CRX CENTRAL GEARBOX Item No. Part No. Description WX-35180 Saddle WX-15357 4 Way Gearbox WX-15457 Gearbox Plate F-XCS1635 Countersunk Bolt WX-5103 Bucket Guard Fastening Set WX-5177 Bucket Guard WX-8281 Wide Angle PTO Shaft Not Shown WX-8281A Complete Cover For Wide Angle PTO WX-8981 Wing PTO Shaft WX-39080...

  • Page 34: Safety Training Induction

    SAFETY TRAINING INDUCTION The undersigned personnel have been trained in the safe use of this Wessex machine and have understood the contents of the Operator’s Manual. OPERATOR INSTRUCTOR/TRAINER Date Name Signature Name Signature...

  • Page 35: Daily Inspection Record

    DAILY INSPECTION RECORD OPERATOR’S DATE OF HOURS NAME INSPECTION...

  • Page 36: Notes

    NOTES...

  • Page 37: Ce Certificate

    CRX-320 ROLLER MOWER MARCH 2018...
  • Page 38 Wessex International Charlton House, Caxton Close, East Portway Industrial Estate, Andover Hampshire. SP10 3QN Telephone: +44 (0)1264 345870 Fax +44 (0)p1264 345880 e-mail: sales@wessexintl.com www.wessexintl.com...
