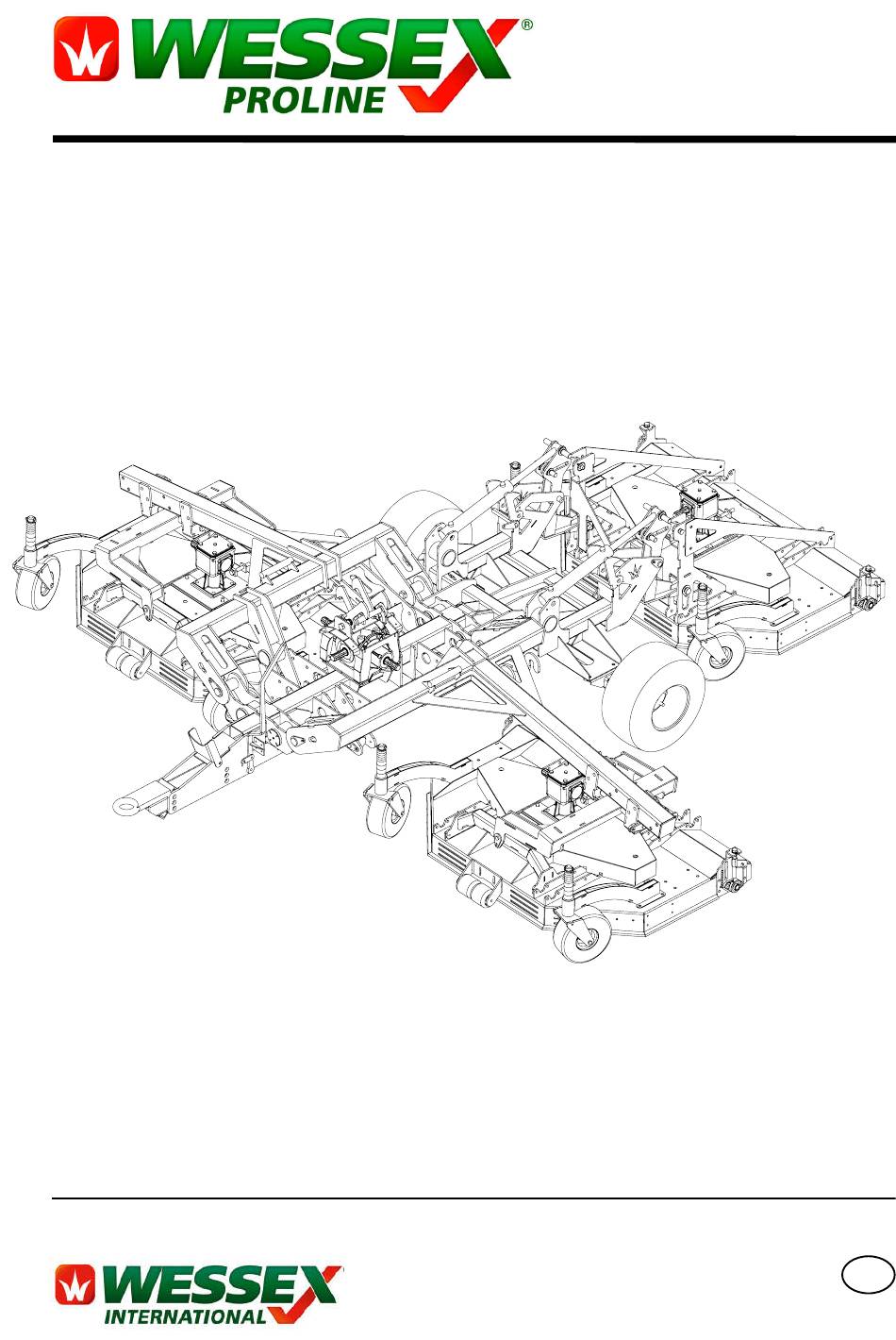

- Page 1 Operation Manual and Parts Book Wessex CRX-410 Tri-Deck Multicut Mowers Product Code: L2054 Issue September 2017...
-
Page 3: Table Of Contents
Welcome to your new Wessex Product ........ -
Page 4: Welcome To Your New Wessex Product
WELCOME TO YOUR NEW WESSEX PRODUCT Thank you for purchasing a Wessex product. As a Wessex customer, you now number among the most important people of our business and we will endeavour to give you the best service available through our dealer network. -
Page 5: Safety Decals
SAFETY DECALS GB ATTENTION Description of pictograms. ATTENTION Description des pictogrames. VORSICH Beschreigung der piktogramme. GB Read Operating manual before use. Lisez Manual D’Opéreration avant l’utilisation. Vor der Benutzung, Betriebshandbuch lesen. GB Ear defenders must be worn. Défenseurs des oreilles doivent être portés. Gehörschutz getragen werden. - Page 6 P.T.O. Shaft. Ensure that the shaft and guard is regulary greased to avoid overheating and to give lubrication. Important: Thoroughly read through the manufacturers instruction book before using the P.T.O. Shaft. P.T.O.Shafts are not covered by the Wessex Warranty.
-
Page 7: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Wessex machines are guarded for your protection, but you must always observe certain elementary precautions. Machines are potentially dangerous and should be used with the greatest respect and ALL OPERATORS MUST read this manual and be are aware of all safety precautions. -
Page 8: Warranty
WARRANTY Your Wessex product or equipment is warranted free from defect in workmanship or manufacture for one year from date of purchase. Any parts which appear to us to be defective, either in material or workmanship shall be replaced or repaired at no cost to the purchaser, subject to the following... -
Page 9: Linking Up To The Tractor
If you are unsure of the float operation for the tractor’s hydraulics consult your Wessex Dealer for advice. If the CRX Tri-deck is not operated with the tractor in float, damage to the structure of the mower may result. The CRX Tri-deck can be specified with the Wessex ProLift system that allows wing float through an electro-hydraulic block on an non floating spool tractor. -
Page 10: Altering The Cutting Height / Maintenance
ALTERING THE CUTTING HEIGHT (Rollers) 1. Lift the mower slightly off the ground on the hydraulics and switch off the tractor. 2. Loosen, but do not remove the fixing bolts (A). There are two each side of the main deck. 3. -
Page 11: Lubrication / Belt Adjustment
At the end of the grass cutting season always clean the CRX Tri-deck thoroughly and grease before winter storage. Only use genuine Wessex parts in the event of replacing worn parts. This will ensure the continued safe use of your CRX Tri-deck and the validity of your warranty. -
Page 12: Troubleshooting / Winter Storage
TROUBLESHOOTING FAULT CAUSE REMEDY Leaving wheel track uncut 1. Forward speed too fast Reduce forward speed 2. Cutting height too high Lower cutting height 3. Excessive blade wear Replace blades Bad quality of cut 1. Forward speed too fast Reduce forward speed 2. -
Page 13: Cutting Blades / Specifications
Always replace blades on both ends of bars to avoid imbalance. Always lift machine and prop the machine up with axle stands. Never get underneath an unsupported machine. Replace blade tips using new nylock locking nuts every time. SPECIFICATIONS Wessex Proline CRX Multicut Mowers Model: CRX-410 Cutting Width: 4.1m Overall Width: 4.24m... -
Page 14: Part Illustration / Parts List - Crx Mainframe
PARTS ILLUSTRATION - CRX MAINFRAME PLATE 1 11,12 PARTS LIST - CRX MAINFRAME Item CRX410 Description Part No. WX-5203 Roller Bracket Fastening Set WX-6452 Anti Scalp Roller WX-10455 Anti Scalp Roller Bracket WX-15503 Anti Scalp Roller Bolt WX-16403 Fastening Set WX-32776 Side Discharge Blanking Plate WX-4401... -
Page 15: Parts Illustration / Parts List - Crx Wheel Assembly
PARTS ILLUSTRATION - CRX WHEEL ASEMBLY PLATE 2 PARTS LIST - CRX WHEEL ASSEMBLY Item CRX410 Description Part No. WX-0627 Linch Pin WX-18051 12.5mm Spacer WX-17851 25mm Spacer WX-1550 Wheel Fork WX-4652 Wheel WX-16103 Wheel Fastening Set WX-31880 Bush WX-17251 Rear Wheel Arm WX-3503 Fastening Set (4 Bolts) -
Page 16: Parts Illustration Crx Rollers
PARTS ILLUSTRATION - CRX ROLLERS PLATE 3... -
Page 17: Parts List - Crx Rollers
PARTS LIST - CRX ROLLERS Item CRX-410 Description Part No. WX-8055 Rear Roller Fixed Plate - Left Hand WX-8155 Rear Roller Sliding Plate - Left Hand WX-10555 Front Roller Base - Left Hand WX-8355 Front Roller Arm - Left Hand WX-10155 Roller WX-0541... -
Page 18: Parts Illustration - Crx Drive And Baffles
PARTS ILLUSTRATION - CRX DRIVE AND BAFFLES PLATE 4... -
Page 19: Parts List - Crx Drive And Baffles
PARTS LIST - CRX DRIVE AND BAFFLES Item CRX-410 Description Part No. WX-5257 Gearbox CR/CRX WX-0547 WX-5103 Fastening Set WX-5177 Bucket Guard WX-27976 Gearbox Adjuster Plate WX-18777 Belt Guard - Left Hand WX-4603 Fastening Set WX-16503 Fastening Set WX-18877 Gearbox Bracket Cover WX-33176 Rear Discharge - Baffle 1 WX-33276... -
Page 20: Parts Illustration - Crx Spindle And Blade Assembly
PARTS ILLUSTRATION - CRX SPINDLE & BLADE ASEMBLY PLATE 5 4 → 8... -
Page 21: Parts List - Crx Spindle And Blade Assembly
PARTS LIST - CRX SPINDLE & BLADE ASEMBLY Item CRX150 Description Part No. WX-0246 Grease Nipple WX-5303 Pulley Fastening Set WX-18166 Pulley Spacer WX-1722 Circlip WX-0838 Bearing WX-5966 Spindle Bearing Housing WX-0938 Bearing WX-6066 Cutter Spindle WX-5966B Spindle Assembly WX-3503 Housing Fastening Set WX-0147 WX-0220... -
Page 22: Parts Illustration - Gearbox
PARTS ILLUSTRATION - CRX DECK GEARBOX - PART No. WX-5257 PLATE 6... -
Page 23: Parts List - Gearbox
PARTS LIST - CRX DECK GEARBOX PART No. WX-5257 Item No. Part No. Description GXS-0.141.2100.00 Input Shaft GXS-8.7.0.00744 Oil Cap GXS-8.0.1.00870 Bearing GXS-0.259.7500.00 Shim Kit GXS-8.4.1.00993 GXS-0.133.5000.00 Crown Gear Z34 GXS-8.6.5.00006 Plug GXS-8.5.2.00648 Snap Ring GXS-0.113.7500.00 Shim Kit GXS-8.1.1.00054 Bolt GXS-0.205.1300.00 Cover GXS-8.0.1.00000... -
Page 24: Parts Illustration - Crx Trideck Chassis
PARTS ILLUSTRATION - CRX TRI-DECK CHASSIS PLATE 7 12,13... -
Page 25: Parts List - Crx Trideck Chassis
PARTS LIST - CRX TRI-DECK CHASSIS Item No. Part No. Description WX-35780 Deck Latch Hook WX-35380 Cable Pull Lever WX-11828 Hydraulic Ram Pin (Up to 2016) WX-2526 Hydraulic Ram Pin (2017 on) WX-13128 Hydraulic Ram Pin Bush (From 2017 only) WX-12257 Breather Plug WX-1854... -
Page 26: Parts Illustration - Crx Central Gearbox
PARTS ILLUSTRATION - CRX CENTRAL GEARBOX PLATE 8 CAUTION! ALIGN THE YOKES ‘A’ & ‘B’ IN THE ORIENTATION SHOWN WHEN CONNECTING THE WING DECK PTO SHAFTS TO THE GEARBOX. THIS IS TO ALLOW THE WINGS TO FOLD UP AND PREVENT SERIOUS DAMAGE TO THE GEARBOX AND PTO SHAFT. -
Page 27: Parts List - Crx Central Gearbox
PARTS LIST - CRX CENTRAL GEARBOX Item No. Part No. Description WX-35180 Saddle WX-15357 4 Way Gearbox WX-15457 Gearbox Plate F-XCS1635 Countersunk Bolt WX-5103 Bucket Guard Fastening Set WX-5177 Bucket Guard WX-8281 Wide Angle PTO Shaft WX-8181 Wing PTO Shaft WX-39080 Rubber Buffer WX-8481... -
Page 28: Parts Illustration - Crx Wing Mounts
PARTS ILLUSTRATION - CRX WING MOUNTS PLATE 9... -
Page 29: Parts List - Crx Wing Mounts
PARTS LIST - CRX WING MOUNTS Item No. Part No. Description WX-21579 Wing Arm - Left Hand WX-21679 Wing Arm - Right Hand WX-11528 Lower Gimbal Pin WX-36080 Wing Gimbal Arm - Left Hand WX-36180 Wing Gimbal Arm - Right Hand WX-35980 Wing Gimbal Bracket With Tab WX-11428... -
Page 30: Parts Illustration - Crx Deck Latches
PARTS ILLUSTRATION - CRX DECK LATCHES PLATE 10... -
Page 31: Parts List - Crx Deck Latches
PARTS LIST - CRX DECK LATCHES Item No. Part No. Description WX-6125 Torsion Spring (Rear Deck) Left Hand WX-32980 Rear Deck Latch - Left Hand WX-33080 Rear Deck Latch - Right Hand WX-10028 Bush - Rear Deck Latch WX-33180 Sleeve - Rear Deck Latch WX-17403 Rear Deck Latch - Fastening Set WX-6025... -
Page 32: Parts Illustration - Crx Rear Chassis
PARTS ILLUSTRATION - CRX REAR CHASSIS PLATE 11... -
Page 33: Parts List - Crx Rear Chassis
PARTS LIST - CRX REAR CHASSIS Item No. Part No. Description WX-1854 WX-8028 Bearing Pin - Rear Mower Linkage WX-17203 Bearing Pin - Fastening Set WX-32980 Rear Deck Latch - Left Hand WX-39380 Mudguard Bracket - Left Hand WX-39480 Mudguard Bracket - Right Hand WX-11158 Mudguard Stay Bracket WX-30401... -
Page 34: Parts Illustration - Crx Rear Deck Mount And Lightboard
PARTS ILLUSTRATION - CRX REAR DECK MOUNT AND LIGHTBOARD PLATE 12... -
Page 35: Parts List - Crx Rear Deck Mount And Lightboard
PARTS LIST - CRX REAR DECK MOUNT AND LIGHTBOARD Item No. Part No. Description WX-21879 Rear A Frame Brace WX-36976 Light Bar Bracket - Right Hand WX-17676 Light Bar WX-37076 Light Bar Bracket - Left Hand WX-21779 Rear A Frame WX-3503 Fastening Set WX-0127... -
Page 36: Pto Shaft Operation And Maintenance
PTO SHAFT OPERATION AND MAINTENANCE IMPORTANT! P.T.O. drive shafts must only be used for their intended purpose. P.T.O. drive shafts are designed for specific machine types and power requirements. They must not be replaced by other models. Ensure that the P.T.O. drive shaft is securely connected. Only use a completely protected drive system: P.T.O. - Page 37 PTO SHAFT OPERATION AND MAINTENANCE LENGTH ADJUSTMENT To adjust the length, hold the half-shafts next to each other in the shortest working position and mark them. Shorten inner and outer guard tubes equally. Shorten inner and outer sliding profiles by the same length as the guard tubes.
-
Page 38: Safety Training Induction
SAFETY TRAINING INDUCTION The undersigned personnel have been trained in the safe use of this Wessex machine and have understood the contents of the Operator’s Manual. OPERATOR INSTRUCTOR/TRAINER Date Name Signature Name Signature... -
Page 39: Daily Inspection Record
Spindle Rotor, remove tangled objects Inspect condition of Blades All bolts and nuts, re-tighten if req’d. Grease Rotor Bearings Grease Roller Bearings Check Gearbox Oil Level Inspect Roller Scraper Wire Inspect condition of Belts Inspect tension of Belts... -
Page 40: Notes
NOTES... -
Page 41: Ce Certificate
CRX-410 MULTICUT MOWER MARCH 2016... - Page 42 Wessex International Charlton House, Caxton Close, East Portway Industrial Estate, Andover Hampshire. SP10 3QN Telephone: 01264 345870 Fax 01264 345880 e-mail: sales@wessexintl.com www.wessexintl.com...
