Summary of Contents for Wessex WFM 125

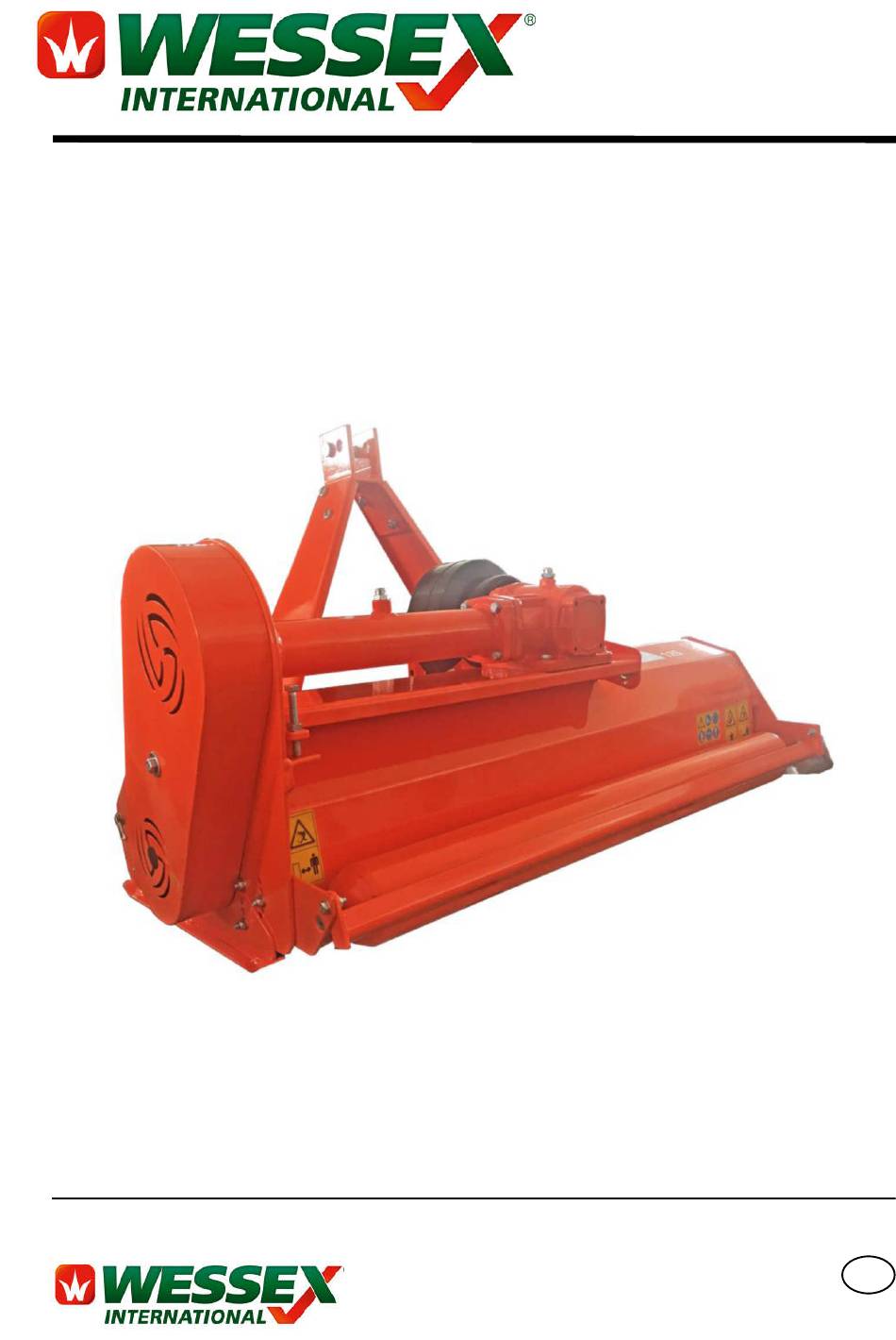

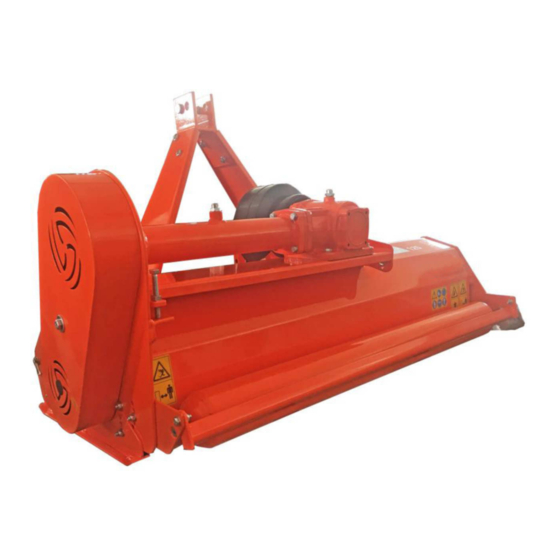

- Page 1 Operation Manual and Parts Book Wessex WFM125 Flail Mowers Product Code: L2065 Issue November 2018...
-
Page 3: Table Of Contents
Welcome to your new Wessex Product ........ -
Page 4: Welcome To Your New Wessex Product
WELCOME TO YOUR NEW WESSEX PRODUCT Thank you for purchasing a Wessex product. As a Wessex customer, you now number among the most important people of our business and we will endeavour to give you the best service available through our dealer network. -
Page 5: Safety Decals
SAFETY DECALS GB ATTENTION Description of pictograms. ATTENTION Description des pictogrames. VORSICH Beschreigung der piktogramme. GB Read Operating manual before use. Lisez Manual D’Opéreration avant l’utilisation. Vor der Benutzung, Betriebshandbuch lesen. GB Ear defenders must be worn. Défenseurs des oreilles doivent être portés. Gehörschutz getragen werden. - Page 6 P.T.O. Shaft. Ensure that the shaft and guard is regulary greased to avoid overheating and to give lubrication. Important: Thoroughly read through the manufacturers instruction book before using the P.T.O. Shaft. P.T.O.Shafts are not covered by the Wessex Warranty.
-
Page 7: Important Safety Warnings
IMPORTANT SAFETY WARNINGS Wessex machines are guarded for your protection, but you must always observe certain elementary precautions. Machines are potentially dangerous and should be used with the greatest respect and ALL OPERATORS MUST read this manual and be are aware of all safety precautions. -
Page 8: Warranty
WARRANTY Your Wessex product or equipment is warranted free from defect in workmanship or manufacture for one year from date of purchase. Any parts which appear to us to be defective, either in material or workmanship shall be replaced or repaired at no cost to the purchaser, subject to the following... -
Page 9: Linking Up To The Tractor
LINKING UP TO THE TRACTOR 1. Reverse your tractor up to the machine and connect the lower links, left hand first to the link pins on the machine, securing with lynch pins. Adjust the right hand tractor lift arm to ensure that the mower is level from side to side. -
Page 10: Adjusting The Cutting Height / Flail Mower Adjustment
USING THE MOWER 13. Ensure that there are no bystanders or animals within 20 metres before starting the mower. Keep the output of the tractor at 540 RPM. 14. Before cleaning, repairing and lubricating the machine, stop the motor and remove the key. ADJUSTING THE HEIGHT To get the most out of your flail mover, it should be set within the recommended height. -
Page 11: Belt Adjustment
BELT ADJUSTMENT 6. Measure the clearance between the bottom of the extended blades and the ground:- Minimum 50mm. Note in rough or lumpy paddocks the clearance needs to be increased to ensure that the blades don’t impact the ground in operation. 7. -
Page 12: Starting The Machine
STARTING THE MACHINE Before starting the machine, control and adjust the following items:- Tension of driving belts. Oil level of gearbox. All lubrication points. Check all bolts, nuts and screws are tight. Lift the mover off the ground before starting. SERVICE FLUIDS AND LUBRICANTS 1. -
Page 13: Maintenance
MAINTENANCE ATTENTION: All maintenance, repairing, cleaning and lubricating shall be conducted when the tractor and motor are stopped and the key is removed. By following a careful service and maintenance program for your machine, you will enjoy many years of trouble-free operation. The period recommended is based on normal operating conditions. -
Page 14: Storage
STORAGE 1. The machine should be cleaned carefully to avoid corrosion. 2. Don’t spray water on the roller bearings when cleaning the machine with a high pressure washer. 3. Check and clean the P.T.O. and the driving belt tension roller, or replace them if they are not in good condition. -
Page 15: Specifications / Troubleshooting
SPECIFICATIONS / TROUBLSHOOTING WFM125 Working width 1229 mm Recommended 25-30hp tractor HP 3-point hitch type Cat.I Number of ‘Y’ blades Number of Hammer Flails PTO input speed 540 rpm 3 Belts Side transmission A Section Weight (driveline not included) 280kg PROBLEM POSSIBLE CAUSE POSSIBLE SOLUTION... -
Page 16: Parts Illustration - Mainframe Assembly
PARTS ILLUSTRATION - MAINFRAME... -
Page 17: Parts List - Mainframe Assembly
PARTS LIST - MAINFRAME Item No. Part No. Description Qty. SS-EF.100.00.018 Top Link Bracket SS-DIN11023 Lynch Pin - 8 x 40 SS-EF100.00.019 Top Pin SS-GB6184-86 Nut - M12 SS-GB97.1-85 Washer - M12 SS-GB5783-86 Bolt - M12 x 30 SS-EF100.00.016 3 Point Linkage - Left Hand SS-EF100.00.020 3 Point Linkage - Right Hand SS-EFR105.105... - Page 18 PARTS ILLUSTRATION - MAINFRAME...
- Page 19 PARTS LIST - MAIN FRAME Item No. Part No. Description Qty. SS-GB5782-86 Bolt - M10 x 80 SS-GB1171-74 Belt - A930 SS-EF100.00.013A Mower Deck SS-EF100.00.106 Bushing SS-EF100.00.014 Lower Pin SS-EF100.00.018A Skid - Right Hand SS-GB6184-86 Nut - M8 SS-EF100.00.015 Brackets For Gearbox SS-GB5783-86 Bolt - M10 x 70 SS-GB6170-86...
-
Page 20: Shaft - Operation And Maintenance
PTO SHAFT OPERATION AND MAINTENANCE IMPORTANT! P.T.O. drive shafts must only be used for their intended purpose. P.T.O. drive shafts are designed for specific machine types and power requirements. They must not be replaced by other models. Ensure that the P.T.O. drive shaft is securely connected. Only use a completely protected drive system: P.T.O. - Page 21 PTO SHAFT OPERATION AND MAINTENANCE LENGTH ADJUSTMENT To adjust the length, hold the half-shafts next to each other in the shortest working position and mark them. Shorten inner and outer guard tubes equally. Shorten inner and outer sliding profiles by the same length as the guard tubes.
-
Page 22: Safety Training Induction
SAFETY TRAINING INDUCTION The undersigned personnel have been trained in the safe use of this Wessex machine and have understood the contents of the Operator’s Manual. OPERATOR INSTRUCTOR/TRAINER Date Name Signature Name Signature... -
Page 23: Daily Inspection Record
DAILY INSPECTION RECORD OPERATOR’S DATE OF HOURS NAME INSPECTION... -
Page 24: Notes
NOTES... -
Page 25: Ce Certificate
WFM 125 FLAIL MOWER MARCH 2018... - Page 26 Wessex International Charlton House, Caxton Close, East Portway Industrial Estate, Andover Hampshire. SP10 3QN Telephone: 01264 345870 Fax 01264 345880 e-mail: sales@wessexintl.com www.wessexintl.com...
