FEATURES:
•
1/3" Sony Super Had CCD
•
550 TV Lines of Resolution
•
3.6mm Fixed Lens Included
•
Minimum Illumination of 0.3 Lux
•
Can be Semi-Flush or Surface Mounted
•
IP-66 Rated Vandal Resistant Aluminum Enclosure with
Polished Chrome Finish
•
12VDC Operation

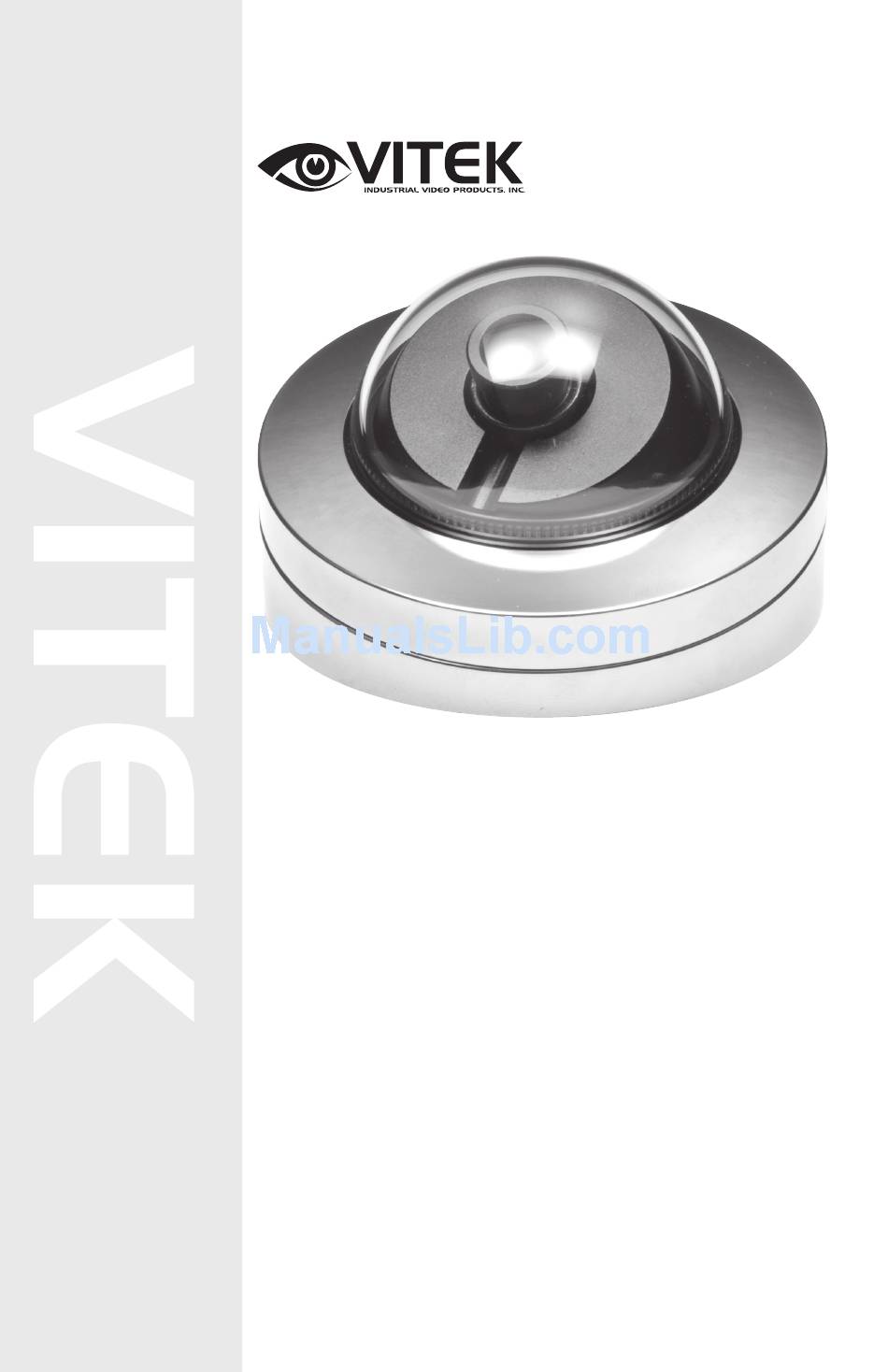

VTD-MD5CH
Vandal Resistant Mini Dome
Camera
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Vitek VTD-MD5CH
Summary of Contents for Vitek VTD-MD5CH
- Page 1 VTD-MD5CH Vandal Resistant Mini Dome Camera FEATURES: • 1/3” Sony Super Had CCD • 550 TV Lines of Resolution • 3.6mm Fixed Lens Included • Minimum Illumination of 0.3 Lux • Can be Semi-Flush or Surface Mounted • IP-66 Rated Vandal Resistant Aluminum Enclosure with Polished Chrome Finish •...
- Page 2 INSTALLATION Open Close 1) Align the camera unit with the 5) Use the supplied the four screws(F) surface of the ceiling, make marks to secure the middle base(F) to the on the ceiling in the places where bottom base(G) the screw holes are to be drilled, 6) Tighten the guide ring(C), then and then drill the three holes.
-
Page 3: Specifications
SPECIFICATIONS VTD-MD5CH Image Sensor 1/3” Super HAD CCD Sync System Internal Scanning system 2:1 Interlace Lens 3.6mm Fixed Iris Lens Included Horizontal Resolution 550 TV Lines Min. Illumination 0.3Lux S/N Ratio More than 52dB AGC OFF at 50IRE Video Output 1.0Vp-p composite, 75 Ohms... - Page 4 The product must not have been tampered with in any way then the guarantee will be considered null and void. This guarantee does not affect your statutory rights. Contact VITEK directly for all servicing. 28492 Constellation Road ValenCia, Ca 91355 WWW.ViteKCCtV.CoM...
