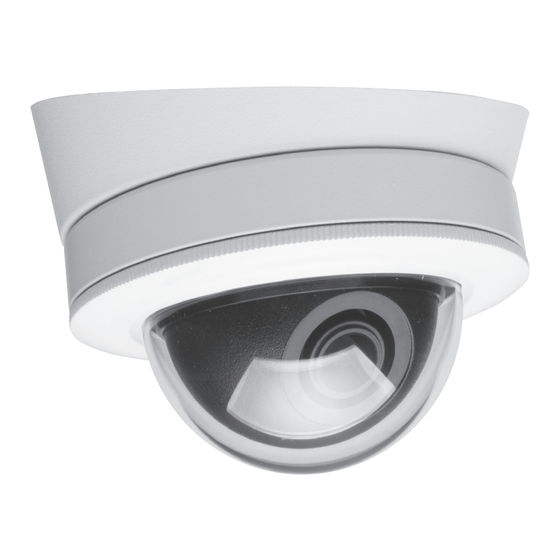

Vitek VTD-MD2-4 Manual

2.1 megapixel 4-in-1 hda angled mini dome cameras

Download this manual

FEATURES:

• 1/2.8" Sony STARVIS CMOS Sensor

• HD-TVI / AHD / CVI / CVBS Video Output

• Advanced Starlight Technology Offers Dramatically Higher

Sensitivity to Light Producing Color Images in Very Dark &

Night Scenes

• 3.0mm Lens Included

• Included tilted surface mount allows for more versatile camera

angle

• Digital Wide Dynamic Range (D-WDR)

• 3D-DNR - Three Dimensional Motion Adaptive Noise Reduction

• External OSD Joystick Controller

• Advanced OSD Functions: BLC/HLC, D-WDR, Motion detection,

Privacy mask, Flip, DeFog

• CoC (Control Over COAX)

• Over 1500' HD Video Transmission (Depending on cable

characteristics and integrity)

• Can be Semi-Flush or Surface Mounted

• Available in Ivory (VTD-MD2-4I) or Chrome (VTD-MD2-4CH)

• 12VDC Operation

• 3 Year Warranty

VTD-MD2-4

2.1 Megapixel 4-in-1 HDA

Angled Mini Dome Cameras

Need help?

Do you have a question about the VTD-MD2-4 and is the answer not in the manual?

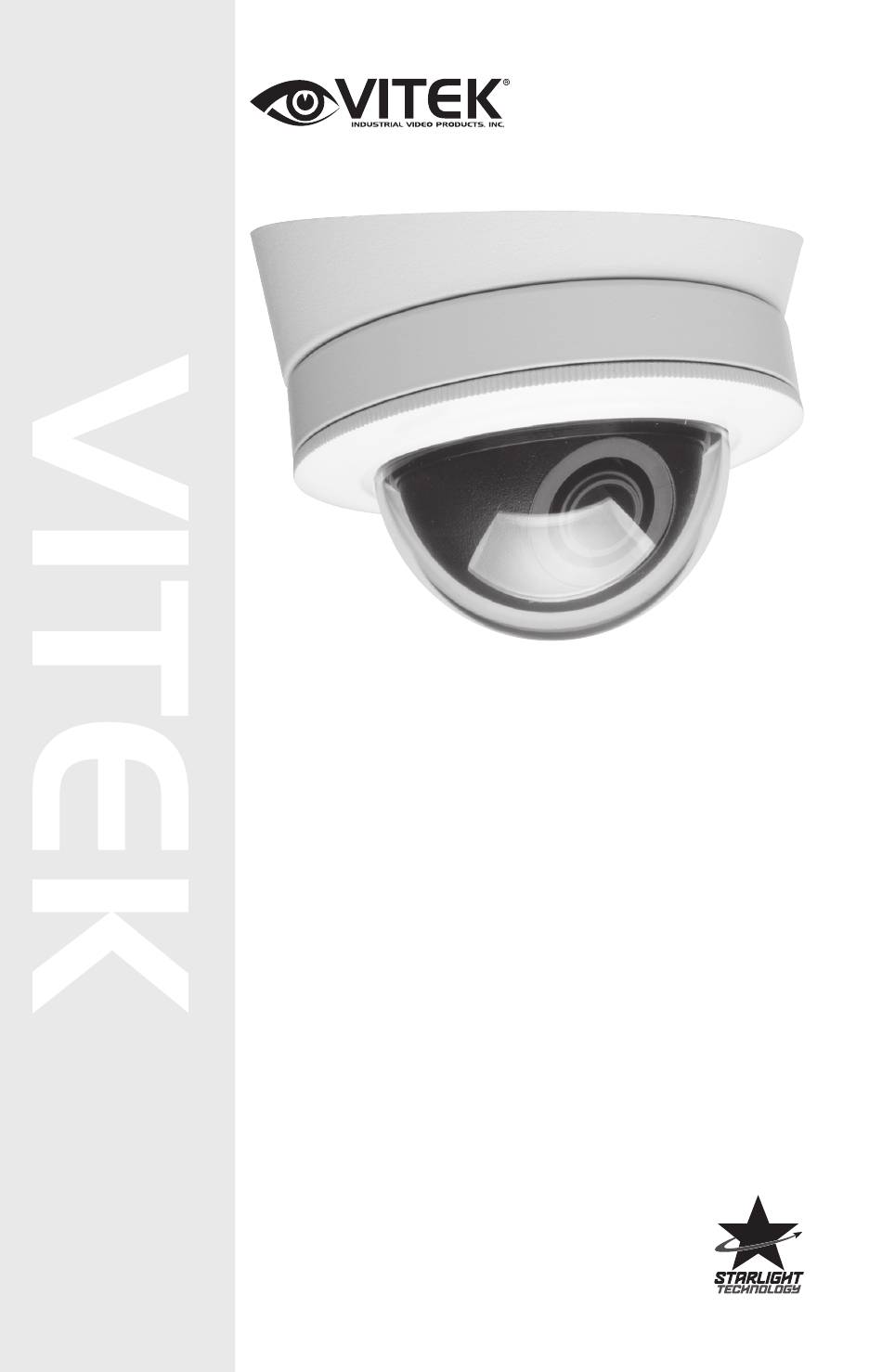

Page 1 VTD-MD2-4 2.1 Megapixel 4-in-1 HDA Angled Mini Dome Cameras FEATURES: • 1/2.8” Sony STARVIS CMOS Sensor • HD-TVI / AHD / CVI / CVBS Video Output • Advanced Starlight Technology Offers Dramatically Higher Sensitivity to Light Producing Color Images in Very Dark &...
Page 2 INSTALLATION / SETUP INCLUDED IN THE BOX: 1) Mini Dome Camera 3) Wall Mount & Camera Mount Screws 2) Mounting Base 4) L-Wrench. INSTALLATION: 1) Attach the surface mount bracket to 3) Attach the dome cover to the camera by turning clockwise. the wall or ceiling with the included screws.
Page 3: Specifications
2.1 Megapixel 4-in-1 HDA Angled Mini Dome Camera - Chrome VTD-MD2-4I 2.1 Megapixel 4-in-1 HDA Angled Mini Dome Camera - Ivory VITEK Dome Miniature - 4-IN-1 Chrome Dome - 2.1MP (888) VITEK-70 | WWW.VITEKCCTV.COM 28492 Constellation Road Valencia, CA 91355 CYAN MAGENTA YELLOW BLACK...
Page 4 (3) years, or as otherwise stated above, from the date of purchase by the end user. This warranty is nontransferable and extends only to the original buyer or end user customer of a Vitek Authorized Reseller. The product must have been used only for its intended purpose, and not been subjected to damage by misuse, wilful or accidental damage, caused by excessive voltage or lightning.
