Summarization of Contents
Important Safety Instructions
Electric Shock Hazard
Instructions to reduce the risk of electric shock by not removing the apparatus cover.
Fire and Moisture Warning
Warning to reduce the risk of fire or electric shock by not exposing the apparatus to rain or moisture.

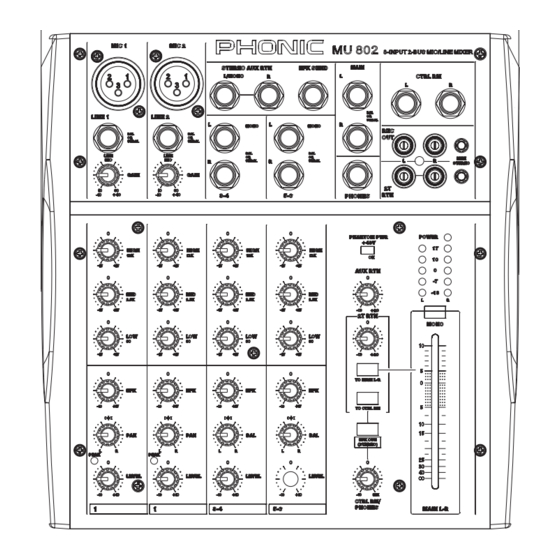

Making Connections
XLR Microphone Jacks
Accepts 3-pin XLR inputs for balanced and unbalanced signals, used with professional microphones.
Line Inputs
Accepts 1/4" TRS or TS inputs for balanced or unbalanced signals, used with various line-level devices.
INS (Insert) (MU 502 Only)
TRS phone jack for adding external devices like dynamic processors or equalizers to the mono input channel.
Stereo Channels
Features two 1/4" TRS phone jacks for stereo line-level inputs, flexible for mono or stereo use.
Main L and R Outputs
Outputs the final stereo balanced line level signal to external devices like amplifiers and speakers.
Stereo AUX Return (MU 802 Only)
1/4" TS inputs for returning audio processed by an external signal processor to the mixer.
Rear Panel
Power Switch
Switch used to turn the mixer on and off.
Power Connector
Port for connecting the external power supply to the mixer.
Controls and Settings
Line/Mic Gain Control
Controls input signal sensitivity for Line/Microphone inputs, adjusted for maximum audio use.
High Frequency Control
Provides shelving boost or cut of +/-15 dB for high frequency (12 kHz) sounds.
Middle Frequency Control (MU 802 and 1002)
Provides peaking boost/cut for middle frequencies (2.5 kHz) +/-15 dB.
Low Frequency Control
Provides shelving boost or cut of +/-15 dB for low frequency (80 Hz) sounds.
High-Pass Filter (75 Hz) (MU 502 and 1002)
Activates a high-pass filter reducing frequencies below 75 Hz to remove noise.
EFX Control (MU 802 and 1002)
Alters signal level sent to EFX SEND output for external signal processors.
+4 / -10 Switch (MU 1002)
Adjusts input sensitivity to adapt to different operating levels of external devices.
Pan / Balance Controls
Alternates audio degree/level sent to left and right sides of the main mix.
Master Section
EFX Master Control (MU 1002)
Adjusts the final level of the EFX mixing bus sent to the EFX Send output.
AUX Stereo Return Control (MU 802)
Adjusts signal level of audio fed through AUX Stereo Return inputs to the MAIN L-R mix.
2T Return Controls
Selects destination of 2T Return signal (Main L/R, Phones, or Control Room).
EFX Cue Button (MU 802 and 1002)
Sends stereo EFX signal to the Control Room/Phones mixing bus with priority.
Phantom Power Switch
Activates +48V phantom power for microphone inputs, allowing condenser microphones.
Phones (Ctrl Rm/Phones) Control
Adjusts audio level for phones feed and/or Control Room output.
