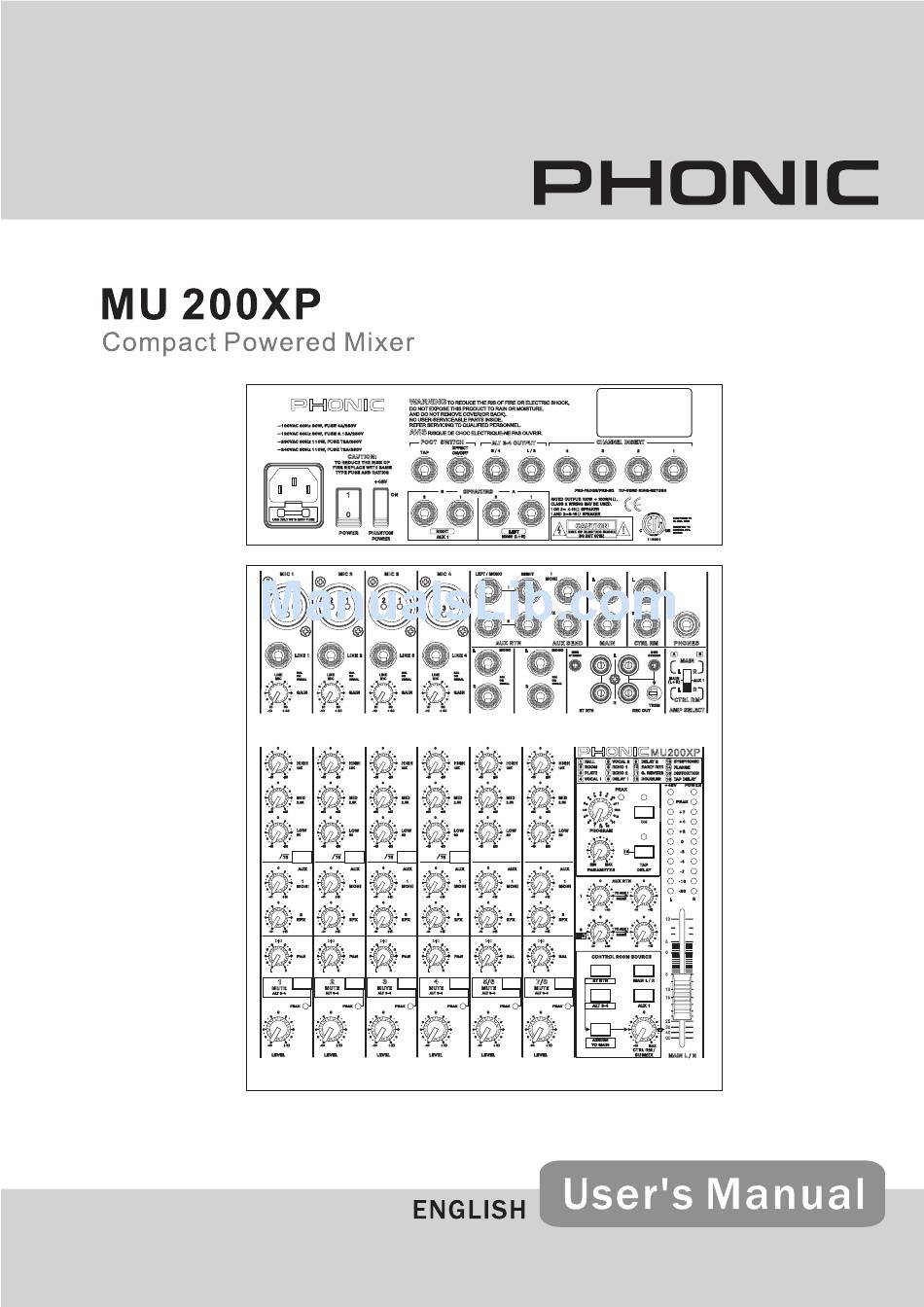

  • Page 1 V1.5 2004/10/13...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS 1. Read these instructions before operating this apparatus. ������� 2. Keep these instructions for future reference. ���� �� �������� ����� �� ��� ���� 3. Heed all warnings to ensure safe operation. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, 4.

  • Page 3: Table Of Contents

    MAKING CONNECTIONS..................6 CONTROLS AND SETTINGS .................. 8 APPLICATION ......................11 DIGITAL EFFECT TABLE ..................12 BLOCK DIAGRAM....................13 SPECIFICATIONS ....................14 DIMENSIONS......................16 APPENDIX ......................17 Phonic reserves the right to improve or alter any information suppied within this document without prior notice. V1.1 DEC 17, 2004...

  • Page 4: Introduction

    – display similar proficiency that previ- 4 mono mic/line channels ous Phonic products have shown; with more than a few 2 stereo channels and 2 stereo aux returns refinements, of course. The entire MU series features full...

  • Page 5: Channel Setup

    0 dB. 7. This channel is now ready to be used; you can stop making the audio signal. 8. You can repeat the same process for other channels. Or not, it’s your call. PHONIC CORPORATION MU 200XP USER’S MANUAL Page 5...

  • Page 6: Making Connections

    Main L-R mix- and speakers (depending on your desired settings), to ing bus. the mixer. Page 6 MU 200XP USER’S MANUAL PHONIC CORPORATION...

  • Page 7: Rear Panel

    Fuse holder, located above the AC Power connector, is, of course, for the MU 200XP’s fuse. If the fuse happens to blow, open the holder cover, and replace the fuse with a suitable replacement (as indicated about the power connector). PHONIC CORPORATION MU 200XP USER’S MANUAL Page 7...

  • Page 8: Controls And Settings

    Page 8 MU 200XP USER’S MANUAL PHONIC CORPORATION...

  • Page 9: Master Section

    This will adjust the appropriate one main parameter of the digital effect that is applied to the audio feed. Please refer to the digital effects table for more information on effect parameters. PHONIC CORPORATION MU 200XP USER’S MANUAL Page 9...
  • Page 10 1 level controls are to a minimum, and that the Assign To Main button is released, and you can turn the AUX 1 up control of any input channel to track it's signal. Page 10 MU 200XP USER’S MANUAL PHONIC CORPORATION...

  • Page 11: Application

    Combining the use of different instruments with the mixer’s special functions (such as digital effect processing) will ensure that your audio sounds exactly the way you want it. PHONIC CORPORATION MU 200XP USER’S MANUAL Page 11...

  • Page 12: Digital Effect Table

    0 – 99% a button twice or by use of a footswitch. The TAP DELAY amount of feedback is adjusted using the 100 ms (600bpm) – PARAMETER control. Delay Time 2690 ms (22.3bpm) Page 12 MU 200XP USER’S MANUAL PHONIC CORPORATION...

  • Page 13: Block Diagram

    BLOCK DIAGRAM PHONIC CORPORATION MU 200XP USER’S MANUAL Page 13...

  • Page 14: Specifications

    Frequency Response (Mic input to any output) 20Hz ~ 60KHz +0/-1 dB 20Hz ~ 100KHz +0/-3 dB Crosstalk (1KHz @ 0dBu, 20Hz to 20KHz bandwidth, channel in to main L/R outputs) Page 14 MU 200XP USER’S MANUAL PHONIC CORPORATION...
  • Page 15 Hi EQ 12 KHz Low cut filter 75Hz (-18dB/oct) Power Requirement(depends on region) 100VAC, 120VAC, 220~240VAC, 50/60Hz Power consumption (average max.) 100W Net Weight 3.2 kg (7 lbs) Dimensions (WxHxD) 274.8x100x270.3 mm (10.8”x3.9”x10.6”) PHONIC CORPORATION MU 200XP USER’S MANUAL Page 15...

  • Page 16: Dimensions

    DIMENSIONS 100.0 / 3.9 274.8 / 10.8 92.8 / 3.7 240.0 / 9.4 82.0 / 3.2 68.0 / 2.7 95.3 / 3.8 Measurements are shown in mm/inch Page 16 MU 200XP USER’S MANUAL PHONIC CORPORATION...

  • Page 17: Appendix

    APPENDIX REFERENCE BOOKS Phonic recommends the following books for those interested in advanced audio engineering and sound system operation: l Sound System Engineering by Don and Carolyn Davis, Focal Press, ISBN: 0-240-80305-1 l Sound Reinforcement Handbook by Gary D. Davis, Hal Leonard Publishing Corporation, ISBN: 0-88188-900-8...
