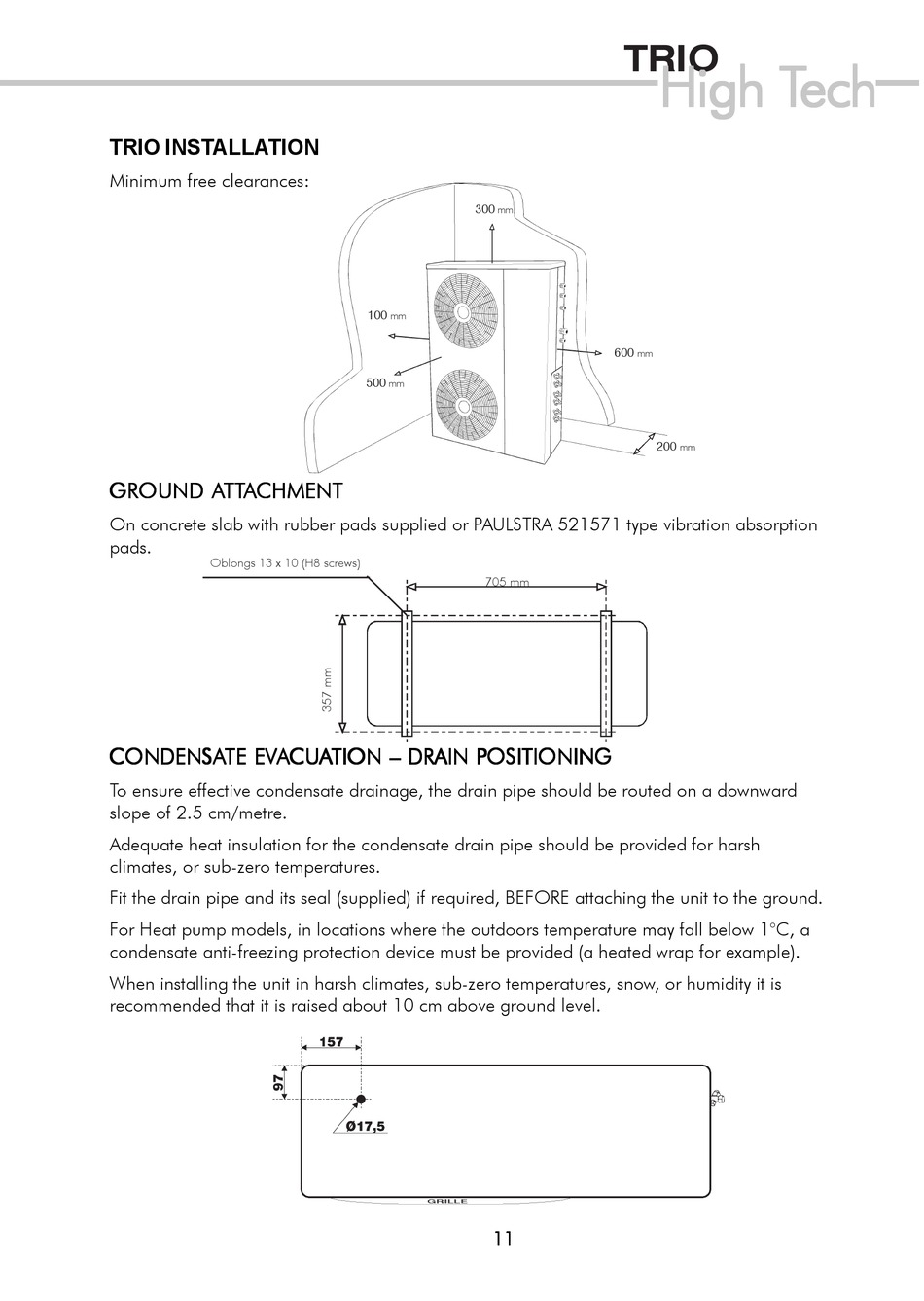

TRIO INSTALLATION
Minimum free clearances:
GROUND A GROUND A

GROUND ATT TT TT TT TTA A A A A CHMENT

GROUND A GROUND A CHMENT CHMENT CHMENT CHMENT
On concrete slab with rubber pads supplied or PAULSTRA 521571 type vibration absorption
pads.
Oblongs 13 x 10 (H8 screws)
CONDENSA CONDENSA TE EV TE EVA A A A A CU TE EV
CONDENSA CONDENSA CONDENSATE EV TE EV
To ensure effective condensate drainage, the drain pipe should be routed on a downward
slope of 2.5 cm/metre.
Adequate heat insulation for the condensate drain pipe should be provided for harsh
climates, or sub-zero temperatures.
Fit the drain pipe and its seal (supplied) if required, BEFORE attaching the unit to the ground.
For Heat pump models, in locations where the outdoors temperature may fall below 1°C, a
condensate anti-freezing protection device must be provided (a heated wrap for example).
When installing the unit in harsh climates, sub-zero temperatures, snow, or humidity it is
recommended that it is raised about 10 cm above ground level.
