Water source heat pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

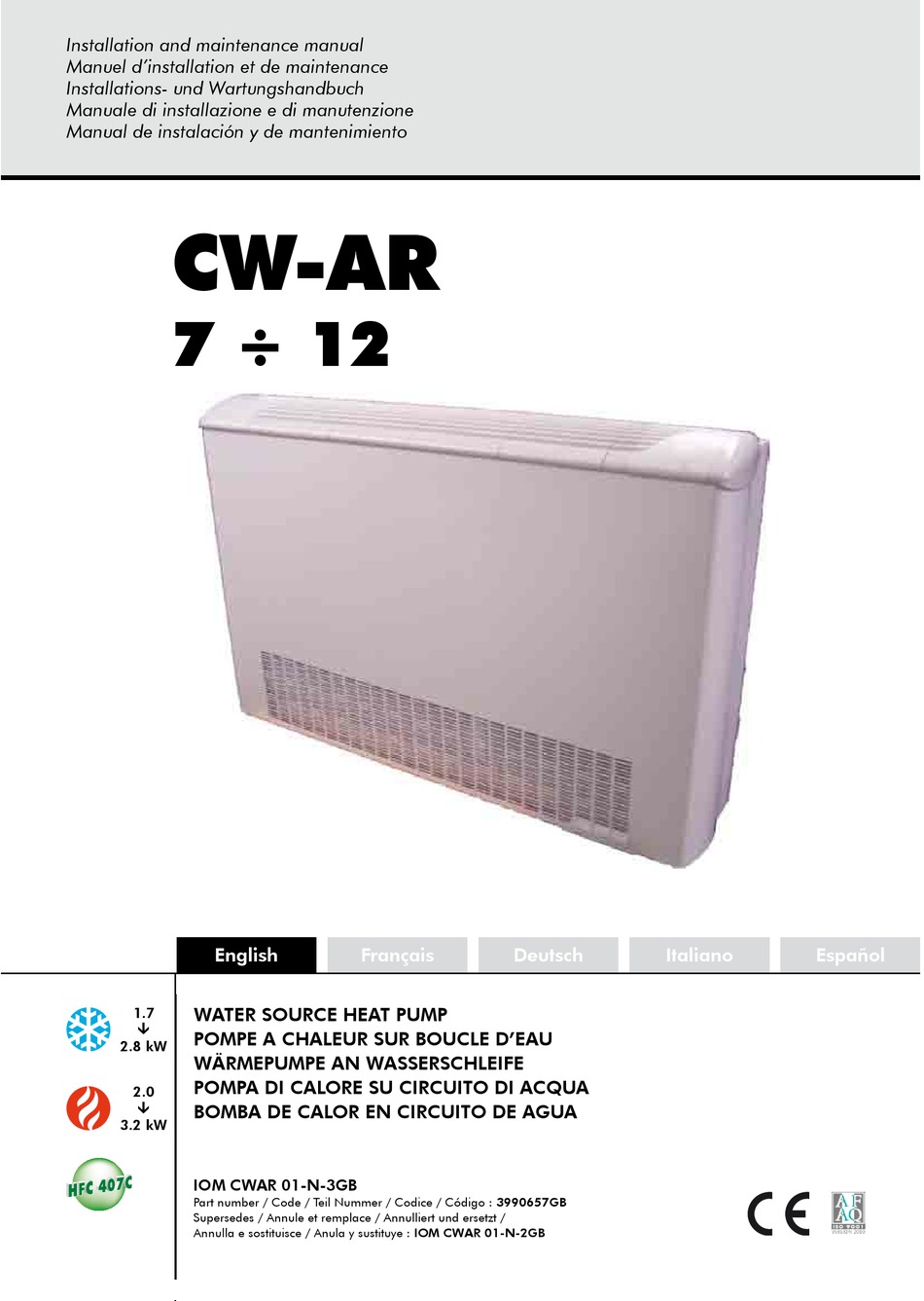

Installation and maintenance manual
Manuel d'installation et de maintenance
Installations- und Wartungshandbuch
Manuale di installazione e di manutenzione
Manual de instalación y de mantenimiento
CW-AR
7 ÷ 12
English
WATER SOURCE HEAT PUMP
1.7
Ü
POMPE A CHALEUR SUR BOUCLE D'EAU
2.8 kW
WÄRMEPUMPE AN WASSERSCHLEIFE
POMPA DI CALORE SU CIRCUITO DI ACQUA
2.0
Ü
BOMBA DE CALOR EN CIRCUITO DE AGUA
3.2 kW
IOM CWAR 01-N-3
IOM CWAR
Part number / Code / Teil Nummer / Codice / Código : 3990657
Part number / Code / Teil Nummer / Codice / Código :
Supersedes / Annule et remplace / Annulliert und ersetzt /
Supersedes / Annule et remplace / Annulliert und ersetzt /
Annulla e sostituisce / Anula y sustituye : IOM CWAR 01-N-2
Annulla e sostituisce / Anula y sustituye : IOM CWAR
Français
01-N-3GB
Deutsch
3990657GB
01-N-2GB
Italiano
Español

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CW-AR and is the answer not in the manual?

Questions and answers

Related Manuals for Airwell CW-AR

Summary of Contents for Airwell CW-AR

  • Page 1 Installation and maintenance manual Manuel d’installation et de maintenance Installations- und Wartungshandbuch Manuale di installazione e di manutenzione Manual de instalación y de mantenimiento CW-AR 7 ÷ 12 English Français Deutsch Italiano Español WATER SOURCE HEAT PUMP Ü POMPE A CHALEUR SUR BOUCLE D’EAU 2.8 kW...
  • Page 3 INSTALLATION INSTRUCTION NOTICE D’INSTALLATION INSTALLATIONSHANDBUCH ISTRUZIONI INSTALLAZIONE INSTRUCCIONES DE INSTALACIÓN...

  • Page 4: Table Of Contents

    CONTENTS 1. GENERAL RECOMMENDATIONS ..........................3 1.1. SAFETY DIRECTIONS ....................................3 1.2. WARNING ........................................3 1.3. EQUIPMENT SAFETY DATA .................................... 4 2. INSPECTION AND STORAGE ............................. 5 3. WARRANTY................................5 4. CONTENTS OF PACKAGE ............................5 5. TECHNICAL SPECIFICATIONS ............................ 6 5.1.

  • Page 5: General Recommendations

    POWER SUPPLY MUST BE SWITCHED OFF BEFORE STARTING WORK IN THE ELECTRIC CONTROL BOX 1. GENERAL RECOMMENDATIONS The purpose of this Manual is to provide users with instructions for installing, commissioning, using and maintaining the units. It does not contain the complete description of all the maintenance operations guaranteeing the unit’s long life and reliability.

  • Page 6: Equipment Safety Data

    1.3. EQUIPMENT SAFETY DATA Safety Data R407C Toxicity In contact with skin Liquid splashes or sprays may cause freeze burns. Unlikely to be hazardous by skin absorption. However, R407C may be slightly irritant and, if liquid, it has a strong degreasing effect. Flush contaminated skin areas with running water.

  • Page 7: Inspection And Storage

    2. INSPECTION AND STORAGE At the time of receiving the equipment carefully cross check all the elements against the shipping documents in order to ensure that all the crates and boxes have been received. Inspect all the units for any visible or hidden damage. In the event of shipping damage, write precise details of the damage on the shipper’s delivery note and send immediately a registered letter to the shipper within 48 hours, clearly stating the damage caused.

  • Page 8: Technical Specifications

    5. TECHNICAL SPECIFICATIONS 5.1. OPERATING LIMITS 5.1.1. ENVIRONMENT This equipment is designed EXCLUSIVELY for INDOOR installation. In general, sheltered locations such as garages, roof space, etc, do not provide sufficient protection against extreme temperatures and/or humidity and may be harmful to the unit’s performance, reliability and service life. 5.1.2.

  • Page 9: Dimensions

    6. DIMENSIONS SEE APPENDIX 7. HANDLING The appliance may be handled with a pallet truck or a forklift truck. 7.1. NET WEIGHT MODELS STANDARD SURBAISSE STANDARD SURBAISSE STANDARD SURBAISSE WITH CASING WEIGTH WITHOUT CASING 8. ELECTRIC SPECIFICATIONS 8.1. ELECTRICAL POWER SUPPLY A variance of ±10% is acceptable in relation to the operating voltage marked on the appliance’s Maker’s Plate.

  • Page 10: Installation

    9. INSTALLATION The unit is not designed to withstand weights or stresses from adjacent equipment, pipe work or constructions. Any foreign weight or stress on the unit structure could lead to a malfunction or a collapse with dangerous consequences for personnel and property. In such an event, the warranty shall be null and void.

  • Page 11: Unit Installation

    9.3. UNIT INSTALLATION 9.3.1. CABINET REMOVAL When removing cabinet do not pull or lift it up by the discharge grilles, to avoid any damages on articulated fasteners of the access doors. No tools are required to remove the casing. You just have to lift it up slightly to release the olive-shaped attachment studs from the buttonholes.

  • Page 12: Hydraulic Connections

    10. HYDRAULIC CONNECTIONS 10.1. RECOMMENDATIONS FOR HYDRAULIC CONNECTIONS 1. It is recommended that all units are connected to a water supply and return pipe system of the Tickelman Loop type. The Tickelman Loop system is self-balancing and thus only requires manual balancing if a large number of units with different flow and pressure loss characteristics are connected to a single hydraulic loop.

  • Page 13: Recommendations For Cleaning And Flushing Out The System

    8. No point of the condensates drainage pipe work should be located above the level of one of the units’ condensate drainage outlet connection. 9. The circuits’ high points must be bled of air. 10. Comply with current regulations in terms of dielectric isolation of the connectors and the pipe work. 10.2.

  • Page 14: Connection Positions

    10.3. CONNECTION POSITIONS Factory-configured water connections are available in 4 different positions: ² right side ² left side ² rear panel ² underneath (option not available when the air filter is fitted underneath the appliance) 11. WIRING DIAGRAM AND LEGEND 11.1.

  • Page 15: Electrical Connections

    11.2.2.4. CONTROL AND REGULATION ICT : Anti-freezing protection sensors RT : Air temperature sensor LWT : Outlet water temperature sensor SM : Remote ON/OFF switch, 100 m maximum (Not supplied -Please consult us for longer distances) CLK : CLOCk input remote ON/OFF 11.2.2.5.

  • Page 16: Electrical Power Supply Connection

    12.1. ELECTRICAL POWER SUPPLY CONNECTION The position of the electrical connections depends on the type of appliance and the chosen options. The electrical connections can be made either on the connection box on the right hand side or on the top of the appliance, or on a remote terminal box located on the left hand side of the appliance.

  • Page 17: Rcl And Μbms Control Modules Wiring

    13. RCL AND µBMS CONTROL MODULES WIRING 13.1. RCL Unscrew the lower screw on the RCL control. Separate the RCL control from its support bracket with the help of a flat bladed screwdriver Lower screw Checking the support bracket : Ensure that the wall surface is completely flat at the point where you wish to install the RCL control, as it is important that the support bracket is not twisted on installation, because any bending could lead to the control not clipping together properly and result in operating difficulties.
  • Page 18 Set the DIP switches marked J1 and J2 in accordance with your configuration nd the modes that are accessible. Dips switches J1 and J2 for parameterisation RCL control recommended Accessible modes PLUG setting Dip J1 Dip J2 Cool Heat Auto RC - RH - SH RC - RH - SH Clip the RCL control onto the support bracket.

  • Page 19: Μbms

    13.2. µBMS The µBMS control module must be connected in accordance with the diagram below. Use screened twisted pair telephone wire with a section of between 0.12 and 0.5 mm²for wiring the control modules. Refer to the following chapter for detail of the appliances’ addressing. The use of the µBMS recall command is not compatible with the modbus communication.

  • Page 20: Appliance Configuration

    13.3. APPLIANCE CONFIGURATION 13.3.1. FACTORY CONFIGURATION Type Description Cooling and thermodynamic Heating Thermodynamic Cooling + thermodynamic Heating or electric heating depending on appliance return water temperature Cooling only Cool + heat by electric heat Jumper Configuration Normal mode Forced mode dry contact (remote ON/OFF) 13.3.2.

  • Page 21: Return Air Temperature Measurement

    13.4. RETURN AIR TEMPERATURE MEASUREMENT As the default factory setting, the jumpers are configured so that return air temperature measurement is performed via a sensor located on the RCL control module. If the RCL control module is not sited in the air-conditioned premises or is sited at a distance for various reasons, we recommend the use of the Return sensor (RT) located on the appliance itself.

  • Page 22: Rcl Only

    The maximum distance between the RCL and the first unit is 30 metres. The maximum distance between the RCL and the furthest unit is 100 metres. 100 m maximum between the 100m MAXI RCL and the last appliance. CW-AR 1 CW-AR 2 CW-AR 3 CARTE CARTE...

  • Page 23: Modbus

    The maximum distance between the RCL and the furthest unit is 100 metres. The use of the µBMS recall command is not compatible with the modbus communication. The same terminals and addressing DIPs are used in both connection cases. 100m MAXI CW-AR 1 CW-AR 2 CW-AR 3 CARTE...

  • Page 24: Addressing Procedure

    13.10. ADDRESSING PROCEDURE BEFORE STARTING THE ADDRESSING PROCEDURE YOU MUST MAKE SURE THAT THE UNIT IS SWITCHED OFF AND THAT THERE IS NO POSSIBILITY OF IT STARTING UP UNEXPECTEDLY. Each machine connected to a µBMS central supervision unit or a MODBUS system must receive an address according to the procedure below.

  • Page 25: Μbms Supervision Module

    13.11. µBMS SUPERVISION MODULE The number of addresses is limited to 15 with a µBMS central supervision unit. The addressing will be performed using only DIP switches 1, 2, 3 and 4. The addressing carried out according to the table below means that all the units located in the same area will receive the same settings.

  • Page 26: Commissioning

    14. COMMISSIONING 14.1. PRE-START CHECK LIST 14.1.1. ELECTRICAL CHECK 1. Electrical installation has been carried out according to unit wiring diagram and the Supply Authority Regulations. 2. Size fuses or circuit breaker has been installed at the main switchboard. 3. Supply voltages as specified on unit wiring diagram. 4.
  • Page 27 14.2.1. DEMAND FOR COOLING 1. With the MODE key on the RCL control module, select COOL mode and then set the minimum temperature with the UP and DOWN arrows. The ambient temperature should be within the operating limits (Refer to "Operating limits"). In the same way, during the pre-commissioning checks, the exchanger pump(s) water loop inlet temperature should be within the limits corresponding to each operating mode (Refer to "Operating limits").

  • Page 28: Operating Check List

    14.3. OPERATING CHECK LIST 14.3.1. GENERAL Cheek for any unusual noises or vibration in the running components. 14.3.2. ELECTRICAL 14.3.2.1. SET POINTS 1. Set point of compressor current overload relay. 2. Set point of indoor fan motor current overload relay. 14.3.2.2.

  • Page 29: In Case Of Warranty - Material Return Procedure

    Take care It is not the manufacturer's policy to make recommendations in terms of water treatment (please contact a specialised water treatment company). However, given the critical nature of this subject, particular care should be taken to ensure that, if treatment is required, it works effectively.

  • Page 30: Maintenance

    18. MAINTENANCE The user is responsible for ensuring that the appliance is in a proper working condition and that technical installation as well as the regular maintenance operations are performed by properly trained technicians and in accordance with the instructions contained in this manual. 18.1.

  • Page 31: Air Filter

    18.5. AIR FILTER In order for the installation to operate correctly, it is essential to regularly clean the air filter located in the intake of the indoor unit. When clogged, the filter reduces the air flow through the heat exchanger of the indoor unit, which in turn reduces the efficiency of the installation and inhibits the cooling of the fan motor.

  • Page 32: Servicing Checklist

    18.7. SERVICING CHECKLIST CASING 1. Clean the outer panels. 2. Remove the panels. 3. Check that the insulation is not damaged. Repair as required. CONDENSATE DRAIN PAN 1. Check that the drainage orifices, conduits and siphon are not blocked. 2. Eliminate all accumulated dirt. 3.

  • Page 33: Trouble Shooting

    19. TROUBLE SHOOTING 19.1. FAULT FINDING 19.1.1. NEITHER THE FAN NOR THE COMPRESSOR OPERATE 1. The system is in alarm mode when the mains power supply is switched on. Check the points mentioned in the "Alarm codes" chart for diagnosis. 2.

  • Page 34: Alarm Codes

    19.1.5. APPEARANCE OF WATER DROPLETS IN THE APPLIANCE 1. Check that the condensates drainage pipe is not blocked and that water drains away normally. 2. Check the correct operation of the condensates tray anti-overflow float (Refer to «Alarm codes» chart). 3.

  • Page 35: Cooling Mode

    19.2.1. GENERAL CODES LED ALARM ACTION FOR CANCELLING FAULT FAULT POSSIBLE CAUSE CORRECTIVE ACTION CODE CODE AFTER CORRECTION Three phase power supply phase reversal Reverse 2 phases Clogged filters. Clean the filters. Lack of airflow. Check the pressure losses on the air intake duct. The fault code is automatically cancelled Broken wire at the level of the STORM2 circuit Rewire correctly (c.f.

  • Page 36: Heating Mode

    19.2.3. HEATING MODE FAULT LED LARM POSSIBLE CAUSE CORRECTIVE ACTION ACTION FOR CANCELLING FAULT CODE CODE AFTER CORRECTION Insufficient airflow Check proper fan operation. Clogged filters. Clean or replace the filters. Too high aeraulic pressure loss due to an obstruc- Test the aeraulic network.
  • Page 37 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO APPENDIX ANNEXE ANLAGE ALLEGATO ANEXO...
  • Page 38 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO APPENDIX DIMENSIONS ................................III CW-AR CAR ......................................... III CW-AR NU ..........................................IV CW-AR CARB ........................................V CW-AR NUB ........................................VI WIRING DIAGRAM ...............................VII ANNEXE DIMENSIONS ................................III CW-AR CAR ......................................... III CW-AR NU ..........................................IV CW-AR CARB ........................................V CW-AR NUB ........................................VI...

  • Page 39: Dimensions

    APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO DIMENSIONS DIMENSIONS ABMESSUNGEN DIMENSIONI DIMENSIONES CW-AR CAR 1138 1138...

  • Page 40: Cw-Ar Nu

    APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO CW-AR NU 40.5 1005 40.50 38.50 1005...

  • Page 41: Cw-Ar Carb

    APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO CW-AR CARB 1323 1323...

  • Page 42: Cw-Ar Nub

    APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO CW-AR NUB 40.5 1005 1183 1005 138.50 38.50 1144...

  • Page 43: Wiring Diagram

    APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO WIRING DIAGRAM SCHEMAS ELECTRIQUES STROMLAUFPLANS SCHEMA ELETRICO ESQUEMA ELECTRICO TAKE CARE! These wiring diagrams are correct at the time of publication. Manufacturing changes can lead to modifications. Always refer to the diagram supplied with the product. ATTENTION Ces schémas sont corrects au moment de la publication.
  • Page 44 APPENDIX / ANNEXE / ANLAGE / ALLEGATO / ANEXO WIRING DIAGRAM CWAR 7-9-12 N786 3991288 µBMS SE 4273 VIII...
