- Page 1 FWDE Series Indoor Units Outdoor Units AWSI-FWDE012-N11 AWAU-YBDE012-H11 AWSI-FWDE018-N11 AWAU-YBDE018-H11 AWSI-FWDE024-N11 AWAU-YBDE024-H11 REFRIGERANT R410A HEAT PUMP SM FWDE 1-A.1 GB MAY - 2013 Version:1...
- Page 2 LIST OF EFFECTIVE PAGES LIST OF EFFECTIVE PAGES Note: Changes in the pages are indicated by a “Revision#” in the footer of each effected page (when none indicates no changes in the relevant page). All pages in the following list represent effected/ non effected pages divided by chapters.
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents INTRODUCTION ..........................1-2 PRODUCT DATA SHEET....................... 2-1 OUTLINE DIMENSIONS......................... 3-1 WIRING DIAGRAMS ........................4-1 REFRIGERATION DIAGRAMS ...................... 5-1 EXPLODED VIEWS AND SPARE PART LISTS................6-1 SM FWDE 1-A.1 GB... -
Page 4: Introduction

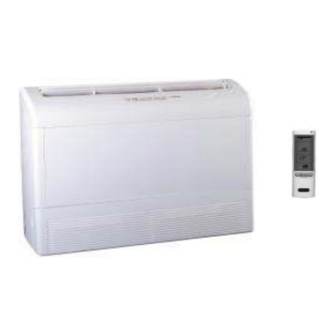

TABLE OF CONTENTS INTRODUCTION General FWDE series split celling mounted range comprise RC (heat pump) models, as follows: AWSI-FWDE012-N11// AWAU-YBDE012-H11 AWSI-FWDE018-N11// AWAU-YBDE018-H11 AWSI-FWDE024-N11// AWAU-YBDE024-H11 Main Features The FWDE series benefits from the most advanced technological innovations, namely: DCI R410A models •... - Page 5 INTRODUCTION Easily accessible, and re-usable pre-filters (mesh) • • • • Control The microprocessor indoor controller, and an infrared remote control, supplied as standard, provide complete operating function and programming. For further details please refer to the Operation Manual. Outdoor Unit The FWDE outdoor units can be installed as floor or wall mounted units by using a wall supporting bracket.
- Page 6 INTRODUCTION 1.10 Matching Table INDOOR UNITS OUTDOOR UNITS AWSI-FWDE012-N11 AWSI-FWDE018-N11 AWSI-FWDE024-N11 √ AWAU-YBDE009-H11 √ AWAU-YBDE018-H11 √ AWAU-YBDE024-H11 SM FWDE 1-A.1 GB...
-
Page 7: Product Data Sheet
PRODUCT DATA SHEET PRODUCT DATA SHEET AWSI-FWDE012-N11// AWAU-YBDE012-H11 AWSI-FWDE012-N11 Model Indoor Unit AWAU-YBDE012-H11 Model Outdoor Unit Installation Method of Pipe Flared Characteristics Units Cooling Heating Btu/hr 11940(5120~15010) Capacity (4) 3.5(1.5~4.4) Pdesign(5) Power input (4) 0.98 EER (Cooling) or COP(Heating) (4) 3.57... - Page 8 PRODUCT DATA SHEET AWSI-FWDE018-N11// AWAU-YBDE018-H11 AWSI-FWDE018-N11 Model Indoor Unit AWAU-YBDE018-H11 Model Outdoor Unit Installation Method of Pipe Flared Characteristics Units Cooling Heating Btu/hr 17000(5120~19790) Capacity (4) 5.0(1.5~5.8) Pdesign(5) Power input (4) 1.51 EER (Cooling) or COP(Heating) (4) 3.31 Energy efficiency class SEER/Energy Label 5.1/A Power supply...
- Page 9 PRODUCT DATA SHEET AWSI-FWDE024-N11 // AWAU-YBDE024-H11 AWSI-FWDE024-N11 Model Indoor Unit AWAU-YBDE024-H11 Model Outdoor Unit Installation Method of Pipe Flared Characteristics Units Cooling Heating Btu/hr 23200(5120~25930) Capacity (4) 6.80(1.50~7.60) Pdesign(5) Power input (4) 2.25 EER (Cooling) or COP(Heating) (4) 3.02 Energy efficiency class SEER/Energy Label 5.1/A Power supply...
-
Page 11: Outline Dimensions
OUTLINE DIMENSIONS OUTLINE DIMENSIONS FWDE012 FWDE018/024 SM FWD 1-A.1 GB... - Page 12 OUTLINE DIMENSIONS Outdoor Unit: YBDE 012/018 Outdoor Unit: YBD 024 SM FWD 1-A.1 GB...
-
Page 13: Wiring Diagrams
WIRING DIAGRAMS WIRING DIAGRAMS Indoor Unit: FWDE012/018 SM FWDE 1-A.1 GB... - Page 14 WIRING DIAGRAMS Outdoor Unit: YBDE012 SM FWDE 1-A.1 GB...
- Page 15 WIRING DIAGRAMS Outdoor Unit: YBDE018 SM FWDE 1-A.1 GB...
-
Page 17: Indoor Unit: Fwde
WIRING DIAGRAMS Indoor Unit: FWDE024 SM FWDE 1-A.1 GB... - Page 18 WIRING DIAGRAMS Outdoor Unit: YBDE024 SM FWDE 1-A.1 GB...
-
Page 19: Refrigeration Diagrams
REFRIGERATION DIAGRAMS REFRIGERATION DIAGRAMS Cooling Mode Heating Mode SM FWDE 1-A.1 GB... -
Page 21: Exploded Views And Spare Part Lists
EXPLODED VIEWS & SPARE PART LISTS EXPLODED VIEWS AND SPARE PART LISTS Exploded view of Indoor unit: FWDE012 SM FWDE 1-A.1 GB... - Page 22 323425 MOTOR SUPPORT LENGTH 99 263034 SWING MOTOR 436665 STEP MOTOR 455013705R Power Cord Without Plug/3G/1.5/2100 465720811 Panel Assy./PXD(Wine Cellar)Display/Airwell 467300306R Display Board / PXD Wine cellar display 373247 FAN FRAME(SMALL) 452935900R INDOOR STORM DC INVERTER CONTROLLER(ENGLISH)916A521-01 467400053 ICT Indoor Coil Temperature (RT2) sensor/10K...
- Page 23 EXPLODED VIEWS & SPARE PART LISTS Exploded view of Indoor unit: FWDE018 SM FWDE 1-A.1 GB...
- Page 24 263034 SWING MOTOR 436665 STEP MOTOR 455013707R Power Cord Without Plug/3G/2.5/2100 465720811 Panel Assy./PXD(Wine Cellar)Display/Airwell 467300306R Display Board / PXD Wine cellar display 373246 FAN FRAME (BIG) 452935900R INDOOR STORM DC INVERTER CONTROLLER(ENGLISH)916A521-01 467400053 ICT Indoor Coil Temperature (RT2) sensor/10K...
- Page 25 EXPLODED VIEWS & SPARE PART LISTS Exploded view of Indoor unit: FWDE024 SM FWDE 1-A.1 GB...
- Page 26 307980 466100005R Metal Motor Assy./ PXD DCI 263034 SWING MOTOR 436665 STEP MOTOR 465720811 Panel Assy./PXD(Wine Cellar)Display/Airwell 467300306R Display Board / PXD Wine cellar display 373246 FAN FRAME (BIG) 452935900R INDOOR STORM DC INVERTER CONTROLLER 467400053 ICT Indoor Coil Temperature (RT2) sensor/10K...
- Page 27 EXPLODED VIEWS & SPARE PART LISTS Exploded view of outdoor unit: YBDE012 SM FWDE 1-A.1 GB...
- Page 28 EXPLODED VIEWS & SPARE PART LISTS Spare part list of Outdoor Unit: YBDE012 Item PN Description 433218 Front Panel A 4526340 Air inlet ring-420 4526476 Axial fan OD=401 4527092R DC MOTOR for DCI 25/35 433215 Motor Support 4523059P1 Painting Base Assy. 452808800 Partition Assy.
- Page 29 EXPLODED VIEWS & SPARE PART LISTS Exploded view of outdoor unit: YBDE018 SM FWDE 1-A.1 GB...
- Page 30 EXPLODED VIEWS & SPARE PART LISTS 6.10 Spare part list of Outdoor Unit: YBDE018 Item PN Description 433218 Front Panel A 4526340 Air inlet ring-420 4519251 Axial Fan OD=400 466100034R Metal Motor /DCR 50 Z 4527203 Motor Support 464000032P1 Base Painting Assy. /ONG3/DCI 50 R410A 464730012 Partition Plate Assy./DCR 50 Z 461010005 Gas Valve 1/2"...
- Page 31 EXPLODED VIEWS & SPARE PART LISTS 6.11 Exploded view of outdoor unit: YBDE024 SM FWDE 1-A.1 GB 6-11...
- Page 32 EXPLODED VIEWS & SPARE PART LISTS 6.12 Spare part list of Outdoor Unit: YBDE024 Item Description 465100000 Grill/ DCI Trio 4522593P1 Left front plate/Painting/YBD 024 4523758 Nut M8 left 452960400 Outdoor Axial Fan OD=493 461600055 4-Way Valve Assy./ DCI 80 CR 461030003 4-Way valve coil/DCI 80 CR 4526522 FOUR-WAY VALVE (English) R410A 466110008R DC Resin Motor(SIC-71FW-F170-1A)/DCI 80 CR...
