xS
4S/5S
Manual 1.3 en

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 5S and is the answer not in the manual?

Questions and answers

Related Manuals for d&b audiotechnik 5S

Summary of Contents for d&b audiotechnik 5S

  • Page 1 4S/5S Manual 1.3 en...
  • Page 2 General information 4S/5S Manual Version: 1.3 en, 02/2016, D2607.EN .01 Copyright © 2016 by d&b audiotechnik GmbH; all rights reserved. Keep this manual with the product or in a safe place so that it is available for future reference. When reselling this product, hand over this manual to the new owner.

  • Page 3: Table Of Contents

    2.1. Product description..............5 2.2. Connections................6 2.3. Operation................7 2.3.1. Controller settings..............7 2.4. Dispersion characteristics............8 2.5. Technical specifications............8 Manufacturer's Declarations........10 3.1. EU conformity of loudspeakers (CE symbol)....... 10 3.2. WEEE Declaration (Disposal)..........10 d&b 4S/5S Manual 1.3 en...

  • Page 4: Safety Precautions

    Generally speaking, a distance of 0.5 m (1.5 ft) from magnetic data carriers (floppy disks, audio and video tapes, bank cards, etc.) is sufficient; a distance of more than 1 m (3 ft) may be necessary with computer and video monitors. d&b 4S/5S Manual 1.3 en...

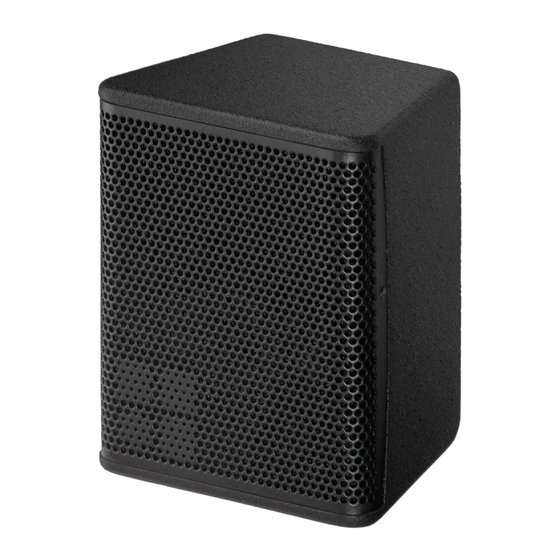

  • Page 5: S/5S Loudspeaker

    The fronts of the loudspeaker cabinets are protected by a rigid metal grill backed by an acoustically transparent foam. The 4S and 5S rear panels incorporate two M8 threaded inserts to accept the Z5401 Wall mount S. Using the M10 socket of its ball joint adapter, the loudspeakers can be connected to different d&b...

  • Page 6: Connections

    Fixed cable connection The 4S and 5S loudspeakers are each supplied with a cover plate [1] and a rubber grommet feed through [2]. For indoor operation, these items can be used to hide the connector panel, if required.

  • Page 7: Operation

    Positive CPL values create an adjustable low frequency boost (0 to +5 dB) and can be set when the system is used in full range mode without subwoofers. Fig. 7: Frequency response correction of the CPL circuit d&b 4S/5S Manual 1.3 en...

  • Page 8: Dispersion Characteristics

    Max. sound pressure (1 m, free field) with 10D/D6 114 dB with 30D/D20/D12 115 dB with D80 115 dB (SPLmax peak, pink noise test signal with crest factor of 4) Fig. 12: 4S frequency response, standard and CUT modes d&b 4S/5S Manual 1.3 en...
  • Page 9 /AWG 11) Pin assignments NL4: 1+/1– Weight 1 kg (2.2 lb) Fig. 13: 4S cabinet dimensions in mm [inch] 5S system data Frequency response (–5 dB standard mode) 80 Hz - 20 kHz Frequency response (–5 dB CUT mode) 130 Hz - 20 kHz Max.

  • Page 10: Manufacturer's Declarations

    Please dispose of this product according to the respective national regulations or contractual agreements. If there are any further questions concerning the disposal of this product, please contact d&b audiotechnik. d&b 4S/5S Manual 1.3 en...
  • Page 12 www.dbaudio.com...
