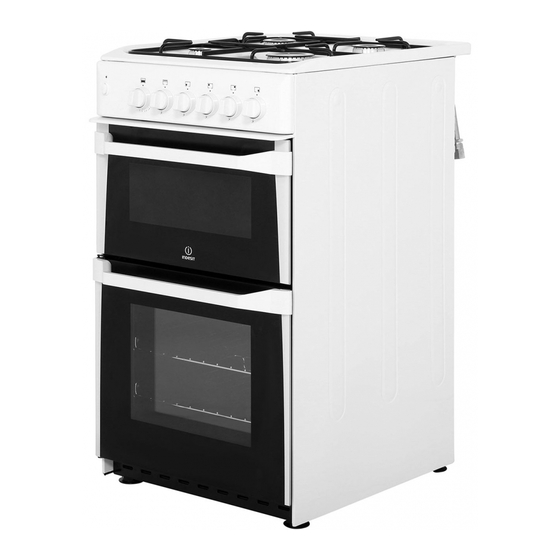

50cm Free Standing Gas Cooker
Contents
Introduction, 3
Installation, 4-8
Features, 10
Control Panel, 11
Use of hotplates, 12
Grilling, 13
Oven, 14
If it Still Won't Work..., 19
Key Contacts, 24
You must read these instructions prior to using
your appliance and retain them for future use.
GB
Advertisement
Table of Contents
Related Manuals for Indesit ITL50GW
Summary of Contents for Indesit ITL50GW
-
Page 1: Table Of Contents
Installation, 4-8 Gas connection Electrical connection Adapting the cooker to different types of gas Burner and Nozzle Specifications Safety Information, 9 Features, 10 IT50G S IT50G S IT50G S Control Panel, 11 IT50G1 S IT50G1 S IT50G1 S Use of hotplates, 12... -
Page 2: Warning,2
WARNING WARNING: The appliance and its Never use steam cleaners or pressure accessible parts become hot during use. cleaners on the appliance. Care should be taken to avoid touching Remove any liquid from hea ng elements. the lid before opening it. Do not close the Children less than 8 years of glass cover (if present) when the gas... -
Page 3: Introduction
Introduction Your new appliance is guaranteed* and will give * The guarantee is subject to the provisions that the lasting service. This guarantee is only applicable if the appliance: a. Has been used solely in accordance with the Users appliance has been installed in accordance with the Instruction Book. -
Page 4: Installation
Installation The appliance must only be installed by a ! This appliance must not be fitted on a platform. competent person. In the UK, gas safe registered The cooker is designed to fit between kitchen cabinets installers undertake to work to safe and satisfactory spaced 500mm apart. -
Page 5: Electrical Connection
! the supply cable must be positioned so that it never Connection of the appliance to the gas mains or liquid reaches at any point a temperature 50°C higher than gas must be carried out according to the prescribed the room temperature. The cable must be routed away regulation in force, and only after it is ascertained that it from the rear vents. -
Page 6: Adapting The Cooker To Different Types Of Gas
Brown - Live c) Minimum regulation of the hob burners: If the colours of the wires in the mains lead do not • turn the tap to minimum; correspond with the coloured markings identifying the • remove the knob and adjust the regulation screw, terminals in your plug, proceed as follows: which is positioned in or next to the tap pin, until the Connect Green &... - Page 7 • turn the knob to Max for about 10 minutes and then turn the knob to the Min setting; • remove the knob; • regulate the screw positioned outside the thermostat pin until the flame is small but steady. ! in the case of liquid gas, the regulation screw must be screwed in to the bottom.
-
Page 8: Burner And Nozzle Specifications
Pressures Maximum (mbar) At 15°C and 1013 mbar- dry gas Propane P.C.S. = 50,37 MJ/Kg Butane P.C.S. = 49,47 MJ/Kg Natural P.C.S. = 37,78 MJ/m IT50G S IT50G S IT50G S IT50G1 S IT50G1 S IT50G1 S IT50L S IT50L S... -
Page 9: Safety Information
Safety Information When used properly your appliance is completely • Never leave anything on the hob surface when safe but as with any electrical product there are unattended and not in use. certain precautions that must be observed. • Never remove the oven shelves whilst the oven is PLEASE READ THE PRECAUTIONS BELOW hot. -
Page 10: Features
Features GLASS COVER* HOB VENTILATION SLOTS 1900W 1900W 3000W 1000W CONTROL PANEL GRILL/MEAT PAN WITH REMOVABLE HANDLE AND WIRE FOOD SUPPORT SHELF SUPPORT GRILL MODEL & SERIAL NUMBER GRILL DOOR REMOVABLE MAIN OVEN INNER GLASS SHELF DOOR SUPPORTS OVEN ROD SHELVES *Available only on certain models... -
Page 11: Control Panel
Control Panel RIGHT GRILL RIGHT LEFT LEFT MAIN FRONT FRONT REAR REAR OVEN BURNER BURNER BURNER BURNER Control Knobs for the gas burners • The position of the gas burner controlled by each one of the knobs is shown by a solid ring . -
Page 12: Use Of Hotplates
Use of Hotplates Practical Advice on Using the Burners Each burner is fitted with a spark ignitor for lighting the gas. To ensure rapid lighting of the burners every To use the burners as efficiently as possible, some time they are used, the ignitors must be kept clean and basic guidelines should be followed: dry. -
Page 13: Grilling
Grilling Relighting‘ the burner GRILLING MUST BE DONE WITH THE GRILL DOOR OPEN. In the event of the burner flames being accidentally CONTROL KNOBS MAY BECOME HOT DURING extinguished, turn off the burner control and do not GRILLING. attempt to re-ignite the burner for at least one minute. CAUTION: ACCESSIBLE PARTS WILL BECOME HOT WHEN THE GRILL Using the grill pan kit... -
Page 14: Oven
Oven COLD START COOKING Anything requiring long slow cooking such as The oven has different heat zones - the thermostat casseroles and rich fruit cakes can be put into a cold settings refer to the temperature on the middle shelf; oven. -
Page 15: Oven Cooking Chart
Oven Cooking Chart The following times and setting are for guidance preheat for best results. Always turn the thermostat only. You may wish to alter the setting to give a result knob to Mark 9 before selecting the appropriate gas more to your satisfaction. -
Page 16: Care And Cleaning
Care and Cleaning Grill ! Oven must not be operated with inner door glass removed. Remove the grill pan and the wire grid food support, Take care during cleaning not to damage or distort it is best to wash these items immediately after use to the door seals. -
Page 17: Cooking Results Not Satisfactory
Cooking Results Not Satisfactory? Problem Check Grilling Uneven cooking front to Ensure that the grill pan is positioned centrally below the grill element. back Fat splattering Ensure that the grill is not set to too high a temperature. Ensure that the oven shelves are level by using a spirit Oven Baking level on the rod shelf and adjusting, using suitable Uneven rising of cake... -
Page 18: Something Wrong With Your Cooker
Something Wrong with your Cooker? Before contacting your nearest Service Centre/Installer, check the problem guide below; there may be nothing wrong with your cooker. Problem Check Ignition does not work If all burners fail to ignite: Check that sparks appear at the burners; A clicking noise should be heard. -
Page 19: If It Still Won't Work
If It Still Won’t Work... Contact the Service Office Respecting and conserving the environment • If something is still wrong with your appliance after you Whenever possible, avoid pre-heating the oven and have been through the ‘Something Wrong’ list: always try to fill it. Open the oven door as little as possible because heat is lost every time it is opened.ÿ... -
Page 20: Technical Characteristics
Mains frequency and voltage of the electric section and characteristics of the gas section Model Gas section Electric section Rated power Class Voltage kW (1) IT50G S IT50G S IT50G S IT50G IT50G IT50G 12,90 (938 g/h - G30) IT50G1 S... - Page 23 We have a dedicated team who can provide free advice and assistance with your appliance if you experience any technical diffi culties within the fi rst 90 days of ownership. Simply call our Indesit Service Hotline on 08448 224 224 (Republic of Ireland 0818 313 413) for telephone assistance, or, where necessary,...
-
Page 24: Key Contacts
60044 Fabriano (AN) XEROX FABRIANO www.indesit.com After Sales Service No one is better placed to care for your Indesit appliance during the course of its working life than us – the manufacturer. Essential Contact Information Indesit Service We are the largest service team in the UK and Ireland offering you access to 400 skilled telephone advisors and 1000 fully qualifi...
