Operating Instructions
GB
English,1
IT50G
IT50G1
IT50L

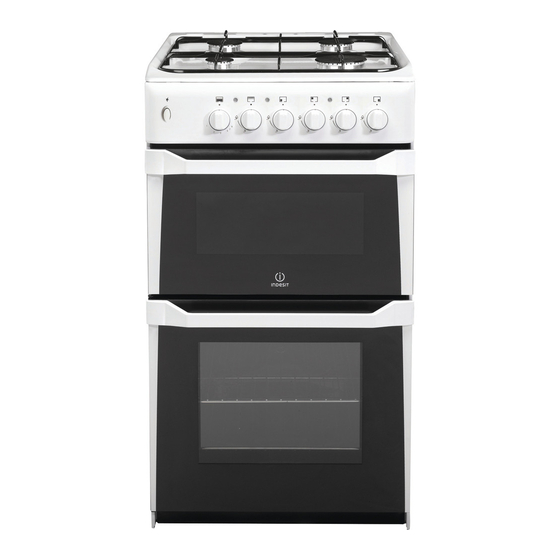

50cm Free Standing Gas Cooker
Contents
Introduction, 2
Installation, 3-7
Features, 9
Control Panel, 10
Use of hotplates, 11
Grilling, 12
Oven, 13
If it Still Won't Work..., 18
Key Contacts, 23
You must read these instructions prior to using
your appliance and retain them for future use.
GB
Advertisement
Table of Contents
Related Manuals for Indesit IT50G
Summary of Contents for Indesit IT50G
-
Page 1: Table Of Contents
Adapting the cooker to different types of gas Burner and Nozzle Specifications Safety Information, 8 Features, 9 Control Panel, 10 Use of hotplates, 11 Grilling, 12 IT50G Oven, 13 IT50G1 Oven cooking charts, 14 IT50L Care and Cleaning, 15 Cooking Results Not Satisfactory?, 16 Something Wrong With Your Cooker?, 17 If it Still Won’t Work..., 18... -
Page 2: Introduction
Introduction Your new appliance is guaranteed* and will give * The guarantee is subject to the provisions that lasting service. This guarantee is only applicable if the appliance: the appliance has been installed in accordance with a. Has been used solely in accordance with the the installation instructions detailed in this booklet. -
Page 3: Installation
Installation ! This appliance must not be fitted on a platform. The appliance must only be installed by a The cooker is designed to fit between kitchen competent person. In the UK, CORGI registered cabinets spaced 500mm apart. The space either installers undertake to work to safe and side need only be sufficient to allow withdrawal of satisfactory standards. -
Page 4: Gas Connection
Gas connection Electrical connection The cooker should be connected to the gas-supply Power supply voltage and frequency: 230-240V a.c. by a corgi registered installer. During installation of 50Hz. this product it is essential to fit an approved gas tap ! the supply cable must be positioned so that it to isolate the supply from the appliance for the never reaches at any point a temperature 50°C convenience of any subsequent removal or... -
Page 5: Adapting The Cooker To Different Types Of Gas
rating of 45 amp. In this case the cable is not a ) a ) a ) a ) replace the hose holder mounted on the appliance supplied. with that supplied in the bag of “cooker accessories”. Disposing of the plug: b )Replacing the burner nozzles on the hob: Ensure that before disposing of the plug itself, you •... - Page 6 • Pry the fixing tab “V” and remove the oven burner Important Important Important Important Important • Unscrew the oven burner nozzle using the socket On completion of the operation, replace the old spanner for the nozzles “Z” “Z” “Z” “Z”, or a 7 mm socket rating sticker with one indicating the new type of gas “Z”...
-
Page 7: Burner And Nozzle Specifications
1,00 (Small)(A) Oven 2,60 Grill 2,50 Nominal (mbar) 28-30 Supply Minimum (mbar) Pressures Maximum (mbar) At 15°C and 1013 mbar- dry gas Propane P.C.S. = 50,37 MJ/Kg Butane P.C.S. = 49,47 MJ/Kg Natural P.C.S. = 37,78 MJ/m IT50G IT50G1 IT50L... -
Page 8: Safety Information
Safety Information When used properly your appliance is completely • Never leave anything on the hob surface when safe but as with any electrical product there are unattended and not in use. certain precautions that must be observed. • Never remove the oven shelves whilst the oven is PLEASE READ THE PRECAUTIONS BELOW hot. -
Page 9: Features
Features HOB VENTILATION SLOTS 1900W 1900W 3000W 1000W CONTROL PANEL GRILL/MEAT PAN WITH REMOVABLE HANDLE AND WIRE FOOD SUPPORT GRILL MODEL & SERIAL NUMBER GRILL DOOR REMOVABLE MAIN OVEN INNER GLASS SHELF DOOR SUPPORTS OVEN ROD SHELVES... -
Page 10: Control Panel
Control Panel GRILL RIGHT RIGHT LEFT LEFT MAIN FRONT REAR REAR FRONT OVEN BURNER BURNER BURNER BURNER Control Knobs for the gas burners • The position of the gas burner controlled by each one of the knobs is shown by a solid ring . -
Page 11: Use Of Hotplates
Use of Hotplates Each burner is fitted with a spark ignitor for lighting Practical Advice on Using the Burners the gas. To ensure rapid lighting of the burners To use the burners as efficiently as possible, some every time they are used, the ignitors must be kept basic guidelines should be followed: clean and dry clean and dry... -
Page 12: Grilling
Grilling GRILLING MUST BE DONE WITH THE GRILL Relighting‘ the burner DOOR OPEN. CONTROL KNOBS MAY BECOME HOT DURING In the event of the burner flames being accidentally GRILLING. extinguished, turn off the burner control and do not CAUTION: ACCESSIBLE PARTS WILL BECOME attempt to re-ignite the burner for at least one HOT WHEN THE GRILL minute. -
Page 13: Oven
Oven The oven has different heat zones - the thermostat attempt to re-ignite the burner for at least one minute settings refer to the temperature on the middle shelf; above this shelf it is hotter and below it is cooler. COLD START COOKING Two shelves enable full use of the temperatures inside the oven. -
Page 14: Oven Cooking Chart
Oven Cooking Chart The following times and setting are for guidance minutes preheat for best results. Always turn the only. You may wish to alter the setting to give a thermostat knob to Mark 9 before selecting the result more to your satisfaction. When a different appropriate gas Mark. -
Page 15: Care And Cleaning
Care and Cleaning ! Oven must not be operated with inner door Grill glass removed. Remove the grill pan and the wire grid food support, Take care Take care Take care during cleaning not to damage or distort Take care Take care it is best to wash these items immediately after use the door seals. -
Page 16: Cooking Results Not Satisfactory
Cooking Results Not Satisfactory? Problem Check Grilling Uneven cooking front to Ensure that the grill pan is positioned centrally below back the grill element. Fat splattering Ensure that the grill is not set to too high a temperature. Oven Baking Ensure that the oven shelves are level by using a spirit level on the rod shelf and adjusting, using suitable Uneven rising of cake... -
Page 17: Something Wrong With Your Cooker
Something Wrong with your Cooker? Before contacting your nearest Service Centre/Installer, check the problem guide below; there may be nothing wrong with your cooker. Problem Check Ignition does not work If all burners fail to ignite: Check that sparks appear at the burners; A clicking noise should be heard. -
Page 18: If It Still Won't Work
If It Still Won’t Work... Contact the Service Office Spare Parts Please remember your new appliance is a complex If something is still wrong with your appliance after piece of equipment. you have been through the ‘Something Wrong’ list: ‘DIY’ repairs or unqualified and untrained service people may put you in danger, could damage the 1. -
Page 19: Technical Characteristics
Mains frequency and voltage of the electric section and characteristics of the gas section Model Gas section Electric section Rated power Class Voltage kW (1) IT50G 12,90 (938 g/h - G30) IT50G1 II2H3+ 220-240V~ 50/60Hz (921 g/h - G31) IT50L (1) The values in g/h refer to the capacities with liquid gas (Butane, Propane). - Page 22 DOMESTIC PREMISES. 5 Year Parts Guarantee Indesit also offers you a free 5 year parts guarantee. This additional guarantee is conditional on you registering your appliance with us and the parts being fitted by one of our authorised engineers. There will be a charge for our engineer’s time.
-
Page 23: Key Contacts
Key Contacts After Sales Service No one is better placed to care for your Indesit appliance during the course of its working life than us – the manufacturer. Essential Contact Information Indesit Service We are the largest service team in the UK and Ireland offering you access to 400 skilled telephone advisors and 1000 fully qualified engineers on call to ensure you receive fast, reliable, local service. - Page 24 04/2011 - 195090131.00 XEROX FABRIANO...
