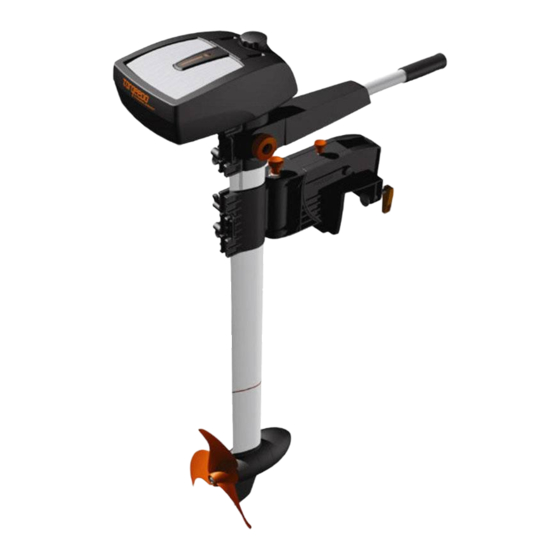

Torqeedo Travel 801 S Operating Manual
  1. Manuals
  2. Brands
  3. Torqeedo Manuals
  4. Outboard Motor
  5. Travel 801 S
  6. Operating manual

Torqeedo Travel 801 S Operating Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Travel 401 S
Travel 401 L
Travel 801 S
Travel 801 L
Operating Manual
(Englisch)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Travel 801 S and is the answer not in the manual?

Questions and answers

Related Manuals for Torqeedo Travel 801 S

Summary of Contents for Torqeedo Travel 801 S

  • Page 1 Travel 401 S Travel 401 L Travel 801 S Travel 801 L Operating Manual (Englisch)

  • Page 3: Table Of Contents

    9.4 Pylon 9.5 Optimal submergence depth 10. Dismantling 11. Storage and care instructions 11.1 Corrosion protection 11.2 Battery care 11. Other care instructions 12. Trouble-shooting 1. Technical data 14. Disposal instructions 15. Accessories 16. Torqeedo Service Centers Operating Manual Travel 401/801...

  • Page 4: Important Safety And Handling Instructions

    2. Important safety and operating instructions Important safety instructions Torqeedo motors are designed to operate safely and reliably as long as they are used according to the operating manual. Please read this manual carefully before you start the motor. Ignoring these instructions can cause property damage or personal injury.
  • Page 5 2. Important safety and operating instructions Important operating instructions Here are the most important instructions on operating Torqeedo Travel Motors. Apart from these instructions, please observe the complete operating instructions to prevent damage to your motor. • Only run the motor when the propeller is under water. If it is run in the air, the shaft sealant rings that seal the motor to the drive shaft may become damaged.

  • Page 6: Introduction

    Please take the time to read these operating instructions carefully so that you can use the motor properly and enjoy it for a long time. We constantly strive to improve Torqeedo products. Should you have any comments on the design and use of our products, we would be pleased to hear from you. Please contact our Customer Services if you have any questions on Torqeedo products (service_international@torqeedo.com).

  • Page 7: About This Instruction Manual

    3. Introduction 4. About this instruction manual 5. Conformity declaration 4. About this instruction manual This instruction manual will help you use your Torqeedo Travel 40 1/801 safely and efficiently. All information is given according to our latest knowledge. Subject to technical changes.

  • Page 8: Warranty Conditions

    6.1 Extent of warranty Torqeedo GmbH, Petersbrunner Straße a in D-8219 Starnberg, Germany, guarantees the final purchaser of a Torqeedo outboard motor that the product is free from material and manufacturing faults during the period stated below. Torqeedo will indemnify the final purchaser for any expense for the repair of a material or manufacturing fault.

  • Page 9: Warranty Process

    Before dispatching any apparently faulty goods, it is imperative to coordinate the delivery with Torqeedo Services. You can contact us by phone, email or post. You can find the contact details on the back of this manual. Please note we are unable to deal with products of which we have not been notified and will therefore refuse to accept delivery.

  • Page 10: Equipment And Operating Elements

    7. Equipment and operating elements 7.1 Supply scope The full supply scope of your Torqeedo Travel should include the following parts: • Folding shaft assembly group • Transom bracket assembly group • Tiller assembly group • Battery assembly group • Tiller handle •...

  • Page 11: Plan Of Operating Elements

    7. Equipment and operating elements 7.2. Plan of operating elements Tension screw (to fit the folding shaft) Shaft head On/off pin (to turn on/off the engine) Assembly group battery Assembly group tiller Eye (to secure the battery) Tiller handle Bolt (to fit the battery Opening button to the shaft) (to change the...

  • Page 12: Starting Up

    8. Starting up 8.1 Assembly of the drive 1. Remove all the components, assembly groups and parts delivered with your Travel from the packaging. 2. Open the folding shaft on an even surface. . Straighten out all the parts of the folding shaft. Ensure that the cable and the cable stem are not twisted.
  • Page 13 8. Starting up 5. Put the tiller handle on the tiller. Make sure you align the opening button on the tiller with the recesses in the tiller handle. The opening button must click into place audibly. 6. Place the tiller above the deadbolt (A) on the folding shaft. The steering cable must come out under the tiller.

  • Page 14: Fitting The Outboard Motor To The Boat

    • Make sure you do not crush the control cable. • Do not place the transom mount onto the shaft above the deadbolt to avoid damage to the shaft and the transom mount. • Only fix the battery pack once the drive has been mounted and straightened.
  • Page 15 10. The Travel 401/801 is ready to go. You can download a video showing the assembly of the Travel at www.torqeedo.com. • When loosening the wing nuts, hold the motor by the shaft head to avoid unintentional slipping.

  • Page 16: Operation

    9. Operation 9.1 Battery and charger The battery is equipped with high-performance lithium-manganese cells, so-called LIMA cells. The LIMA cells have a self-discharge of under 1% per month at 20°C, are cyclically stable and have no memory effect. The lithium battery can be used at an ambient temperature of between -20°C and +45°C.
  • Page 17 50°C before you use it again or before you press the „Battery charge“ button. • Only use the Travel 401 battery with the Torqeedo Travel 401 outboard motor and the Travel 801 battery only with the Travel 801.

  • Page 18: Transom Bracket

    9.2 Transom bracket The power needed for steering can be adjusted with the friction screw. Turning the screw clockwise increases the necessary steering power up to locking the motor. Turning anti- clockwise reduces the necessary steering force. Pulling the stopper button unlocks the folding mechanism. The drive can be locked into position at 0°, 8°, 16°, 24°, 6°, 49°, 62°...
  • Page 19 9. Operation STOP Continuously Continuously variable reverse variable forward Max thrust Fixed time Max range Tiller position Function Application example Continuously variable Continuously variable reverse • Maneuvring reverse drive Continuously variable Continuously variable forward • Normal steering forward drive • Maneuvring Max thrust Short term maximum thrust •...

  • Page 20: Pylon

    9.4 Pylon The motor and the electronic control system are located in the pylon. They generate the propulsion. In addition, several protective functions are integrated: 1. Temperature protection: If the motor overheats, the motor control system reduces the output of the drive until a temperature equilibrium is established between generated and disposed heat.

  • Page 21: Optimal Submergence Depth

    The submergence depth of the propeller in the water has a major impact on the efficiency of your drive. When measured by Torqeedo, depending on the submergence of the propeller, variations in the total efficiency of up to 10 percentage points, up to 20 percent for distance and up to 5 percent for maximum speed were found.

  • Page 22: Storage And Care Instructions

    • The pylon may be hot. 4. Loosen the wing nuts on the transom bracket and open the tension clamp. Pull the tiller off the shaft. 5. To remove the control cable from the tiller, press the locking switch on the plug and pull the control cable out. 6.

  • Page 23: Battery Care

    • We recommend checking the sacrificial anode once a year. The sacrificial anode is fitted to the drive shaft of the propeller. Only use Torqeedo sacrificial anodes - you can order these from your dealer or the Torqeedo Service Team.

  • Page 24: Trouble-Shooting

    12. Trouble-shooting • Repairs may only be carried out by authorized Torqeedo Service Centers. Owner‘s repair attempts immediately make the warranty claim void. • In case of a warranty claim, please follow the warranty instructions at the beginning of the instruction manual.

  • Page 25: Technical Data

    Definition of propulsion output = thrust power x speed) 14. Disposal instructions Torqeedo Travel motors are manufactured in accordance with EU Directive 2002/96. This directive regulates the disposal of electrical and electronic devices for the protection of the environment.

  • Page 26: Accessories

    100-240 V and 50-60 Hz 1115 Battery adapter cable set Travel Adapter for connecting the Torqeedo Travel 401 and 801 Models to standard lead batteries with 12 V (Travel 401) or 24 V (Travel 801), incl.  m (10 ft)

  • Page 28: Torqeedo Service Centers

    Version .0 Torqeedo Service Centers: Europe and international Torqeedo GmbH Friedrichshafener Straße 4a 82205 Gilching - Germany service@torqeedo.com T +49 - 8153 - 92 15 - 100 F +49 - 8153 - 92 15 - 319 North America Torqeedo Inc.
