Chorus+Rvb - Lexicon PCM 81 - REV 2 User Manual

PCM 81

CHORUS+RVB

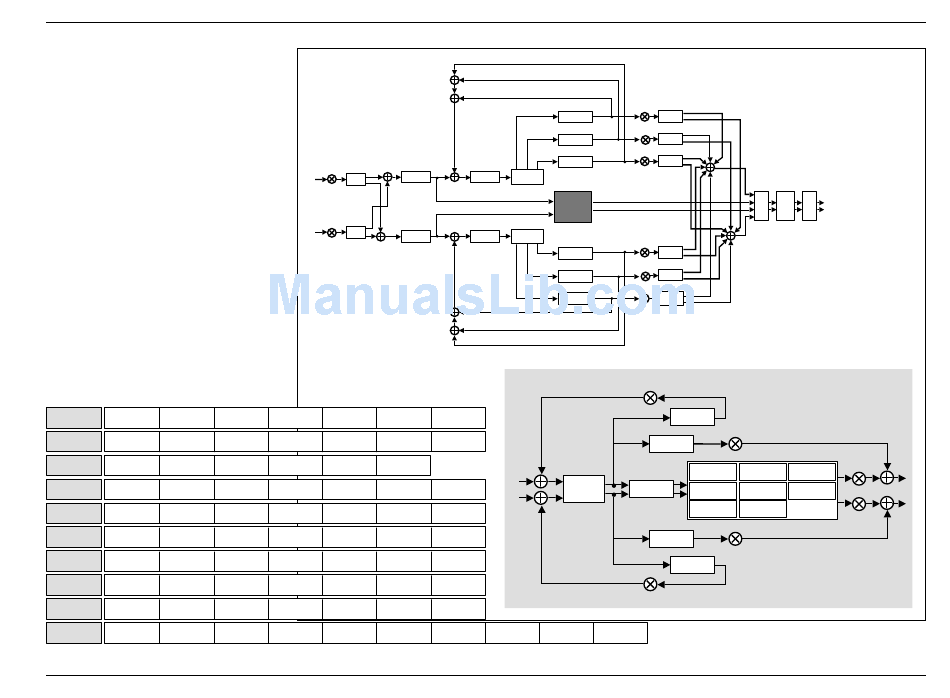

The Chorus effect has six separately
adjustable voices — allowing the
PCM 81 to sound like a rack of six
digital delay boxes. Each voice has
its own independently adjustable
chorus depth and rate, level control,
delay time, feedback and panning
control. The 6-voice chorus is in
parallel with a plate algorithm,
providing two independent stereo
effects.
Note that the Diffusion parameter
(Rvb Design 2.1) is shared by both
the reverb and the chorus effect.
0 0.0 0.1 0.2
Controls Mix FX Adjust *InLvl/Pan
1 1.0 1.1 1.2
Rvb Time Low Rt Mid Rt Crossover
2 2.0 2.1 2.2
Size Diffusion Attack
Rvb Design
3 3.0 3.1 3.2
Levels Master Voice 1 Voice 2
4 4.0 4.1 4.2
Delay Time
*Master Voice 1 Voice 2
5 5.0 5.1 5.2
Chorus
*Master *Voice 1 *Voice 2
6 6.0 6.1 6.2
Feedback Master Voice 1 Voice 2
7 7.0 7.1 7.2
Master Voice 1 Voice 2
Panning
8 8.0 8.1 8.2
Modulation Mod:LFO Mod:AR Env Mod:Env L
Patches
Patch 0 Patch 1 Patch 2
InLvl
L In
Diffusion
InPan
InPan
R In
Diffusion
InLvl
0.3 0.4 0.5 0.6
High Cut FX Mix FX Width *ADJUST
1.3 1.4 1.5
1.6
Rt HC Pre Delay *Ref Lvl/Dly
EkoFbk/Dly
2.3 2.4 2.5
Spin Link Rvb Out
3.3 3.4 3.5 3.6
Voice 3 Voice 4 Voice 5 Voice 6
4.3 4.4 4.5 4.6
Voice 3 Voice 4 Voice 5 Voice 6
5.3 5.4 5.5 5.6
*Voice 3 *Voice 4 *Voice 5 *Voice 6
6.3 6.4 6.5 6.6
Voice 3 Voice 4
Voice 5 Voice 6
7.3 7.4 7.5 7.6
Voice 3 Voice 4
Voice 5 Voice 6
8.3 8.4 8.5 8.6
Mod:Env R Mod:Latch Mod:Sw 1 Mod:Sw 2
Patch 3 Patch 4 Patch 5 Patch 6
V3 Fbk
V2 Fbk
V1 Fbk
V1 Depth, V1 Rate
V1 Lvl
V1 Chorus
V2 Depth, V2 Rate
V2 Lvl
V2 Chorus
V3 Depth, V3 Rate
V3 Lvl
V3 Chorus
1 2 3
High Cut
Delay
Plate
Delay
High Cut
4 5 6
V6 Depth, V6 Rate
V6 Lvl
V6 Chorus
V5 Depth, V5 Rate
V5 Lvl
V5 Chorus
V4 Depth, V4 Rate
V4 Lvl
V4 Chorus
V4 Fbk
V5 Fbk
V6 Fbk
EkoFbk L
Diffusion PreDelay
EkoFbk R
Patch 7 Patch 8 Patch 9
Algorithms and Parameters
V1 Pan
V2 Pan
V3 Pan
FX FX FX
Mix Width Adj
V6 Pan
V5 Pan
V4 Pan
EkoDly L
RefLvl L
RefDly L
Low Rt Mid Rt Crossover
Rt HC Size
Attack
Spin Link
RefDly R
RefLvl R
EkoDly R
Rvb Out
3-11
