Lexicon PCM80 Service Bulletin

3 Oak Park Bedford, MA 01730
Tel (781) 280-0300, Fax (781) 280-0499
email: csupport@lexicon.com
SUBJECT:
Input connector combo-XLR-1/4"TRS jack - discontinued part. P/N 510-
10880,CONN,XLR/JACK,3FC,1/4"TRS,PCRA discontinued.
REFERENCE:
ECO 981221-00
DISTRIBUTION:
International Pro Product Distributor Service Centers, Customer Service, Repair
CORRECTIVE ACTION:
13799,CONN,XLR/JACK,3FC,1/4TRS,RA,LC at locations J1 and J2. Replace jack, P/N 510-
10880,CONN,XLR/JACK,3FC,1/4"TRS,PCRA at locations J1 and J2 with jack, P/N 510-
13799,CONN,XLR/JACK,3FC,1/4TRS,RA,LC as needed for repair of units manufactured with the
original part and for repair of units manufactured with the new part.

EQUIPMENT REQUIRED:

Clean, well-lighted anti-static workbench with grounded wrist-strap
#1 Phillips Screwdriver
Solder Rework Station
Solder
Qualified technical personnel should perform this modification. Damage caused by performing this
modification may void the manufacturer's warranty or standard repair policies.
The following practices minimize possible damage to ICs resulting from electrostatic discharge or improper insertion.
•
Keep parts in original containers until ready for use.
•
Avoid having plastic, vinyl or styrofoam in the work area.
•
Wear a properly installed anti-static wrist-strap.
•
Discharge personal static before handling devices.
•
Remove and insert boards with care.
•
When removing boards, handle only by non-conductive surfaces and never touch open-edge connectors except at a static-free workstation.*
•
Minimize handling of ICs.
•
Handle each IC by its body.
•
Do not slide ICs or boards over any surface.
•
Insert ICs with the proper orientation, and watch for bent pins on ICs.
•
Use anti-static containers for handling and transport.
* To make a plastic-laminated workbench anti-static, wash with a solution of Lux liquid detergent, and allow to dry without rinsing.

INSTRUCTIONS:

Note: The profile of the new part is different from the original part. If there is any concern regarding
"cosmetic appearance" if only one connector requires replacement, replace both connectors.
Please contact LEXICON CUSTOMER SERVICE with any questions.
SBPCM8191_981221_00
Date: January 14, 1999
1
SERVICE BULLETIN

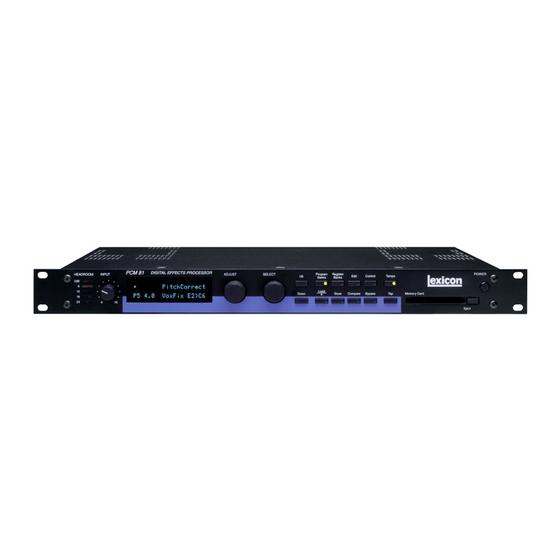

PCM80 PCM81 PCM90 PCM91
Newly manufactured units will be built with replacement jack, P/N 510-
WARNING
CAUTION
Electrostatic Discharge (ESD) Precautions
