Summarization of Contents
General Information
Introduction

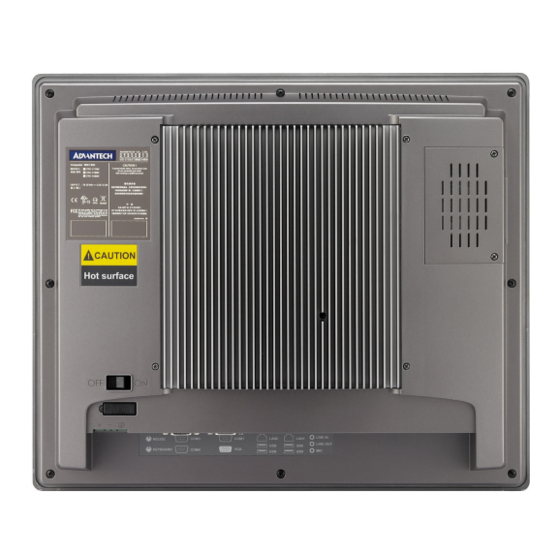

Overview of the TPC-1770/1780 HMI and its key features like fanless operation and bright display.
System Specifications
Details the system kernel, CPU, BIOS, memory, and storage for TPC-1770H and TPC-1780H models.
I/O Ports
Lists the input/output ports available on the TPC-1770H and TPC-1780H, including Ethernet, serial, and USB.
LCD Specifications
Provides technical details for the 17-inch TFT color LCD display, including resolution and luminance.
Touchscreen Specifications
Details the resistive touchscreen type, resolution, light transmission, and durability.
Power Requirements
Specifies the input voltage and current requirements for the device operation.
I/O Connectors & Setting Mode
TPC-1770 Connector Layout
Diagram and list of connectors on the TPC-1770 mainboard for various functions.
RS232 Serial Port Definitions
Pinout definitions for RS232 serial ports (COM1, COM3, COM4) used for communication.
TPC-1780 Connector Layout
Diagram and list of connectors on the TPC-1780 mainboard.
Software Configuration
Utilities and Drivers
Lists available utilities and drivers for TPC-1770/1780, including Chipset, VGA, LAN, Touchscreen, and Audio.
Windows XP Embedded
EWF (Enhanced Write Filter)
Explains Enhanced Write Filter for protecting partitions and prolonging storage lifespan.
HORM (Hibernate Once Resume Many)
Details the HORM environment for persistent hibernation and system state management.
Advantech Utilities
Describes utilities for checking version information and managing EWF/OSLock settings.
Watchdog Timer Programming
Watchdog Timer Overview
Describes the function of the watchdog timer in monitoring system software and taking corrective action.
Watchdog Timer Programming Details
Explains the I/O port addresses and registers for configuring the watchdog timer.
Watchdog Timer Example Programs
Provides assembly code examples for setting up and using the watchdog timer.
Fuse Specifications
Fuse Specifications Details
Lists the rating (250VAC, 5Amp) and size (5 x 20mm) of the device's fuse.
Fuse Replacement Procedure
Step-by-step guide for safely replacing a damaged fuse with a new one.
