About The Delays & Additional 96Khz Reverbs Package; New Stereo Delay Algorithms; New Multi-Channel Delay Algorithms; Enabling Instructions - Lexicon 960L - ADDENDUM Owner's Manual Addendum

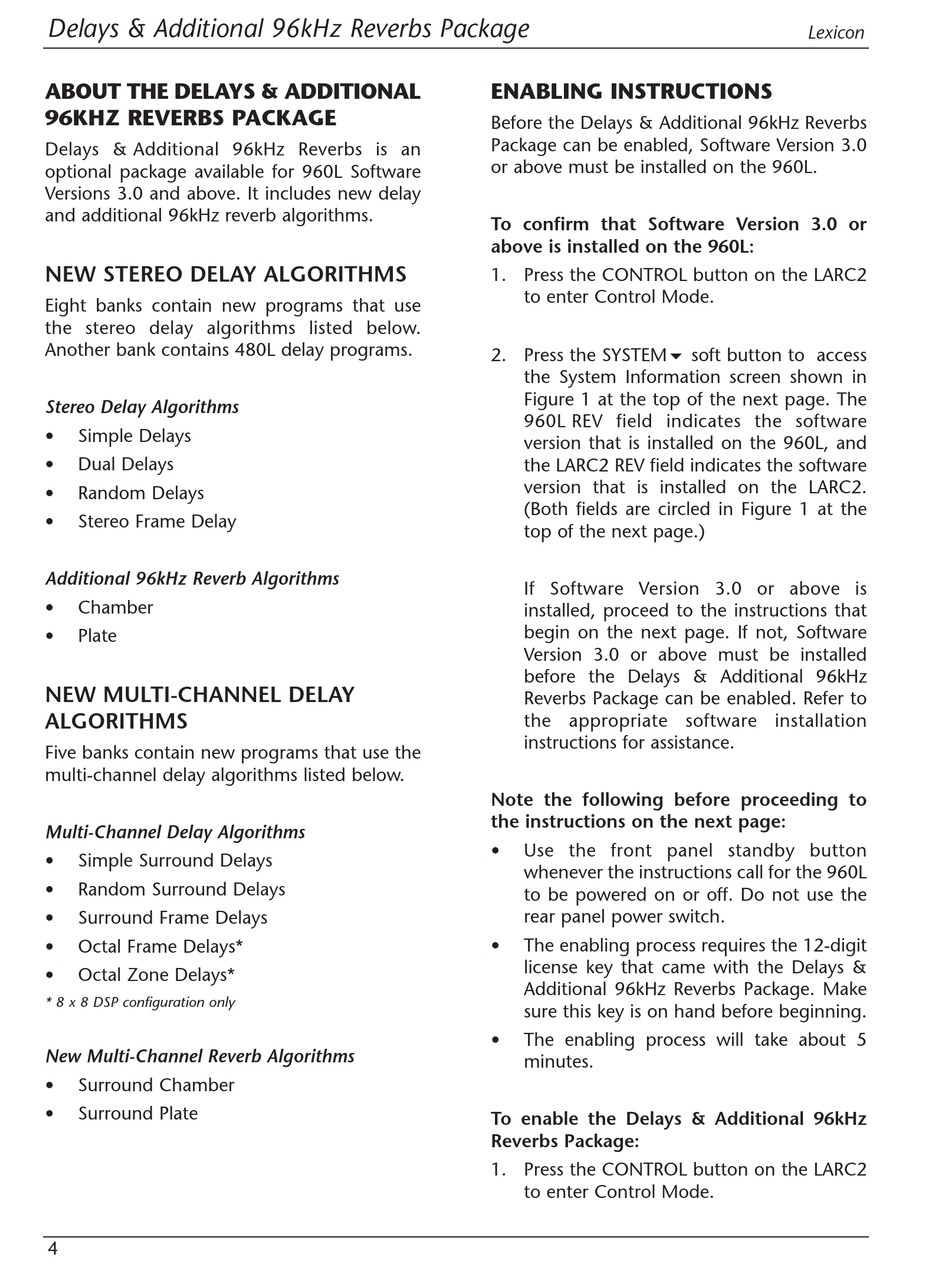

Delays & Additional 96kHz Reverbs Package
ABOUT THE DELAYS & ADDITIONAL
96KHZ REVERBS PACKAGE
Delays & Additional 96kHz Reverbs is an
optional package available for 960L Software
Versions 3.0 and above. It includes new delay
and additional 96kHz reverb algorithms.

NEW STEREO DELAY ALGORITHMS

Eight banks contain new programs that use
the stereo delay algorithms listed below.
Another bank contains 480L delay programs.
Stereo Delay Algorithms
• Simple Delays
• Dual Delays
• Random Delays
• Stereo Frame Delay
Additional 96kHz Reverb Algorithms
• Chamber
• Plate
NEW MULTI-CHANNEL DELAY
ALGORITHMS
Five banks contain new programs that use the
multi-channel delay algorithms listed below.
Multi-Channel Delay Algorithms
• Simple Surround Delays
• Random Surround Delays
• Surround Frame Delays
• Octal Frame Delays*
• Octal Zone Delays*
* 8 x 8 DSP configuration only
New Multi-Channel Reverb Algorithms
• Surround Chamber
• Surround Plate
4

ENABLING INSTRUCTIONS

Before the Delays & Additional 96kHz Reverbs
Package can be enabled, Software Version 3.0
or above must be installed on the 960L.
To confirm that Software Version 3.0 or
above is installed on the 960L:
1. Press the CONTROL button on the LARC2
to enter Control Mode.
2. Press the SYSTEM! soft button to access
the System Information screen shown in
Figure 1 at the top of the next page. The
960L REV field indicates the software
version that is installed on the 960L, and
the LARC2 REV field indicates the software
version that is installed on the LARC2.
(Both fields are circled in Figure 1 at the
top of the next page.)
If Software Version 3.0 or above is
installed, proceed to the instructions that
begin on the next page. If not, Software
Version 3.0 or above must be installed
before the Delays & Additional 96kHz
Reverbs Package can be enabled. Refer to
the appropriate software installation
instructions for assistance.
Note the following before proceeding to
the instructions on the next page:
• Use the front panel standby button
whenever the instructions call for the 960L
to be powered on or off. Do not use the
rear panel power switch.
• The enabling process requires the 12-digit
license key that came with the Delays &
Additional 96kHz Reverbs Package. Make
sure this key is on hand before beginning.
• The enabling process will take about 5
minutes.
To enable the Delays & Additional 96kHz
Reverbs Package:
1. Press the CONTROL button on the LARC2
to enter Control Mode.
Lexicon
