ALGORITHM DIAGRAMS

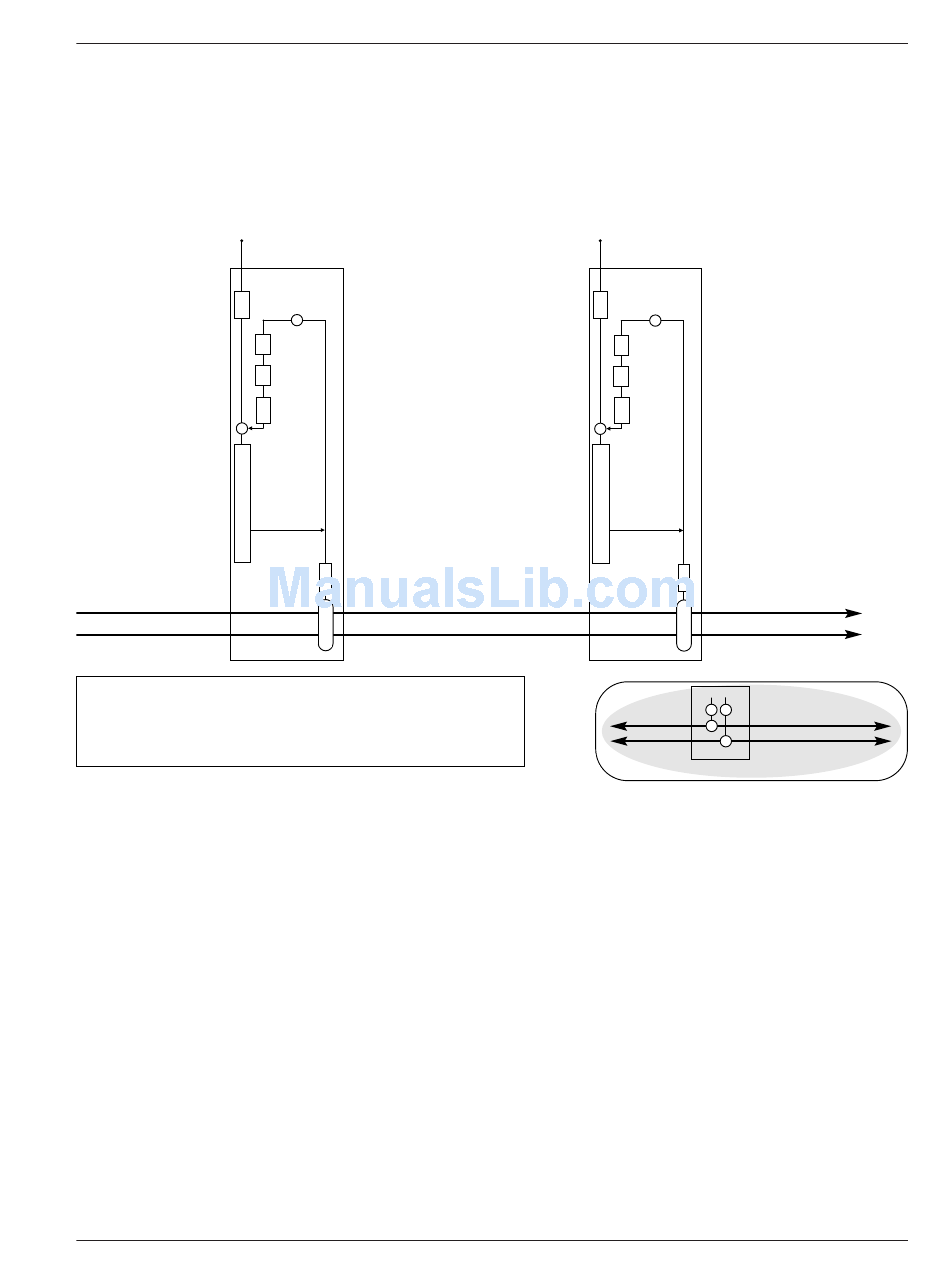

SIMPLE DELAY ALGORITHM

2 Delay Channels, 1 Pannable Delay Voice per Channel, 4 second Maximum Delay
Left in
Dif
HF
Dif
+
D
E
L
A
Y
KEY
Dif. . . . . . . . . . . . . . Diffusion
Fbk . . . . . . . . . . . . . Feedback
Fil . . . . . . . . . . . . . . . . . Filter
Standard Parameters (Global)
Feedback Highpass . . . . . . FbHipass (page 8)
Feedback Lowpass . . . . . . . . . FbRoll (page 8)
Infinite Hold . . . . . . . . . . . . . . Hold (page 9)
Input Diffusion. . . . . . . . . . . . Diffus (page 8)
Master Delay Time . . . . . . . DelMST (page 8)
Master Delay Level. . . . . . . . LvlMST (page 9)
Master Feedback . . . . . . . . FbkMST (page 8)
Mix (not shown). . . . . . . . . . . . Mix (page 9)
Delays & Additional 96kHz Reverbs Package
Channel A Input
x
Fbk
LF
Fil
P
&
L
HF. . . . . . . . . . Highpass Filter
LF . . . . . . . . . . Lowpass Filter
P&L . . . . . . . . . . Pan & Level
Right in
Dif
x
Fbk
HF
LF
Dif
+
D
E
L
A
Y
Fil
P
&
L
Pan & Level
Delay Voice Parameters
Delay . . . . . . . . . . . . . Delay Time (page 10)
Feedback . . . . . . . . . . . . . . . . Fbk (page 10)
Filter . . . . . . . . . . . . . . . . . . . . Filt (page 10)
Level. . . . . . . . . . . . . . . . . . . Gain (page 10)
Master Delay Time (Glbl) . . DelMST (page 8)
Master Delay Level (Glbl) . . . LvlMST (page 9)
Master Feedback (Glbl) . . . . FbkMST (page 8)
Pan X . . . . . . . . . . . . . . . . . . . Pan (page 10)
Channel B Input
Output
Bus
x x
+
+
