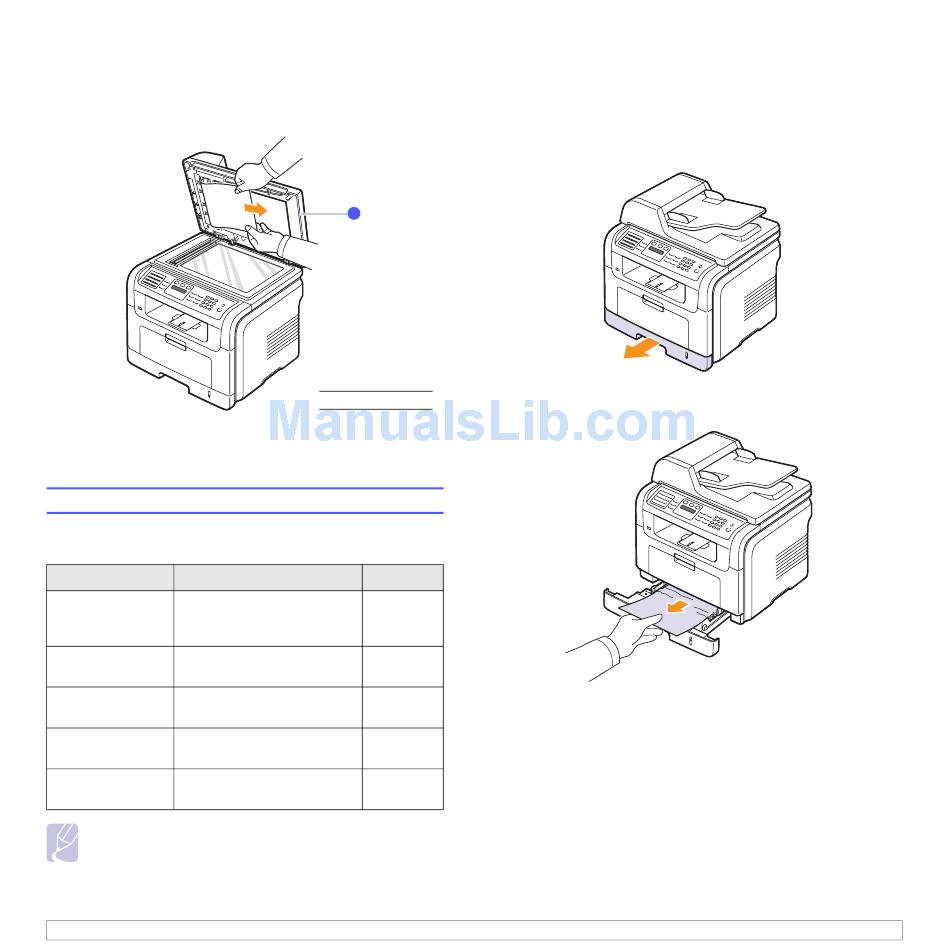

Roller misfeed
1 Open the scanner lid.
2 Seize the misfed paper, and remove the paper from the feed area by
carefully pulling it to the right using both hands.
3 Close the scanner lid. Then load the removed pages back into the
ADF.

Clearing paper jams

When a paper jam occurs, Paper Jam appears on the display. Refer to
the table below to locate and clear the paper jam.
Message Location of jam
[Paper Jam 0] In the paper feed area (tray 1,
Open/Close Door optional tray 2, or multi-
purpose tray)
[Paper Jam 1] In the fuser area or around the
Open/Close Door toner cartridge
[Paper Jam 2] In the paper exit area
Check Inside
[Duplex Jam 0] In the duplex unit
Check Inside
[Duplex Jam 1] Between the duplex unit and
Check Inside fuser area
Note
To avoid tearing the paper, pull out the jammed paper gently
and slowly. Follow the instructions in the following sections to
clear the jam.
1
1 scanner lid
Go to
below and
page 14.3
page 14.3
page 14.4
page 14.5
page 14.6
14.2
<Troubleshooting>
In the tray 1
1 Open and close the front cover. The jammed paper is automatically
ejected from the machine.
If the paper does not exit, go to the next step.
2 Pull the tray 1 open.
3 Remove the jammed paper by gently pulling it straight out.
If the paper does not move when you pull, or if you do not see the
paper in this area, check the fuser area around the toner cartridge.
See page 14.3.
4 Insert the tray 1 into the machine until it snaps into place. Printing
automatically resumes.
