Felton WILLO II W2CSMBN Installation Manual

INSTALLATION GUIDE
WILLO II MAINS PRESSURE SHOWER MIXER
BRUSHED NICKEL W2CSMBN
SYSTEM REQUIREMENTS
Equal High (MAINS) Operating Pressure
Operating Hot Water Temperatures
Operating Cold Water Temperatures
Do not plug outlet when testing.
This mixer is recommended for equal high (mains) pressure water supply only.
To ensure the optimum performance and customer satisfaction please adhere to the following:
• Flush out all pipe work prior to installation.
• Maximum static water pressure: 500kPa. If the water pressure exceeds or is likely to exceed 500kPa, an approved pressure
limiting valve must be fitted.
• Maximum hot water temperature: 60˚C. If the water temperature is likely to exceed 60˚C, an approved tempering valve must be fitted.
• Installation should comply with relevant local authority requirements.
• In accordance with good plumbing practice, filters should be fitted to supply lines to eliminate damage to the ceramic cartridge
from suspended solids.
• AS/NZS 3500.1 states that pressures above 500kPa can cause damage from water hammer, reduce the life of
appliances, taps & fittings, cause excessive noise in the system and recommend that a pressure limiting valve (PLV) be fitted.
Failure to comply with the above will void all warranties.

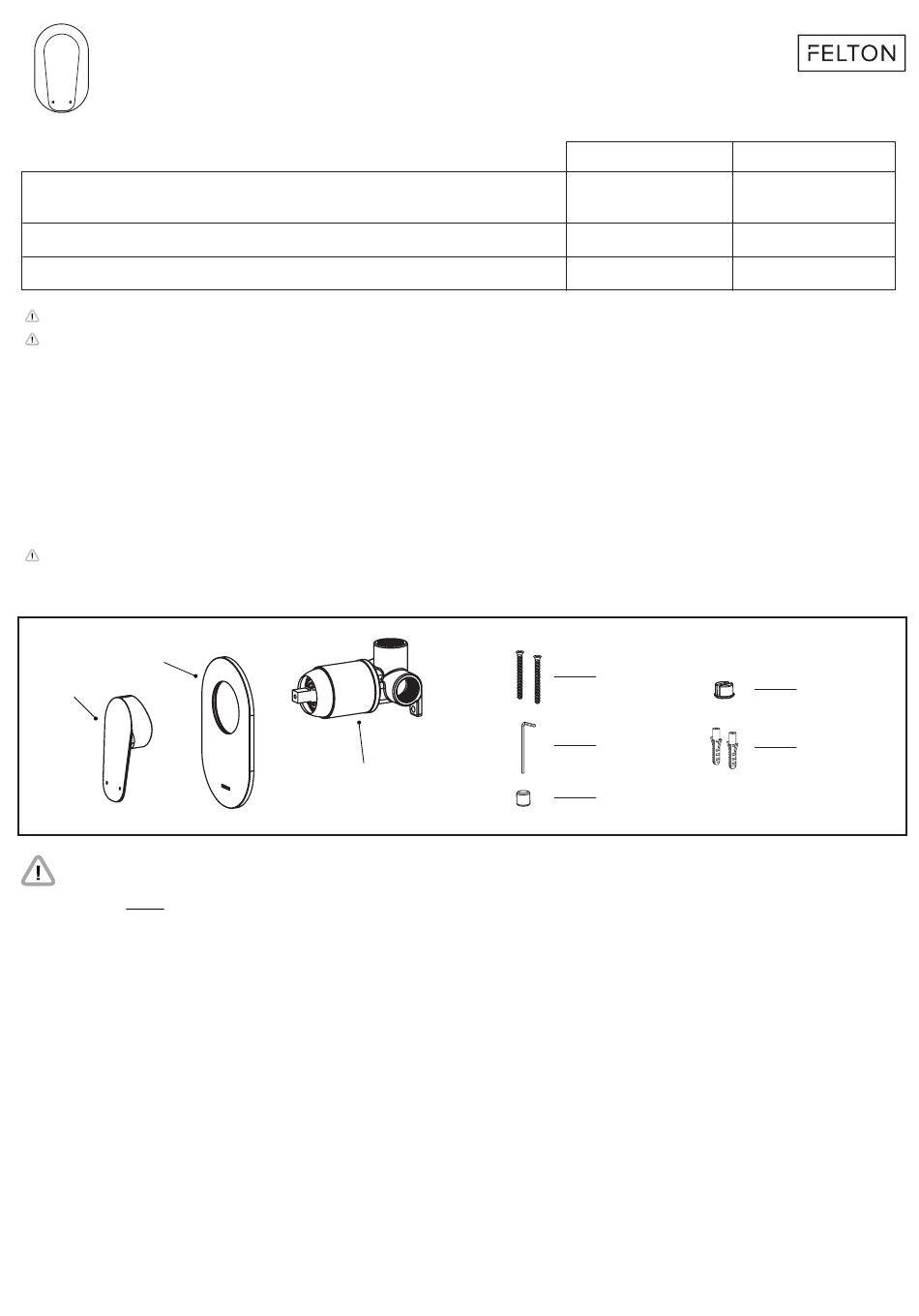

WHAT IS IN THE PACK
Faceplate + O-Ring
Handle
BEFORE INSTALLATION
Pipework MUST be purged before connecting to the mixer
Mixer Assembly
MINIMUM MAXIMUM
150kPa
55° C
5° C
2 x Stainless
Steel Screws
Allen Key
Grub Screw
500kPa
60° C
N/A
Handle Cap
2 x Wall Anchor
