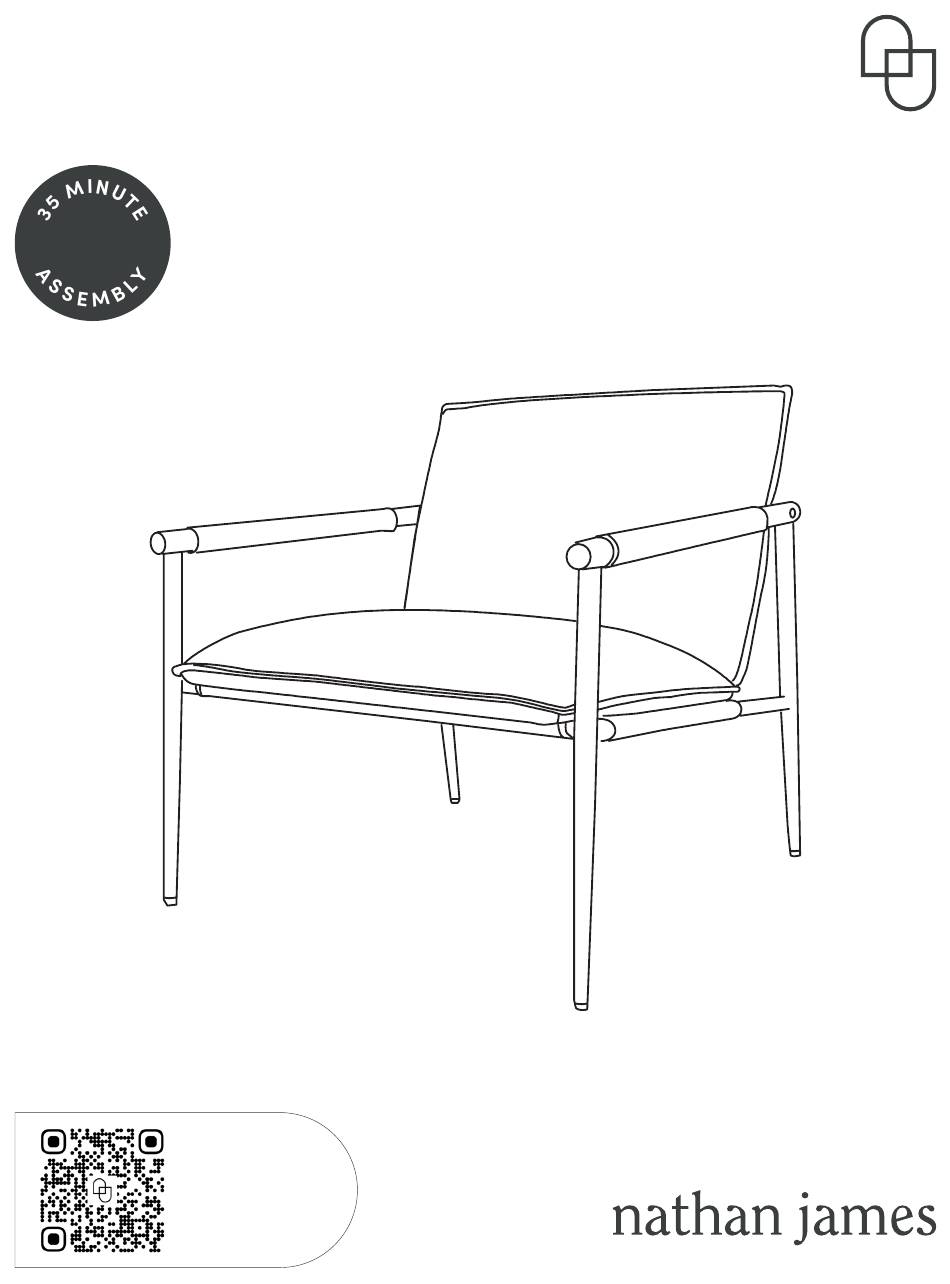

- Page 1 Let’s build the Omel Accent Chair SKU 24702 Scan me! Free Lifetime Warranty 23-0601...
-
Page 2: What's Included
Ok, let’s What’s included get rolling Description Back This should be easy, just follow Seat our instructions and you will be back to Netflix in no time. Right Frame Leg D Left Frame Leg Estimated time for assembly Bottom Frame 35:00 Stretcher What you need... - Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 Step 1 Let’s begin! Attach the Bottom Frame (E) to the Right Frame Leg (C) using the M6 * 15mm Bolt (1) and the Allen Key (7). Pay close attention to the where it says “top”, make sure this is facing upwards when the chair is on its legs.
- Page 5 Step 3 Now attach the Stretcher (F) using FRONT UP M6 * 40mm Bolt (2) and the Allen Key (7). Make sure the text “Front | Up” is facing towards you when you are standing in front of the chair. Tighten screws to 75%.
- Page 6 Step 5 We’re getting closer! Attach the Back (A) to the rest of the chair using the M6 * 40mm Bolt (2) and the Allen key (7). Tighten screws to 75%.
- Page 7 Step 6 Secure the Seat Back (A) to the Seat Cushion (B) by closing the gap, lining up the holes and then fastening the hardware into place. You will use a Flat Washer (5), Spring Washer (6), and M6 * 25mm Bolt (4).
- Page 8 Step 7 Finishing touches! Now secure all velcro components underneath the chair. Step 8 Lastly, tighten on the floor protecters. You did it, have a seat, and enjoy the result of your hard work!
- Page 9 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 10: Proper Use
Any modifications will Nathan James and its parent companies cannot present the risk of creating significant safety issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 11 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
