Summary of Contents for NATHAN JAMES Theo

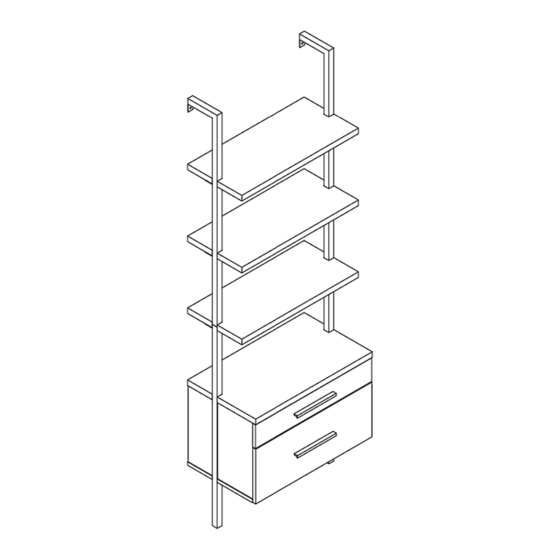

- Page 1 Product name Contact Theo Storage Toll-free at 1-866-619-1004 Bookcase Help@nathanjames.com Nathanjames.com/help...
- Page 2 Ok, let’s get rolling What’s included This should be easy, just follow Code Description our simple instructions and you will be back to Netflix in no time. Left side frame base support Bookcase frame support (top with wall Estimated time for assembly mount) 40:00 Right side frame base support...
- Page 3 What’s included Code Description Back panel of upper drawer Left side panel of bottom drawer Right side panel of bottom drawer Back panel of bottom drawer Bottom panel of drawer Back panel of cabinet Bookcase shelves...
- Page 4 The goods...
- Page 5 What’s included Code Description Code Description M6*15MM bolt M6*30MM wall anchors M6*35MM bolt M8*30MM wooden dowel M6*30MM cam bolt M3.5*12MM screw Handle Φ15*9.5 MM cam lock M4*40MM screw Allen key M4X20MM bolt Drawer runner set M4.2*32MM screw...
- Page 6 The goods Left drawer runner Right drawer runner Left cabinet member Right cabinet member 12” 12” 12” 12” 13. Drawer runner x 2 sets IMPORTANT: 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2.
- Page 7 Step 1 Lay down the packaging carton or use carpet as a working surface and let’s fire this thing up! Step 2 Attach the wooden dowels.
- Page 8 Step 3 Now attach the side panels to the top panel. You’re doing great! Step 4 Slide the back panel in the grooves until fitted securely.
- Page 9 Step 5 Screw in bottom panel of cabinet.
- Page 10 Step 6 Attach the cabinet members to the sides of the drawers, paying careful attention to screw them in the correct way! 3 10 3 10 3 10 3 10 3 10 Front Back 3 10 3 10 3 10 Front Back...
- Page 11 Step 7 Screw in part D to part B for both sets. Step 8 Screw in the left and right side base frame supports. Now we’re cookin’!
- Page 12 Step 9 Line up the bookcase shelves (part V) and the side supports and screw together tightly. Heads up: the next step you’ll need some help from a friend so start thinking of who you’re going to ask now! Also start thinking about what pizza toppings you’re going to order when this is all said and done!
- Page 13 Step 10 Grab a friend and have them help you lift the bookcase right side up!
- Page 14 Step 11 Ok, we will admit this is our least favorite step, also. But, it’s worth the possible 20-second meltdown because everything will look SO clean at the end!
-
Page 15: Phillips Screwdriver
Mark it Chose your desired location on the wall, have your friend hold the bookcase in place and use a pencil to mark where the anchor will go. 1/4 Drill bit Move bookcase to the side and following the mark you just made. - Page 16 Step 12 Time to assemble the drawers! If you’re feeling faint, now’s the perfect time to grab a La Croix or drink of choice to get you through the last two steps.
- Page 17 Step 13 Attach the drawer runners to the inside of the cabinets. This will allow them to open and close smoothly! 10 10 Left drawer runner Right drawer runner 13. Drawer runner x 2 sets...
- Page 18 Step 14 Last but not least, slide the drawers into the bookcase. This calls for pizza! You deserve it!
- Page 19 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 20: Proper Use
Use this bookcase responsibly with the primary concern for your safety. Follow assembly instructions carefully and inspect product upon receipt and each use. Nathan James and its parent companies cannot be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 21 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon - Founder, Nathan James...
