Summary of Contents for NATHAN JAMES Jenny 34505

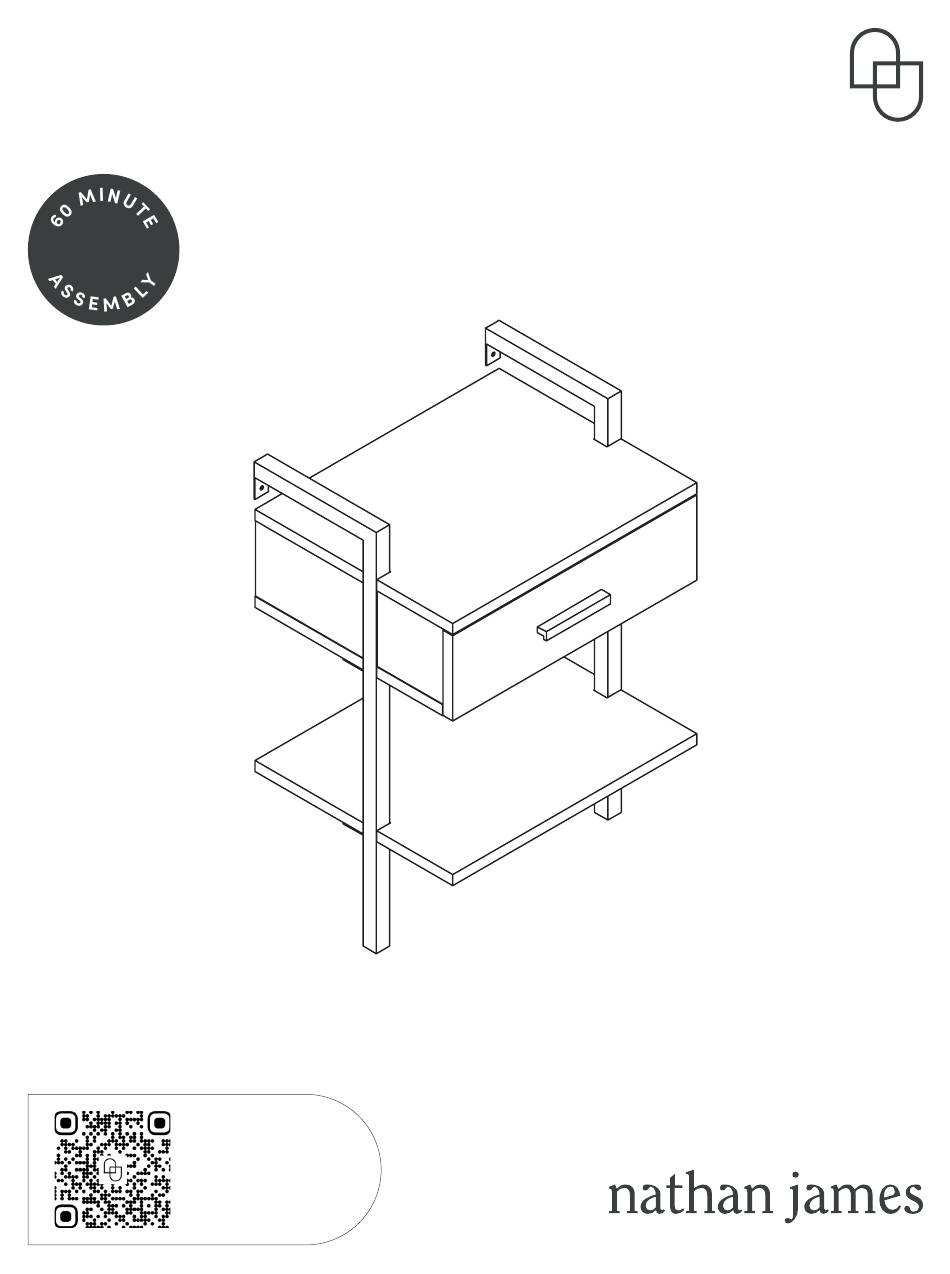

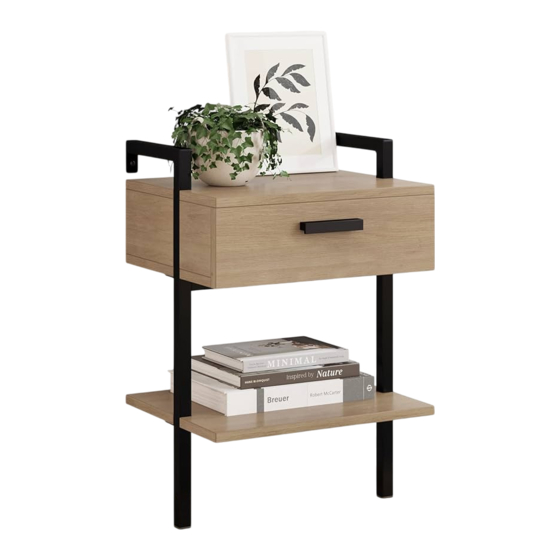

- Page 1 Let’s build the Jenny Side Table SKU 34505 Scan me! Inspiration Digital Instructions Free Lifetime Warranty 22-0111...
- Page 2 Ok, let’s What’s included get rolling Description Top Panel This should be easy, just follow Bottom Panel our instructions and you will be back to Netflix in no time. Shelf Panel Left Side Panel Estimated time for assembly 60:00 Left Side Panel Right Side Panel What you need Right Side Panel...
- Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 What’s included Description M6*15 mm Bolt Cam Bolt Cam Lock Wooden Dowel Handle M4.2*40 mm Screw M4*23 mm Bolt M3.5*12 mm Screw M4.2*32 mm Screw for Non-drywall Anchor M4.2*50 mm Screw for Drywall Anchor Non-drywall Anchor Drywall Anchor Plastic Pad Allen Key Drawer Runner Set...
- Page 5 The goods left drawer runner right drawer runner left cabinet rail right cabinet rail...
- Page 6 Step 1 Let’s get this thing fired up! We’ll start with the Cam Locks (2) and Wooden Dowels (4). Insert the Wooden Dowels (4) into the sides of the Left Side Panels (D)(E) and Right Side Panels (F)(G). Screw the Cam Bolts (2) into the Top Panel (A) and Drawer Front Panel (M). Step 2 Now let’s put those pieces together! Align the Left Side Panels (D)(E)
- Page 7 Step 3 Now it’s time to assemble Front Back the Cabinet Rails (15). We’ll be using the rails labeled CL and CR. Attach the CL rail using M3.5*12 mm Screws (8). Be sure that the wheel of Back the rail is facing the front of the cabinet.
- Page 8 Step 4 Attach the Bottom Panel (B) to the cabinet you built in the previous steps with M4.2*40 mm Screws (6). Step 5 You’re doing great! Now it’s time to start on the drawer. Attach the Left Drawer Side Panel (N) and the Right Drawer Side Panel (O) to the Drawer Back Panel (L) using M4.2*40 mm Screws (6).
- Page 9 Step 6 Slide the Drawer Bottom Panel (J) into the drawer base you created in the last step. Step 7 Time to finish up this drawer. Attach the Handle (5) to the Drawer Front Panel (M) with M4*23 mm Bolts (7). Next, attach the Drawer Front Panel (M) and lock into place with Cam Locks (3).
- Page 10 Step 8 Time to attach the Drawer Runners (15). We’ll be attaching the runners labeled DL and DR. Attach DL underneath the drawer on the left side with M3.5*12 mm Screws (8). Be sure the wheel of the rail is facing the back of the drawer. Repeat this process with the right side rail labeled DR.
- Page 11 Step 10 Slide the completed drawer into the cabinet. Cabinet Slide Drawer Slide Step 11 Attach Plastic Pads (13) to each corner of the back of the drawer.
- Page 12 Step 12 You made it to the last step! We’re so proud of you. Time to attach this baby to the wall! We’ll be using screws and anchors to secure it. See the following pages for detailed instructions on how to do this. Please note…...
- Page 13 Step 12 (cont.) Non-drywall application Mark it Chose your desired location on the wall, have your friend hold the table in place and use a pencil to mark where the anchors will go. 1/4” Drill bit Move the table to the side and following the marks you just made, with a 1/4”...
- Page 14 Step 12 (cont.) Drywall application Mark it Chose your desired location on the wall, have your friend hold the table in place and use a pencil to mark where the anchors will go. 5/16” Drill bit Move the table to the side and following the marks you just made, with a 5/16”...
- Page 15 Step 12 (cont.) How to use drywall anchors 1. Drill hole with 5/16” bit 2. Pinch and insert 3. Begin tightening 4. Tighten to 100%...
- Page 16 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 17: Proper Use
Any modifications will present the risk of creating significant safety Nathan James and its parent companies cannot issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 18 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
