Summary of Contents for NATHAN JAMES Wesley 74401

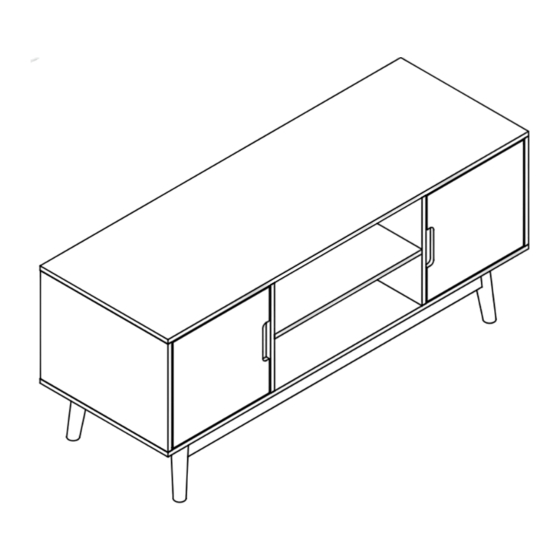

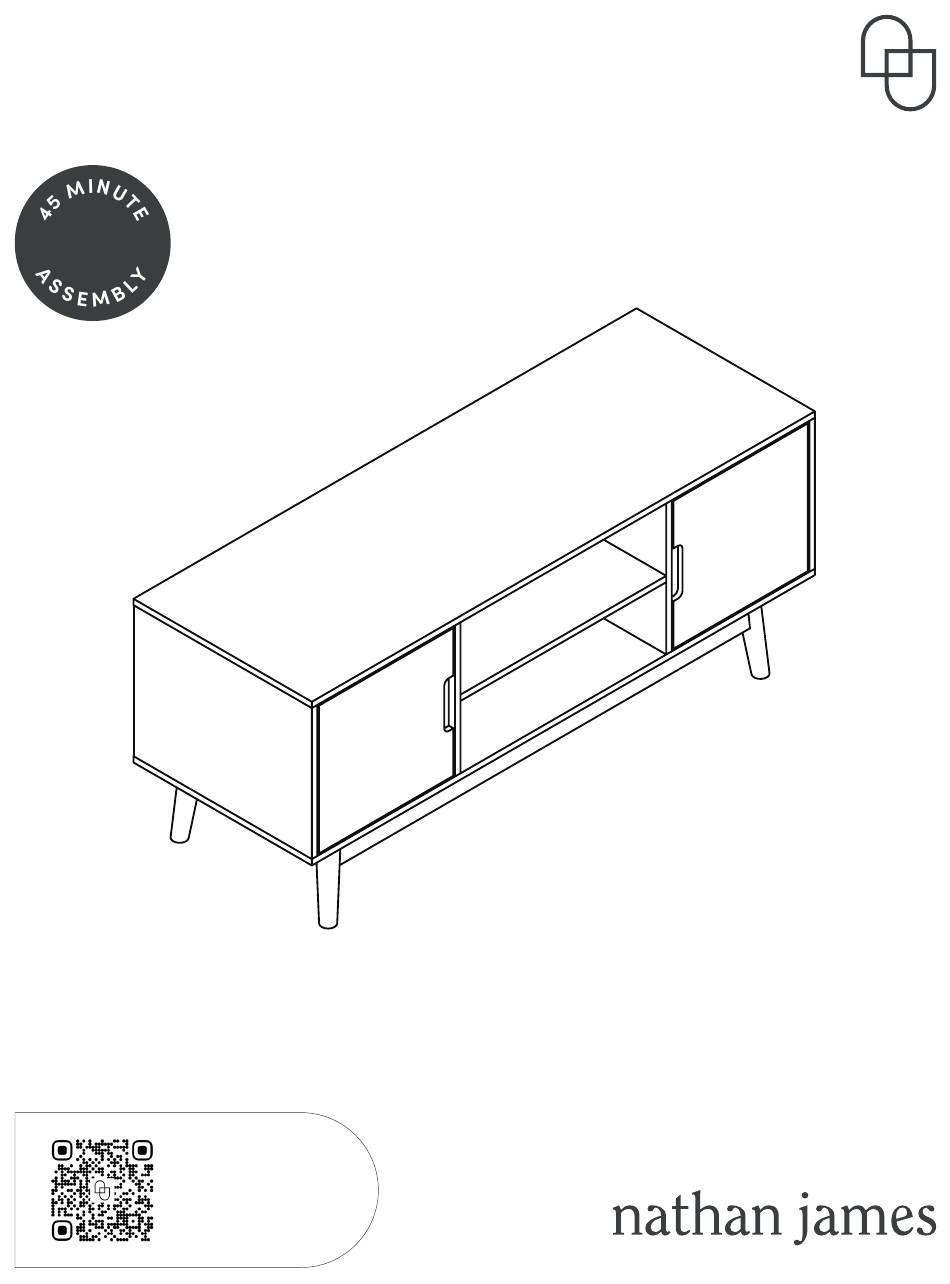

- Page 1 Let’s build the Wesley Media Console SKU 74401 Scan me! Free Lifetime Warranty 23-0323...
- Page 2 Ok, let’s What’s included get rolling Description Cam Bolt M6X35MM This should be easy, just follow our instructions and you will be Cam Lock M15X10MM back to Netflix in no time. Screw M4x35MM Estimated time for assembly D Screw M4x40MM 45:00 Screw M4x25MM What you need...
- Page 3 The goods IMPORTANT 1. Do not tighten bolts / screws completely until all bolts / screws are lined up and inserted into holes. 2. Do not over tighten screws and bolts to avoid stripping. 3. Please use hand tools to assemble this product. Do not use power tools.
- Page 4 What’s included Description Top Panel Bottom Panel Left Side Panel Right Side Panel Back Panel Middle Shelf Left Cabinet Panel Right Cabinet Panel Left Cabinet Door Right Cabinet Door Feet Front & Back Apron Panels Apron Side Panels Apron Corner Supports...
- Page 5 The goods...
- Page 6 Step 1 Helpful Tip: The zig-zag pattern How much wood could a indicates an unfinished panel edge. woodchuck chuck?…I apologize, please insert Wooden Dowels (H) into the Side Panels (3)(4)(6)(7)(8).
- Page 7 Step 2 Let’s get the shelf set up, you’re doing great! First, attach the Left Cabinet Panel (7) to the Middle Shelf (6) using the M4x35mm Screws (C). Then attach the Right Cabinet Panel (8) to the other side of the Middle Shelf (6) using the M4x35mm Screws (C). Be sure both cabinet panels align to the holes and dowels in the Middle Shelf.
- Page 8 Step 3 Next, flip the shelf assembly (7 + 6 + 8) onto its front face; finished edges face down with cord holes at the top. Line up the Bottom Panel (2) with the shelf assembly (7 + 6 + 8) with its front facing down;...
- Page 9 Step 4 If you were able to believe in Santa for 8 years, you can believe in yourself to finish this assembly. Now let’s get to inserting some Cam Bolts! Insert the Cam Bolts (A) into the appropriate holes in the Top Panel (1).
- Page 10 Step 6 Flip the unit up onto the bottom panel, then slide the Back Panel (5) into place. This next step will take a bit of patience and coordination. First, line up the holes and hardware components between the Top Panel (1) and the rest of the unit.
- Page 11 How to use Did you know? Cam locks are used to join two panels together, cam locks usually the edge of one to the flat side of another. First, your cam bolt (or cam pin) will need to be properly inserted into the flat side of the board. Important Note: Only tighten the cam bolt until it is secure.
- Page 12 Step 7 If not pizza, then Uber Eats? You’ve worked hard enough today. Using the Wood Dowels (H), fit the Front and Back Apron Panels (12) and Apron Side Panels (13) into place on the Bottom Note: The hole position Panel (2).
- Page 13 Step 8 Secure the apron to the body of the TV stand using the M4x40mm Screws (D).
- Page 14 Step 9 Secure the Apron Corner Supports (14) to the apron.
- Page 15 Step 10 Last but not least, attach the Legs (11) using the M6x60mm Bolts (F). Use the Allen Key (I) to tighten. You’re done! Time to go enjoy your well-deserved slice and Netflix episode!
- Page 16 No heartburn, when we handle the return Give us a call 1-866-619-1004 or shoot us a message at help@nathanjames.com we will issue you a free replacement with zero hassle. Our way Their way Give us a call Re-package item Replacement Schedule pick up Track package Replacement...
-
Page 17: Proper Use
Any modifications will present the risk of creating significant safety Nathan James and its parent companies cannot issues which NJ will not be responsible for. be held legally responsible for any injuries or death resulted from failure to follow instructions or improper use of this product. - Page 18 If you are happy with your product, tell your friends and family about us or even better leave us a review online. Spreading the word gives us the opportunity to make more people happy and keep our prices low for your next purchase. Brooklyn Burdon Founder, Nathan James...
